User manual for the Allen & Heath Xone:464 - Professional Club Mixer XONE3:464

The user manual for the Allen & Heath Xone:464 - Professional Club Mixer XONE3:464 provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - DJ Mixers.

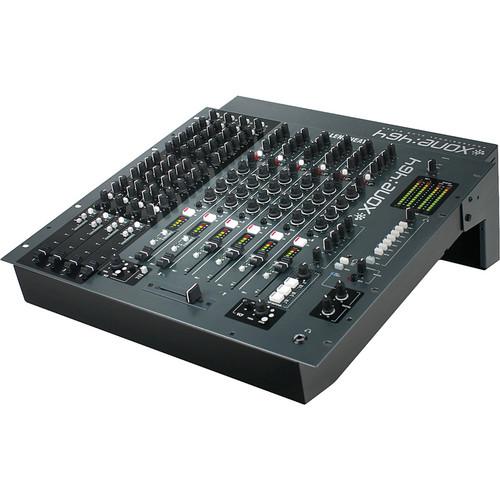

The Xone:464 - Professional Club Mixer was the first model of its kind by Allen & Heath. This dedicated club mixer features never-before-seen sound and build quality, designed to please both sound techs and performing DJs.

The Xone:464 shares the same solid construction as Allen & Heath's pro touring desks, combining versatility and craftsmanship. The 4 fully-featured mic/line inputs join 6 stereo inputs, bringing extensive connectivity to the dance club environment. Every channel on the Xone:464 features a 4-band asymmetric EQ and 6 Aux Sends, pre-fader cue, and two kinds of input connectors.

Each of the four mic/line channels features TRS and XLR inputs with individually switchable +48V Phantom Power. Additionally, a 100 Hz high-pass filter, -30dB pad, on/mute switch, pan knob, and long-throw 100 mm faders make these channels easy to optimize for any mono source. Mic/line channels can be assigned to either (or both) of the Xone:464's main output busses.

The 6 stereo channels can handle any audio device you want to hook up. The Xone:464 has connections for up to four RIAA-equalized RCA inputs, four standard RCA inputs, and four stereo TRS inputs. You could connect two turntables, two CD decks, and a laptop with attached MIDI controller … and you'd still have a free stereo channel. The channels are each individually assignable to either side of the crossfader, or not at all. 60mm faders allow for super fast volume manipulation, while EQ on/off switches allow you to create on-the-spot effects and drop them in an instant.

The 45mm Penny & Giles crossfader has an entire section of controls conducive to creative sound manipulation. The curve of the crossfade can changed, panned, and routed to Aux busses. Each side has an independent VCF (voltage controlled filter) section with an on/off switch and a frequency sweep control. A set of global controls allow further manipulation of VCF functions.

The Xone:464 has two main output busses, Mix1 and Mix2. The mono mic/line channels can be individually routed to either (or both), whereas the stereo channels are fixed to Mix1. Both mixes feature XLR and RCA outputs with a set of post-fader mix inserts. An additional mono output with both XLR and 1/4" TRS outputs can be assigned from either mix using a rear panel switch. These are ideal for feeding a subwoofer, additional mono zone, or sound-to-light system. The 6 Aux busses can combine all channels in any desired submix and externally routed via 1/4" TRS connectors.

The Allen & Heath Xone:464 offers functional and creative tools in equal parts to bring out the best in any DJ.
If you own a Allen & Heath dj mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Allen & Heath Xone:464 - Professional Club Mixer XONE3:464 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Allen & Heath Xone:464 - Professional Club Mixer XONE3:464:
Specifications
    Inputs
    Input Connections Balanced XLR x4
    Balanced TRS mono x4
    RCA pair RIAA x4
    RCA pair x4
    Balanced TRS stereo pair x4
    EXT In, Balanced TRS pair x1
    Phantom Power +48V individually switchable, channels 1-4
    Input Pad Switch -30 dB
    Input Impedance XLR: 2k ohm
    XLR pad in: > 10k ohm
    TRS mono: > 10k ohm
    RCA pair RIAA: 47k ohm / 330 pF
    RCA pair: > 10k ohm
    TRS stereo pair: > 10k ohm
    EXT In, Balanced TRS pair: > 10k ohm
    Input Level Range XLR: -60 to -20 dBu
    XLR pad in: -30 to +10 dBu
    TRS mono: -30 to +10 dBu
    RCA pair RIAA: 2 to 100 mV
    RCA pair: -10 to +10 dBu
    TRS stereo pair: -10 to +10 dBu
    EXT In, Balanced TRS pair: -10 dBV (+4 dBu option)
    Inserts Mono Channels: Unbalanced TRS
    Send: < 75 ohm; Return: 3k ohm @ 0 dBu

    MIX Inserts: Unbalanced TRS
    Send: < 75 ohm; Return: 3k ohm @ -2 dBu
    Outputs
    Output Connections DIR out 1-4: Balanced TRS mono
    MIX out 1,2: Balanced XLR stereo pairs
    MIX out 1,2: RCA stereo pairs
    MONO MIX out: Balanced XLR
    MONO MIX out: Balanced TRS
    AUX out 1-6: Balanced TRS
    LOCAL MON out: Balanced TRS
    Output Level and Impedance DIR out TRS 1-4: < 75 ohm; 0 dBu
    MIX out XLR 1,2: < 75 ohm; +4 dBu
    MIX out RCA 1,2: < 75 ohm; -10 dBV
    MONO MIX out XLR: < 75 ohm; +4 dBu
    MONO MIX out TRS: < 75 ohm; -2 dBu
    AUX out TRS 1-6: < 75 ohm; -2 dBu
    LOCAL MON out TRS: < 75 ohm; -2 dBu
    Headphone Connectors 1/4" Stereo Jack x2
    30 to 600 ohm recommended
    Performance
    Maximum Output Level XLR: +26 dBu into > 2k ohm load
    TRS: +21 dBu into > 2k ohm load
    RCA: +15 dBu into > 10k ohm load
    Headroom Channels: +21 dB
    Mix to output: +23 dB
    Clip LED Threshold 9dB before clipping
    Metering Type MIX1 / MONITOR
    Peak reading, 12 LED, 3 color
    Frequency Response 20 Hz to 40 kHz, +0/-1 dB
    THD + Noise < 0.006%; +14 dBu @ 1 kHz
    Crosstalk < 90 dB @ 1kHz
    EIN -128 dB, referred to 150 ohm source
    Residual Output Noise XLR: -90 dBu (-94 dB S/N)
    TRS: -84 dBu (-84 dB S/N)
    RCA: -92 dBu (-84 dB S/N)
    Mix Output Noise XLR: -86 dBu (-90 dB S/N)
    TRS: -83 dBu (-83 dB S/N)
    RCA: -91 dBu (-83 dB S/N)
    Power Supply
    Type Internal switch mode power unit with auto sensing mains input
    AC Power Supply Input Socket IEC 3 pin
    Power lead country dependent
    AC Voltage Input Range 100 to 240V AC @ 50/60 Hz
    Power Consumption 30W max
    Fuse Rating 100 - 240 VAC, T500 mA, 20 mm
    General
    Dimensions (WxDxH) Desktop:
    19 x 20.9 x 7.6" (483 x 530 x 192 mm)
    10U Rackmounted:
    19 x 17.5 x 5.3" (483 x 444 x 135 mm)
    Weight 22 lbs (10 kg)
