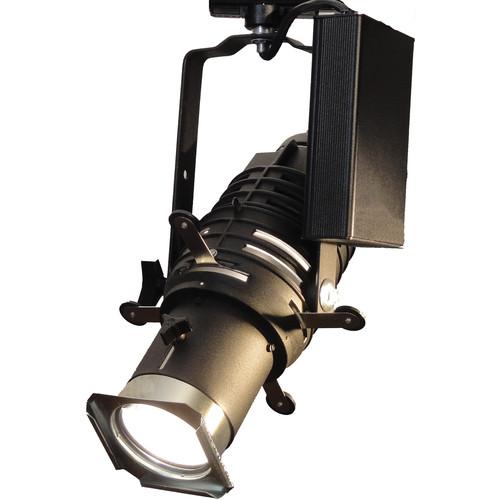

The White, 38° 3.5C CDM/CMH Ellipsoidal Spotlight from Altman is a 70W CDM profile ellipsoidal spotlight that produces a high intensity sharp or soft edged beam. The design of this luminaire gives this small framing projector the character and performance that many architectural applications require. The specially designed and bright finished metal reflector maximizes light output and is specifically designed for use with 150W ceramic discharge metal halide lamps. The instrument accepts an optional pattern holder for metal templates.
If you own a Altman architectural lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Altman 3.5C CDM Ellipsoidal Spotlight 3.5C-6-70-W in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Altman 3.5C CDM Ellipsoidal Spotlight 3.5C-6-70-W:
Specifications
Construction
Die-cast aluminum and sheet steel construction
Lamps
For use with 150 W 12,000 hour CDM/CMH lamps
Watts
70 W
Lens
Pyrex glass
Reflector
Alzak aluminum, ellipsoidal design
Beam Angle
38°
Yoke
Rigid flat steel with dual handles
Cable
Three 36" Teflon leads in black fiberglass sleeving
Focusing
Locking heat-resistant knob
Finish
White epoxy sandtex electrostatic application.
Approvals
ETL, cETL
Power
120-240 VAC, 50/60 HZ, 4.8-2.4 A
Dimensions
13.1-14.4 x 9.0 x 13.5" (33-37 x 23 x 34 cm) with shutter blades and yoke extended Color frame: 4.1 x 4.1" (104.7 x 104.7 mm)
Weight
Light: 9 lb (4.1 kg) Ballast: not specified by manufacturer
