User manual for the Altman Outdoor Spectra Cyc 100 3K White LED Wash SSCYC-OD-3K-B
The user manual for the Altman Outdoor Spectra Cyc 100 3K White LED Wash SSCYC-OD-3K-B provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Architectural Lights.

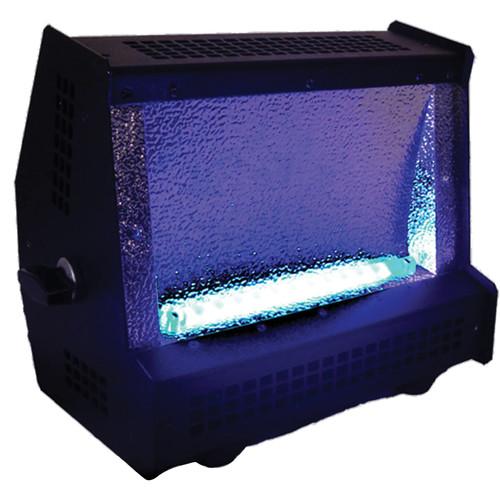

The black Outdoor Spectra Cyc 100 3K White LED Wash Light from Altman is a 100W cyclorama/wall wash lighting fixture that features 3,000K Luxeon Rebel 3W white LEDs as well as an IP65 weather resistance rating for outdoor use. The Spectra Cyc also utilizes an asymmetrical aluminum reflector to broadly and evenly disperse the light as well as an LED blending lens to reduce the effects of pixelization from direct view. The light also has pre-programmed modes for adjusting dimming from 0-100% as well as setting up a strobe mode.
Connecting the fixture to your setup is simple with male and female 5-pin XLR ports, these let you transfer data through a series of daisy-chained lights. There is also a powerCON AC out port for feed-through power for up to 20 connected lights. Other features of the Spectra Cyc 100 are push button addressing, convention cooling to keep operation quiet, and a universal 100-240 built-in VAC power supply. It comes with a 6' power cable and is made in the USA.
|
If you own a Altman architectural lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Altman Outdoor Spectra Cyc 100 3K White LED Wash SSCYC-OD-3K-B in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Altman Outdoor Spectra Cyc 100 3K White LED Wash SSCYC-OD-3K-B:
| Type | Wash light | | LEDs | 3 W Luxeon Rebel White LEDs | | LED Lifetime | 50,000 hours | | Color Temperature | 3,000 K | | Power Draw | 100 W max | | Photometrics | Output
At 1.7' (0.5 m): 52.2 fc
At 3.3' (1.0 m): 13.0 fc
At 5.0' (1.5 m): 5.8 fc
At 6.7' (2.0 m): 3.3 fc
At 8.3' (2.5 m): 2.1 fc
At 10' (3.0 m): 1.5 fc
Beam Width, Vertical (38°)
At 1.7' (0.5 m): 1.1' (0.3 m)
At 3.3' (1.0 m): 2.3' (0.7 m)
At 5.0' (1.5 m): 3.4' (1.0 m)
At 6.7' (2.0 m): 4.6' (1.4 m)
At 8.3' (2.5 m): 5.7' (1.7 m)
At 10' (3.0 m): 6.9' (2.1 m)
Beam Width, Horizontal (82°)
At 1.7' (0.5 m): 2.9' (0.9 m)
At 3.3' (1.0 m): 5.8' (1.8 m)
At 5.0' (1.5 m): 8.7' (2.7 m)
At 6.7' (2.0 m): 11.6' (3.5 m)
At 8.3' (2.5 m): 14.5' (4.4 m)
At 10' (3.0 m): 17.4' (5.3 m) | | Construction | 18-Gauge steel
Aluminum
TGIC polyester finish for electrostatic applications | | Dimming | 0-100% | | Cooling | Convection | | Compatibility | DMX512
RDM | | Ports | 1 x Male 5-pin XLR
1 x Female 5-pin XLR
1 x powerCON AC out for feed through (up to 20 Spectra Cyc units) | | Cable | 6' (1.8 m) powerCON in to standard connector | | Mount | Steel yoke | | Ingress Protection Rating | IP65 | | Environmental Conditions | Temperature: -4 to 140°F (-20 to 60°C) | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Certifications | ETL
cETL
CE | | Dimensions | 12.6 x 15.3 x 9.9" (32.1 x 38.7 x 24.8 cm) | | Weight | 22 lb (10 kg) | |
