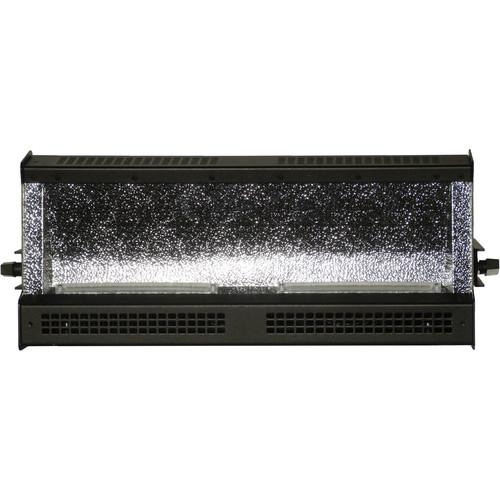

Click to enlarge image

We recommend checking out our discussion threads on the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B, which address similar problems with connecting and setting up LED Lights Altman.



User manual for the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B

The user manual for the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

The black Spectra Cyc 200 3K White LED Wash Light from Altman is a 200W cyclorama/wall wash lighting fixture that features 3,000K Luxeon Rebel white LEDs. The Spectra Cyc also utilizes an asymmetrical aluminum reflector to broadly and evenly disperse the light as well as an LED blending lens to reduce the effects of pixelization from direct view. The light also has pre-programmed modes for adjusting dimming from 0-100% as well as setting up a strobe mode.
Connecting the fixture to your setup is simple with male and female 5-pin XLR ports, these let you transfer data through a series of daisy-chained lights. There is also a powerCON AC out port for feed-through power for up to 20 connected lights. Other features of the Spectra Cyc 200 are push button addressing and a universal 100-240 VAC built-in power supply. It comes with a 5' power cable and is made in the USA.
If you own a Altman led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-BDownload user manual for Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B
(PDF file, 0.45 MB)
Additional parameters of the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B:
Type Wash light
LEDs Luxeon Rebel White LEDs
LED Lifetime 50,000 hours
Color Temperature 3,000 K
Power Draw 200 W max
Beam Spread Vertical: 40°
Horizontal: 80°
Output Maximum: 2,680 lumens
Construction 18-Gauge steel
Aluminum
TGIC polyester finish for electrostatic applications
Dimming 0-100%
Compatibility DMX512
RDM
Ports 1 x Male 5-pin XLR
1 x Female 5-pin XLR
1 x powerCON AC out for feed through (up to 20 Spectra Cyc units)
Cable 5' (1.5 m) powerCON in to standard connector
Mount Optional steel yoke
Ingress Protection Rating IP20
Environmental Conditions Temperature: -4 to 140°F (-20 to 60°C)
Operating Voltage 100-240 VAC, 50/60 Hz
Certifications ETL
cETL
CE
Dimensions 14.0 x 25.0 x 7.5" (35.6 x 63.5 x 19.1 cm)
Weight 18 lb (5 kg)
The user manual for the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Altman users keep a unique electronic library for Altman led lightss, where you can use our link to download the user manual for the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B.

The user manual lists all of the functions of the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Altman service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Altman Spectra Cyc 200 3K White LED Wash Light SSCYC200-3K-B. User manuals are also available on the Altman website under Lighting & Studio - Continuous Lighting - LED Lights.
