User manual for the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10

The user manual for the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

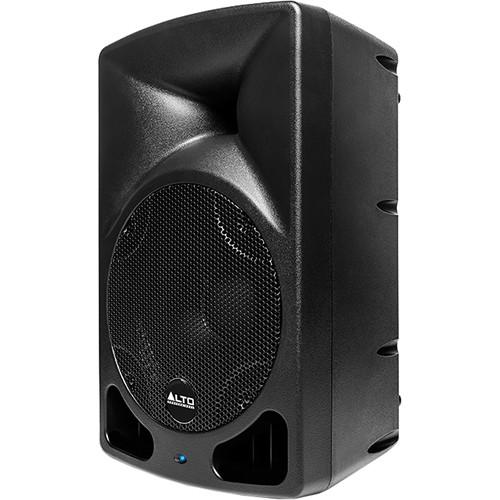

The Alto TX10 280-Watt 10" 2-Way Active Loudspeaker is designed for spoken word and music live sound reinforcement applications, such as for mobile DJ PA systems, gymnasiums, houses of worship, bars, restaurants, and small clubs among others. The speaker utilizes a a bi-amplified ported design with a class D amplifier that delivers 280 Watts peak (140 Watts continuous) into a 10" low-frequency woofer with a 2" voice coil electronically crossed over at 2.5 kHz to a 1" titanium diaphragm neodymium high frequency compression driver with a 1" voice coil. This combination delivers a frequency response of 75 to 20,000 Hz and a maximum SPL of 116 dB at 1 m.

The speaker provides 90° horizontal by 45° vertical coverage with thermal, overload, analog limiting, and power compression protection circuitry with LED indicators for power and clipping. Inputs are provided by balanced XLR combo mic/line inputs. Additional speakers can be connected to the signal using the rear panel output and onboard contour controls allow you to adjust the response of the speaker to your room.

For portability, the speaker box is made of lightweight injection-molded polypropylene with built-in handles, metal grills, and rubber feet. It's trapezoidal shape allows it to be used as either a floor monitor or a main. An integrated 36mm pole socket allows you to mount the speaker on a tripod stand or atop a subwoofer with a speaker pole. The speaker is designed in the USA.
If you own a Alto pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Alto TX10 280-Watt 10Download user manual for Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10
(PDF file, 13.23 MB)
Additional parameters of the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10:
Specifications
    Connector XLR/TRS combo Mic/Line input
    XLR output
    System 2-way active ported speaker
    LF Driver Size 10" woofer, 2" voice coil
    HF Driver Size 1" titanium diaphragm, 1" voice coil
    Amplifier Class DSMPS, 600 watts peak
    Coverage 90°H x 45°V
    Frequency Response At -3 dB: 75 to 20,000 Hz
    Crossover Frequency 2.5 kHz
    Max SPL Level 116 dB at 1 m
    External Control Volume control
    Contour
    Power ON with green LED
    Clip Limiter with red LED
    Protection Circuits Thermal
    Overload
    Analog Limiter
    Compressor
    Power Supply 120 to 240 V at 50/60 Hz
    Enclosure Injection-molded polypropylene enclosure, multi-angle for main or monitor applications with metal grille, rubber, feet, and two handles
    Mounting 36 mm standard pole mount
    Dimensions (H x W x D) 18.1 x 11.2 x 10.4" (46.0 x 28.5 x 26.5 cm)
    Weight 15.26 lb (6.92 kg)
    Packaging Info
    Package Weight 18.0 lb
    Box Dimensions (LxWxH) 20.25 x 14.0 x 13.48"
    The user manual for the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Alto users keep a unique electronic library for Alto pa speakerss, where you can use our link to download the user manual for the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10.

    The user manual lists all of the functions of the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Alto service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Alto TX10 280-Watt 10" 2-Way Active Loudspeaker TX10. User manuals are also available on the Alto website under Pro Audio - Live Sound - PA Speakers.
