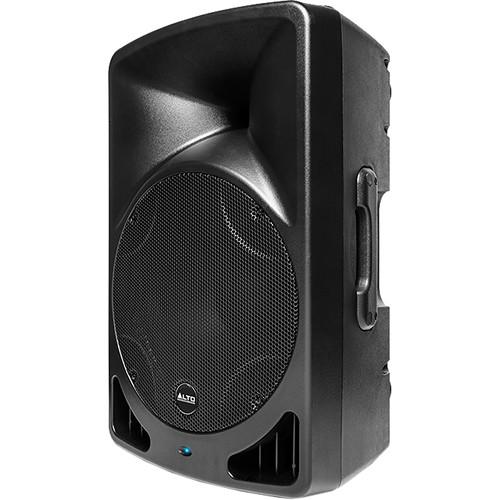

The Alto TX15 600-Watt 15" 2-Way Active Loudspeaker is designed for spoken word and music live sound reinforcement applications, such as for mobile DJ PA systems, gymnasiums, houses of worship, bars, restaurants, and small clubs among others. The speaker utilizes a a bi-amplified ported design with a class D amplifier that delivers 600 Watts peak (300 Watts continuous) into a 15" low-frequency woofer with a 2" voice coil electronically crossed over at 2.2 kHz to a 1" titanium diaphragm neodymium high frequency compression driver with a 1" voice coil. This combination delivers a frequency response of 65 to 20,000 Hz and a maximum SPL of 119 dB at 1 m.
The speaker provides 90° horizontal by 45° vertical coverage with thermal, overload, analog limiting, and power compression protection circuitry with LED indicators for power and clipping. Inputs are provided by balanced XLR combo mic/line inputs. Additional speakers can be connected to the signal using the rear panel output and onboard contour controls allow you to adjust the response of the speaker to your room.
For portability, the speaker box is made of lightweight injection-molded polypropylene with built-in handles, metal grills, and rubber feet. It's trapezoidal shape allows it to be used as either a floor monitor or a main. An integrated 36mm pole socket allows you to mount the speaker on a tripod stand or atop a subwoofer with a speaker pole. The speaker is designed in the USA.
|
If you own a Alto pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Alto TX15 600-Watt 15" 2-Way Active Loudspeaker TX15 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Alto TX15 600-Watt 15" 2-Way Active Loudspeaker TX15:
| Connector | XLR/TRS combo Mic/Line input
XLR output | | System | 2-way active ported speaker | | LF Driver Size | 15" woofer, 2" voice coil | | HF Driver Size | 1" titanium diaphragm, 1" voice coil | | Amplifier | Class DSMPS, 600 watts peak | | Coverage | 90°H x 45°V | | Frequency Response | At -3 dB: 65 to 20,000 Hz | | Crossover Frequency | 2.2 kHz | | Max SPL Level | 119 dB at 1 m | | External Control | Volume control
Contour
Power ON with green LED
Clip Limiter with red LED | | Protection Circuits | Thermal
Overload
Analog Limiter
Compressor | | Power Supply | 120 to 240 V at 50/60 Hz | | Enclosure | Injection-molded polypropylene enclosure, multi-angle for main or monitor applications with metal grille, rubber, feet, and two handles | | Mounting | 36 mm standard pole mount | | Dimensions (H x W x D) | 24.6 x 15.1 x 14.4" (62.5 x 38.6 x 36.6 cm) | | Weight | 32.80 lb (14.86 kg) | | Package Weight | 38.2 lb | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 18.0" | |
