User manual for the Ambient Recording ACL 204 - Lockit Sync Box ACL 204
The user manual for the Ambient Recording ACL 204 - Lockit Sync Box ACL 204 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Slates & Time Code Accessories.

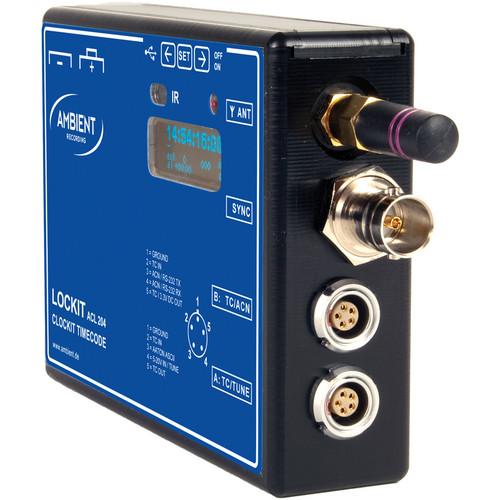

The ACL204 from Ambient Recording is a portable synchronizer and the first in a new generation of Clockit products which fully utilizes the Ambient Clockit Network System (ACN). The company hopes that ACN becomes an industry standard, a system that is as open as possible, and which simultaneously merges real-time and file embedded metadata from various camera manufacturers along with a global time code reference.
The unit supports all Timecode rates and sync formats and allows the user to apply an offset to the Timecode output to compensate for the processing delay created in some HD cameras. Additionally, 3-D camera rigs can be lighter and neater by utilizing the second Timecode output, while the sync output can be switched to drive a dual load. An integrated transceiver and the second Lemo socket can be used to interface with the Clockit Network System.
An OLED display provides instant visual feedback about the unit's current configuration and assists in navigating through the menu. This can be done on the fly with one-finger without the need for screwdrivers or power cycling the unit. An intelligent algorithm prevents configuration of improper, mismatched Timecode and sync rates, or unintended alterations to the setup.
The hardware has been completely revised to provide a flexible, fully programmable FPGA architecture. Powered by a pair of AA batteries, the portable synchronizer is housed in a compact but rugged housing, ensuring many years of reliable operation, while opening the door to the extensive use of metadata that has become essential for an effective work flow in today's multi-camera film and multimedia productions.
If you own a Ambient Recording slates & time code accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ambient Recording ACL 204 - Lockit Sync Box ACL 204 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
The user manual for the Ambient Recording ACL 204 - Lockit Sync Box ACL 204 can be downloaded in .pdf
format if it did not come with your new slates & time code accessories, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Ambient Recording users keep a unique electronic library
for Ambient Recording slates & time code accessoriess,
where you can use our link to download the user manual for the Ambient Recording ACL 204 - Lockit Sync Box ACL 204.
The user manual lists all of the functions of the Ambient Recording ACL 204 - Lockit Sync Box ACL 204,
all the basic and advanced features and tells you how to use the slates & time code accessories.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Ambient Recording service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Ambient Recording ACL 204 - Lockit Sync Box ACL 204. User manuals are also
available on the Ambient Recording website under Pro Audio - Location Sound - Slates & Time Code Accessories.
