User manual AMD FirePro R5000 Remote Graphics Card 100-505688

Operating instructions and pdf manual for use - AMD FirePro R5000 Remote Graphics Card 100-505688 User manual, User manual AMD FirePro R5000 Remote Graphics Card 100-505688, AMD, FirePro, R5000, Remote, Graphics, Card, 100-505688,


User manual for AMD FirePro R5000 Remote Graphics Card 100-505688

AMD FirePro R5000 Remote Graphics Card 100-505688
  • Manufacturer: AMD
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Graphic Display Cards
  • Safety instructions
  • Startup and operation of the graphic display cards
  • Tips for setting up your AMD
  • Settings and expert assistance
  • Contact AMD service
  • Troubleshooting
  • Warranty information
  • Price: 910 USD
We recommend checking out our discussion threads on the AMD FirePro R5000 Remote Graphics Card 100-505688, which address similar problems with connecting and setting up Graphic Display Cards AMD.



User manual for the AMD FirePro R5000 Remote Graphics Card 100-505688

The user manual for the AMD FirePro R5000 Remote Graphics Card 100-505688 provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Graphic Display Cards.

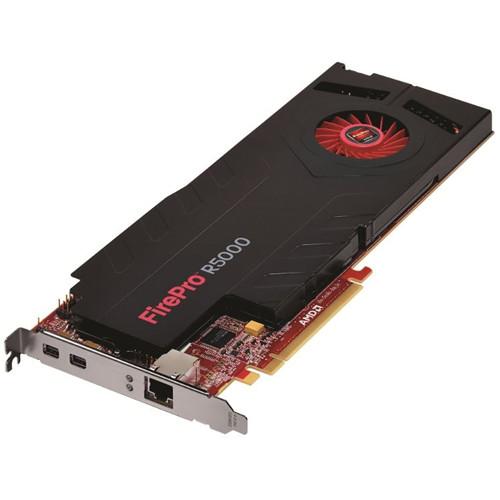

The AMD FirePro R5000 Remote Graphics Card is a server-side graphics card for one-to-one connection between the card, located in a data center, and a PCoIP client device. It is designed to give employees at remote client devices the same user experience as if they were connected directly to a workstation. The card uses PCoIP protocol to deliver high performance graphics, USB, and audio to remote client devices over standard network infrastructure. It allows IT departments to remote multi-display workstations for employs working in fields that demand graphics rich content or GPU-assisted parallel processing, such as video editing, 3D modeling, CAD, animation, engineering, design, financial services, or medical imaging.

The GPU in the FirePro R5000 features 2GB of GDDR5 RAM, a 256-bit memory interface, and has a memory bandwidth of up to 102GB/s. In addition, the integrated Teradici Tera2240 host processor compresses data from the GPU and is able to push it out at up to 300 megapixles per second to a compatible PCoIP-enabled client device such as the Dell Wyse P45.

The FirePro R5000 is designed to bring the multi-display workstation experience to employees using networked client devices. Via its Ethernet port, the card can remote up to four displays at a maximum resolution of 1920 x 1200 each. For higher resolution applications, it can also drive two displays at up to 2560 x 1600 resolution when using an adapter that combines two client ports into one. In addition, the card features two Mini DisplayPort outputs allowing it to drive one or two displays locally.
If you own a AMD graphic display cards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AMD FirePro R5000 Remote Graphics Card 100-505688 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AMD FirePro R5000 Remote Graphics Card 100-505688Download user manual for AMD FirePro R5000 Remote Graphics Card 100-505688
(PDF file, 2.71 MB)
Additional parameters of the AMD FirePro R5000 Remote Graphics Card 100-505688:
Specifications
    GPU FirePro R5000
    Memory 2 GB
    Memory Type GDDR5
    Memory Interface 256-bit
    Memory Bandwidth 102 GB/s
    Connectivity 1 x Ethernet on RJ-54 connector for PCoIP
    2 x Mini DisplayPort for local displays
    PCI Interface PCI-E 3.0 x16
    Maximum Resolution 1920 x 1200 on up to four remote displays at 60Hz
    2560 x 1600 on up to two remote displays - requires an adapter that combines two client ports into one
    Multi-Display Function Connect two local displays via Mini DisplayPort
    Supports up to four remote displays via Ethernet - compatible client device required
    Power Consumption 150 W Maximum
    System Requirements Windows: 8, 7, Vista - 32 or 64-bit
    Linux: 32 or 64-bit kernels - support varies depending on distribution
    At least 2GB system RAM
    Internet access for software installation
    1 x Free PCI-E x16 expansion slot - use PCI-E 3.0 for optimal performance
    1 x 6-pin PCI-E power connector
    PCoIP-capable thin or zero client device required for remote connectivity; Dell Wyse P45 zero client or other Teradici Tera2 based device required for remoting four displays
    Form Factor Full height, full length
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 15.1 x 9.5 x 3.0"
    The user manual for the AMD FirePro R5000 Remote Graphics Card 100-505688 can be downloaded in .pdf format if it did not come with your new graphic display cards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AMD users keep a unique electronic library for AMD graphic display cardss, where you can use our link to download the user manual for the AMD FirePro R5000 Remote Graphics Card 100-505688.

    The user manual lists all of the functions of the AMD FirePro R5000 Remote Graphics Card 100-505688, all the basic and advanced features and tells you how to use the graphic display cards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AMD service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AMD FirePro R5000 Remote Graphics Card 100-505688. User manuals are also available on the AMD website under Computers & Solutions - Computer Components - Graphic Display Cards.
