User manual for the American DJ Mega Par Profile Plus LED Effects 2- Light

The user manual for the American DJ Mega Par Profile Plus LED Effects 2- Light provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - DJ & Effect Lights.

The American DJ Mega Par Profile Plus LED Effects 2-Light with Cables and Bag Kit was put together by B&H for the mobile DJ who wants to add visual excitement to his audio program. The kit includes 2 Mega Par Profile Plus lights, each with scissor yoke, power cord and a 5' DMX cable. A padded F2 PAR bag is also included for storage and transport.
If you own a American DJ dj & effect lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American DJ Mega Par Profile Plus LED Effects 2- Light in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American DJ Mega Par Profile Plus LED Effects 2- Light:
Specifications

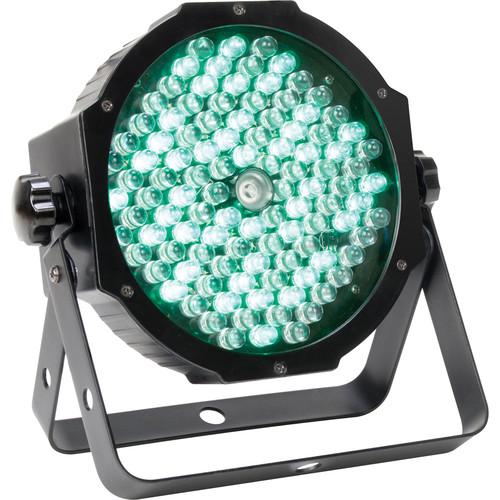

  • 2 x American DJ Mega Par Profile Plus RGB+UV LED Light
    Material Aluminum
    Light Source 10 mm LEDs x 107: 26 red, 45 green, 36 blue LEDs + 1 3W UV LED)
    50,000 hr lamp life
    Beam Angle 30°
    Operational Modes RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, and DMX Controlled
    DMX Channel Modes 4, 5, 6, 9, 10
    Programs and Effects 16 Sound Active shows
    32 Built-in shows (16 color changing shows and 16 color fading shows)
    64 built-in color macros
    Display Inversion Mode
    Color Strobe effect
    Dimming 0-100%, Flicker-free
    5 Dimming curve settings: Standard, Stage, TV, Architectural, Theater
    Color Mixing RGB+UV color mixing (fast or slow color change)
    Display 4-Button
    Yoke Scissor type
    Connectors 3-Pin XLR In/Out
    IEC In/Out
    Power Linking 33 Units @ 120 V and 60 units @ 230 V
    Remote Control Optional wireless
    Power 100 - 240 VAC, 50/60 Hz, auto-sensing
    Power Consumption 16 W max.
    Dimensions 9.0 x 8.75 x 3.5" (225 x 220 x 85 mm)
    Weight 3.0 lb (1.1 kg)
    Packaging Info
    Box Dimensions (LxWxH) 11.3 x 10.5 x 5.0"
  • 2 x American DJ Accu-cable 3-pin DMX Cable (5')
    Construction
    Tinned copper conductors
    Polyethylene twisted pair insulation
    Polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage)
    PVC jacket
    Pairs 1
    Conductor 2
    AWG 22
    Stranding 0.15 x 19
    Diameter Conductor: 0.0354" (0.0899 cm)
    Inner jacket: 0.055" (
    Overall: 0.229" (
    Conductor TC-tinned copper
    Insulation PE polyethylene
    Lay Length 2.5" (6.4 cm) left hand lay with 4.8 twists per foot
    Jacket Material Inner: PE-polyethylene
    Outer: PVC-polyvinyl chloride
    Outer Shield Trade name: Duofoil
    Type: Tape/Braid
    Outer Shield Material Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
    Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
    Mechanical
    Operating Temperature Range -22 to 167°F (-30 to 75° C)
    Minimum Bend Radius 3.2" (8.1 cm)
    Pulling Tension Maximum 72 lb (33 kg)
    Length 5' (1.5 m)
    Electrical
    Impedance 110 Ω
    Capacitance Conductor to conductor at 1 kHz: 12.8 pF/ft
    Conductor to conductor and shield: 23 pF/ft
    Velocity of Propagation 66%
    Delay 1.6 Nanoseconds per foot
    DC Resistance Conductor at 20°C: 24 Ω/1000 ft
    Outer shield at 20°C: 3.4 Ω/1000 ft
    Attenuation At 1 MHz: 0.6 dB/100 ft
    Current 2.1 A mps per conductor at 25°C
    General
    Length 5' (1.5 m)
    Weight Bulk wire: 0.155 lb (0.0703 kg)
    Packaging Info
    Box Dimensions (LxWxH) 7.0 x 3.8 x 0.7"
  • American DJ Accu-Case F2 Par Bag for 2 LED Par Fixtures (Black)
    Material Polyester nylon
    Type of Closure Zipper
    Exterior Dimensions Not supplied by manufacturer
    Interior Dimensions 9.0 x 8.8 x 9.4" / 22.9 x 22.2 x 23.7 cm
    Carrying/Transport Options Twin carry straps with a padded, fabric-fastening connector
    Weight Not supplied by manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 15.6 x 10.4 x 2.7"
