User manual for the American Dynamics ADLCD24MPB Large Panel Monitor ADLCD24MPB
The user manual for the American Dynamics ADLCD24MPB Large Panel Monitor ADLCD24MPB provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

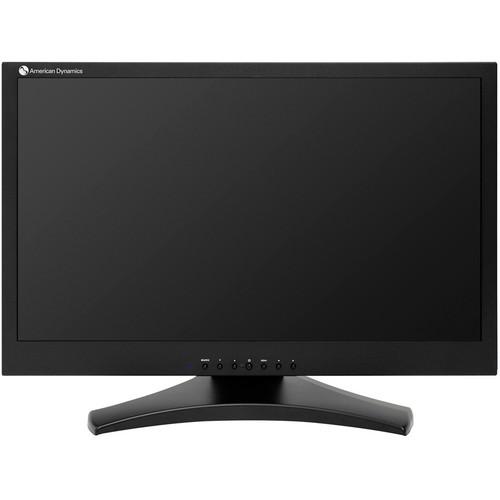

The American Dynamics ADLCD24MPB Large Panel Monitor (24”) produces sharp, true color images even at wide viewing angles. This monitor is an excellent choice for your video solution needs. The monitor features user friendly on-screen menus and front panel controls for adjusting monitor display parameters to your specific preference. Moreover, it features LED backlighting, enhanced power savings, de-interlace technology, and comb filters.
This large panel monitor, part of the Professional Series, supports digital full HD and sharp analog composite video input signals. This attractive LED edge-lit monitor, with a slim metal chassis design, includes a desktop stand and features VESA standard mounting pattern. The supported mounting pattern is 100 x 100mm and 200 x 100mm. Easy positioning HAS (Height Adjustable Stand) is provided with the display for landscape or portrait positioning. Long lasting solid-state LED backlights help maintain consistent brightness levels and consume less power.
|
If you own a American Dynamics surveillance monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the American Dynamics ADLCD24MPB Large Panel Monitor ADLCD24MPB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the American Dynamics ADLCD24MPB Large Panel Monitor ADLCD24MPB:
| Panel Size | 24" (60.96 cm) diagonal | | Backlight | LED, edge-lit | | Native Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 170 / 160 | | Response Time | 5 ms | | OSD Language | English (US), French (Fr), German, Spanish (Int), Italian, Portuguese (Brazilian), Chinese (Si), Dutch | | Composite Video Input | 2x BNC inputs | | Composite Video Output | 2x BNC passive loop-through outputs | | Audio Input | Camera: 2 sets of RCA (R/L) | | S-Video Input | 1x (Y/C) input | | S-Video Output | 1x (Y/C) output | | VGA Connector | 1x VGA (15 pin D-Sub) | | Plug & Play | DDC compatible (DDC 2B) | | DVI-D Input | 1x | | HDMI In | 1x HDMI | | Audio Input | 3.5 mm stereo audio input | | Speaker Output | 5 W x 2 embedded | | Video Format | NTSC / PAL auto detect | | Scanning Frequency | NTSC: 15750 Hz ± 500 Hz / 60 Hz
PAL: 15625 Hz ± 500 Hz / 50 Hz | | Resolution | 650 TVL | | Power Consumption | <40 W | | Power Input | 24 VDC / 2.4 A | | Power Output | Camera: 12 VDC / 0.4 A | | Stand-By Condition | <2 W | | Mode | Off Mode: <1 W | | Temperature | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: 4 to 140°F (-20 to 60°C) | | Humidity (Non-condensing) | Operating Humidity: 10 to 85%
10 to 95% | | Desktop Stand | Height adjustable desktop stand | | VESA Mount | 200 x 100 mm, 100 x 100 mm | | Dimensions (H x W x D) | 15.83 x 22.48 x 9.57" (402 x 571 x 243 mm) | | Weight | 22.05 lb (10 kg) | | Package Weight | 26.7 lb | | Box Dimensions (LxWxH) | 24.7 x 20.3 x 12.5" | |
