User manual for American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN
- Manufacturer: American Dynamics
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
- Safety instructions
- Startup and operation of the wired analog & hd cameras
- Tips for setting up your American Dynamics
- Settings and expert assistance
- Contact American Dynamics service
- Troubleshooting
- Warranty information
- Price: 120 USD
|
We recommend checking out our discussion threads on the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN,
which address similar problems with connecting and setting up Wired Analog & HD Cameras American Dynamics.
|
User manual for the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN
The user manual for the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

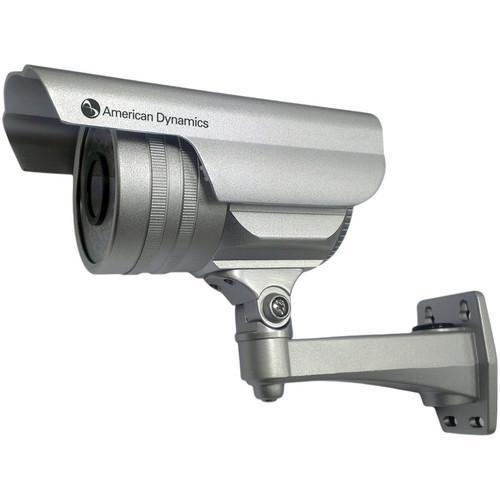

The silver Discover 300 Indoor Bullet Camera with 3.6mm Fixed Lens from American Dynamics (NTSC) uses 1/3” Format Interline CCD sensor and DSP (Digital Signal Processing) to deliver clear picture quality at a resolution of 600 TVL. This bullet camera offers BLC (Backlight Compensation), AGC (Automatic Gain Control), auto iris, and AWB (Auto White Balance). Optimal white balance is achieved through pre-defined or user-customized settings to provide clear images. Low light sensitivity renders sharp images in scenes with minimum illumination of up to 0.5 lux.
|
If you own a American Dynamics wired analog & hd cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN:
| Imager | 1/3˝ Format Interline CCD sensor | | Horizontal Resolution | 600 TVL | | Active Pixel Count (H x V) | 768 x 494 | | Lens | 3.6 mm f/2.0 | | Scanning Frequency | 2:1 Interlace | | Minimum Illumination | 0 lux with IR on
0.55 lux (50 IRE, F1.4, AGC maximum) with IR off | | Iris Control | Video / DC auto | | S / N Ratio | 48 dB (100 IRE) | | Synchronization | Internal | | Shutter Speed | MES 1/60, FLK, 1/250 to 1/100,000, Auto | | IR Illuminator | 850 mm | | IR Range | 98.4' (30.0 m) | | AGC Level | Low, Middle, High, Off | | Dynamic Range | AGC: 70 to 100 IRE | | AES | Auto luminance control 1/60 to 1/100,000 sec | | BLC | 2 zone On, Off, HLC | | White Balance | Auto | | Auto White Balance Range | AW1 (2,700 to 9,700 K), ATW2 (2,000 to 20,000 K), AWC, Manual | | Day/Night | Auto, Color, B/W, Ext | | Brightness | 0 to 255 level | | Sharpness | 0 to 31 level | | DWDR | On, Off | | Noise Reduction | On, Off | | Programmable Privacy Zones | 8 | | Mirror | On, Off | | On-Screen Display | On, Off | | Back Focus | CS mount 12 ± 1 mm | | Connectors | Composite Video Output: 75 Ω BNC | | Voltage | 12 VDC ± 10% | | Power Consumption | 2.6 W maximum | | Housing | Aluminum, Silver RAL 9022 (Pantone 877C) | | Temperature | Operational: 14 to 122°F (-10 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 90% non-condensing | | Regulatory | Emissions: FCC: Part 15, Class B; CE: EN61000, Class B
Immunity CE: EN50130-4 | | Dimensions | D x L: 2.76 x 6.71" (70.00 x 170.50 mm) | | Weight | 1.90 lb (0.86 kg) | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.7 x 9.2 x 5.8" | |
The user manual for the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN can be downloaded in .pdf
format if it did not come with your new wired analog & hd cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other American Dynamics users keep a unique electronic library
for American Dynamics wired analog & hd camerass,
where you can use our link to download the user manual for the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN.
The user manual lists all of the functions of the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN,
all the basic and advanced features and tells you how to use the wired analog & hd cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from American Dynamics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the American Dynamics Discover 300 Indoor Bullet Camera ADCA3BWI5RN. User manuals are also
available on the American Dynamics website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
