User manual for the American Dynamics External iSCSI RAID Video Storage ADIRS2R1600

The user manual for the American Dynamics External iSCSI RAID Video Storage ADIRS2R1600 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Dedicated Storage.

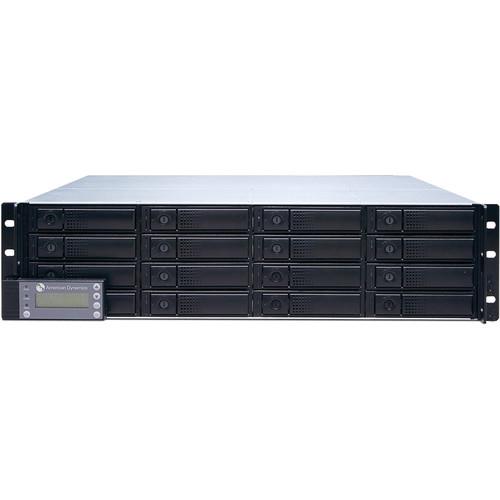

The iSCSI RAID Storage Box with IRS-2 3U Rack Mount from American Dynamics is an external iSCSI storage solution used with the VideoEdge Network Video Recorders when external storage is required for video. This 2nd generation storage solution is secure and provides SAN storage for virtually any network and application. This storage system is easy to install and simple to administer.
If you own a American Dynamics dedicated storage and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics External iSCSI RAID Video Storage ADIRS2R1600 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics External iSCSI RAID Video Storage ADIRS2R1600:
System
Form Factor 3U 19.0" (482.6 mm) rack mount
Category Advanced / flexible
Configuration 16 TB RAW / 14 TB RAID-5
16 x 3.5" 1 TB SATA-II
2 x DG and 14 x VD
Operational
RAID Controller Single
Processor Intel XScale IOP342
Memory 1 GB DDR667
RAID Levels Supported 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, Chassis Hot Spare

RAID sets and Hot Spares are designed within each chasis

Drive 16 per enclosure
Disk RAID Sets: Up to 80
Virtual Disk: Up to 1024
S.M.A.R.T. Enabled
LCD Display Standard
LED Indicators HDDs, LCD, Fans, PSUs
External Interface Rear
4 x 1 GbE iSCSI (Data) 1 x 100 Mbit (Management) 1 x 12 Gb SAS (Out-Expansion) 2 x RS-232
Expansion Capabilities 160 TB RAW
80 HDDs with 4 x ADERS2Rxxxx
Hot Swap Support Hard drives (Lockable), Power supplies & fans (Redundant)
Power Supply Dual 500 W
Environmental
Temperature Operating: 50 to 95°F (10 to 35°C)
Storage: 33.8 to 140°F (1 to 60°C)
Humidity Operating & Storage: 10 to 90% non-condensing
Physical
Voltage 100 to 240 VAC, 50 to 60 Hz, 7 to 4 A
BTU 2,400 BTU
Agency Approvals FCC, CE, UL, cUL, RoHS, WEEE
Dimensions (W x D x H) 17.6 x 19.6 x 4.6" (447.0 x 498.0 x 116.0 mm)
Weight 65.0 lb (29.5 kg)
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 26.5 x 23.0 x 17.2"
