User manual AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664

Operating instructions and pdf manual for use - AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664 User manual, User manual AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664, AmpliVox, Sound, Systems, SW664, Mobile, Line, Array,


User manual for AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664

AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664
  • Manufacturer: AmpliVox Sound Systems
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your AmpliVox Sound Systems
  • Settings and expert assistance
  • Contact AmpliVox Sound Systems service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664, which address similar problems with connecting and setting up Portable PA Systems AmpliVox Sound Systems.



User manual for the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664

The user manual for the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

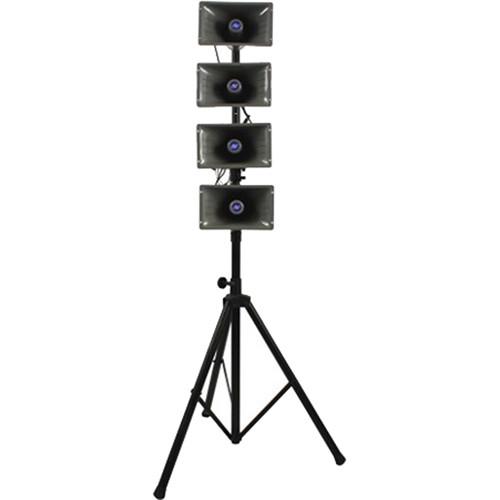

The SW664 Mobile Line Array Hailer System by AmpliVox combines four horizontally mounted tapered horns in a vertical column to provide clear sound coverage up to 1 mile away. The four horns provide a frequency response of 200 to 15,000 Hz into an 8 ohm load with a sensitivity of 124 dB (at 1 meter with 1 watt input). The horns are aligned on a vertical stand and disperse sound 60° horizontally and 40° vertically. This makes the system useful for both loud indoor and open-air outdoor applications such as manufacturing facilities, outdoor venues, ball fields, parks, street fairs, and other similar areas.

The speaker pole is made from weatherproof ABS plastic with a threaded stud for mounting on the heavy-duty tripod stand. An amplifier pole allows you to mount the 50W stereo amplifier which includes an integrated 16-channel UHF 584 to 608 MHz wireless microphone receiver. A wireless handheld microphone is included and a wireless headset is available (sold separately).

The amplifier features a separate master volume control, and separate volume and tone controls for its 1/8" auxiliary jack. A 1/4" wired microphone input allows for connection of a third microphone. The unit can operate for 200 hours when powered by ten D-cell alkaline batteries (not included). A rechargeable Nicad battery pack is also available (sold separately).
If you own a AmpliVox Sound Systems portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664:
Specifications
    Input 1x 1/8" (3.5 mm) Aux input
    1x 1/4" (6.35 mm) microphone input
    1x 16-channel UHF wireless microphone receiver (584 to 608 MHz)
    Sound Dispersion 60° horizontal x 84° vertical
    Range Up to 1 mile (1.6 km)
    Frequency Response 200 to 15,000 Hz
    Sensitivity 124 dB at 3.28' (1 m) with 1 W input
    Speakers 4x tapered horns
    Impedance 8 ohms per channel
    Amplifier 50 W
    Wireless Frequency Range 16 channels on UHF 584 to 608 MHz
    Wireless Range 300.0' (91.4 m)
    Stand Adjustments 44 to 84" (112 to 213 cm)
    Material of Construction Weatherproof ABS
    Power Up to 200 hours of operation on 10x D-cell alkaline batteries (sold separately)
    Rechargeable Nicad battery pack available (sold separately)
    Dimensions (H x W x D) Horn Size: 11.0 x 6.0 x 9.0" (79.4 x 152.4 x 228.6 mm)
    Weight 37.0 lb (16.8 kg)
    SW664
    The user manual for the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664 can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AmpliVox Sound Systems users keep a unique electronic library for AmpliVox Sound Systems portable pa systemss, where you can use our link to download the user manual for the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664.

    The user manual lists all of the functions of the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664, all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AmpliVox Sound Systems service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AmpliVox Sound Systems SW664 Mobile Line Array Hailer SW664. User manuals are also available on the AmpliVox Sound Systems website under Pro Audio - Live Sound - Portable PA Systems.
