User manual for the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831

The user manual for the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

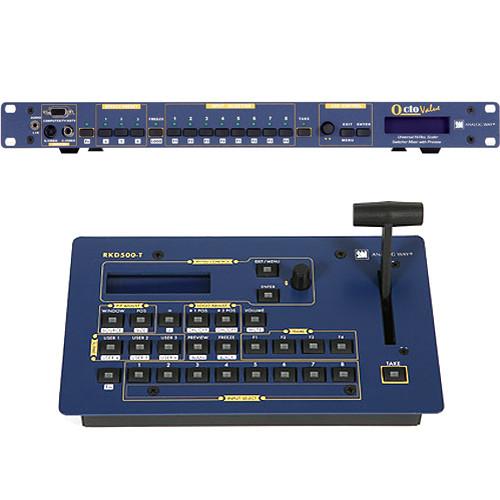

The Analog Way Octo Value Switcher with RKD500-T Remote Keypad is a high-resolution digital and analog computer & video up/down scaler switcher suitable for high-resolution A/V presentation displays, houses of worship, conference, boardrooms, and events. The unit has a compact design and features 8 universal A/V inputs including 1 DVI, and 4 outputs - 2 analog and 1 DVI for the main, and 1 analog for the preview. Each of the inputs is attached with a stereo audio line, which can either follow or break away from the video image.
If you own a Analog Way production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831Download user manual for Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831
(PDF file, 5.2 MB)
Additional parameters of the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831:
Main Unit
Interfaces 8 Universal Inputs

  • Composite Video: NTSC = 15.735 kHz/60 Hz / PAL/SECAM = 15.625 kHz/50Hz
  • S.Video (Y/C): NTSC = 15.735 kHz/60 Hz / PAL/SECAM = 15.625 kHz/50Hz
  • Component (YUV): 15.625 kHz/50 Hz - 625L / 15.735 kHz/60 Hz - 525L
  • RGB/S (TTL or 0.3V Analog), RGsB (SOG: 0.3V Analog), 15.625 kHz/50 Hz - 625L, 15.735 kHz/ 60 Hz - 525L
  • HDTV: Component (HD YUV 2/3 Level Sync.) 1080i/60-50Hz, 1080p, 720p/60-50Hz, 480p/60Hz
  • Computer (RGB HV, RGB/S and RGsB): PC, Mac, Workstation Automatic Sync. & centering. Resolution from 640x480 to 1600x1200 (up to 110kHz)
  • DVI: Digital computer up to 1600x1200/60Hz and 1920x1200/60Hz, RB(1) (Fpx: 165MHz max)

    Audio Inputs

    8 + 1 Stereo Inputs
  • 2 balanced audio inputs
  • 7 unbalanced audio inputs
  • Vi = + 18 dBu max

    Main Display Output

  • 2 x Buffered outputs (1 on HD15 F connector and 1 on DVI-I connector) RGB HV, RGB/S or RGsB selectable (H&V separated, Sync. Composite or SOG), RGB=0.7Vp/p (75 Ohms)
  • 1 x DVI-D on DVI-I connector
  • Resolution: 4/3 & 5/4 = SVGA, XGA, SXGA+, UXGA, 16/9 & 16/10 = WVGA, WSVGA, WXGA, WSXGA, WSXGA+, WXGA, 1080p
  • Rate: Internal 50, 60, 72 & 75 Hz and Follow : depending on resolution

    Preview Display Output

    1 x RGB HV separated Sync - RGB = 0.7V p/p (75 Ohms load), resolution: XGA, Rate: Internal 60Hz

    Logos and Frame Stores

    8 logos & 4 frames stored, 16 million colors, non-volatile memory, Flash capture of Video or Computer sources, 256 step keying threshold control, adjustable H&V logo position, 2 logos allocated per input

    Main Audio Output

  • Stereo output (balanced & unbalanced)
  • Vo = + 18 dBu max - Zo = 300 Ohms (unbalanced)
  • Vo = + 24 dBu max - Zo = 600 Ohms (balanced)
  • G = 0dB nominal, with volume

    PreList Audio Output

  • Stereo output unbalanced
  • Vo = + 18 dBu max
  • Zo = 300 Ohms
  • G = 0dB nominal, with master volume

    User Controls and Connectors - Front Panel

  • Selection of inputs 1 to 8 and Frame memory
  • Programmable effect keys
  • Freeze/Logo On Off, Take
  • LCD screen & control buttons for menu: Test patterns, proc. image adjust., input format selection, output format display, output format & sync., audio input level and output, volume adjustments, position & size adjustments, front panel control lockout

    Input Connectors:
  • Input #8: Video - RCA, Mini DIN 4 and HD15F Audio - 3.5 Stereo Jack

    User Controls and Connectors - Rear Panel

    Input Connectors:
  • Input #1: DVI-I
  • Inputs #2 to #6: HD 15F
  • Input #7: HD 15F + 2 BNC
  • Audio inputs 3 to 7 and auxiliary: on 5-pin screw terminal
  • Audio inputs 1 and 2: on 3.5 stereo jack

    Output Connectors:
  • Main Video: DVI-I + HD 15F
  • Preview Video: HD 15F
  • Main Audio: 5-pin screw terminal
  • Prelist Audio: 3.5 Stereo Jack
  • 1 x DB9F with 2 RS232 ports
  • 1 x 3.5 Jack : +12Vdc trigger
  • Optional Ethernet Port 10/100BT: RJ45
  • Power Requirements 100-250VAC
    Power Consumption 50W
    Dimensions (WxHxD) 19 x 1.7 x 10.4" (482 x 44 x 265mm) - 1 RU
    Weight 7.7 lbs (3.5kg)
    Controller
    Power Requirements 9VDC
    Operating Temperature Maximum: 122°F (50°C)
    Dimensions (WxHxD) 8.9 x 4 x 5.1" (220 x 102 x 130mm) - 3 RU high, 1/2 RU wide
    Weight 2.2 lbs (1kg)
    Packaging Info
    Package Weight 16.0 lb
    The user manual for the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831 can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Analog Way users keep a unique electronic library for Analog Way production switcherss, where you can use our link to download the user manual for the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831.

    The user manual lists all of the functions of the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Analog Way service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Analog Way Octo Value Switcher with RKD500-T Remote P1-OXE831. User manuals are also available on the Analog Way website under Professional Video - Studio & EFP Equipment - Production Switchers.
