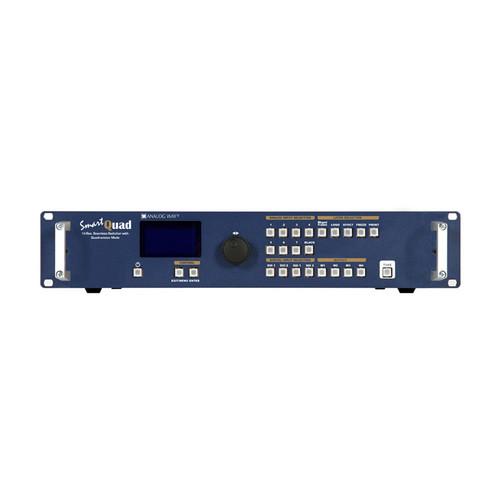

The Analog Way Smart Quad Hi-Resolution Seamless Switcher, with Quadravision mode, is ideal for command and control centers, videoconferencing, medical facilities, courtrooms, and boardrooms. Eleven inputs are provided including 2 DVI-I and 2 SD/HD-SDI inputs. Twelve different pre-programmed templates, including wide and split screen, can be configured as per convenience.

In addition to being HDCP compliant, the Smart Quad Hi-Resolution Seamless Switcher features full digital processing, smooth move effect, dynamic fit, 7 full frames/logo memories, Chroma/Luma Key/DSK title, and PIP. Dynamic fit allows you to automatically adjust the PIP to fit the image borders. Along with open/close animation PIP, 4 PIP can be viewed on a frame background, which can be panned and zoomed up to 1000%. Transitions of fade (dissolve), cut, wipe, and slide allow for a seamless operation.
If you own a Analog Way production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Analog Way Smart Quad Hi-Resolution Seamless Switcher SQD200 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Analog Way Smart Quad Hi-Resolution Seamless Switcher SQD200Download user manual for Analog Way Smart Quad Hi-Resolution Seamless Switcher SQD200
(PDF file, 10.87 MB)
Additional parameters of the Analog Way Smart Quad Hi-Resolution Seamless Switcher SQD200:
Universal Inputs 7 Universal Inputs - Analog Inputs (All inputs #1 to #7)

SD-TV:

  • Composite, S-Video, YUV, RGsB or RGBS
  • NTSC: 15.735 kHz / 60 Hz
  • PAL/SECAM : 15.625 kHz / 50 Hz

ED/HD-TV:

  • RGsB, RGBS or YUV
  • 480p / 60 Hz – 576p / 50 Hz - 720p, 1080i, 1035i / 50 or 60 Hz – 1080p / 24, 25, 30, 50 or 60 Hz – 1080psF / 24, 25 or 30 Hz

Computer:

  • RGBHV, RGBS or RGsB
  • Resolution up to 1600x1200 / 60 Hz, 1920x1200 / 60 Hz or 2048x1080 / 60 Hz
  • Horizontal frequency from 31.5 to 130 kHz
  • Vertical frequency up to 130 Hz
  • FpxMax = 165 MHz
Digital Inputs 4 Digital Inputs (DVI-I 1, DVI-I 2, SDI1 and SDI2)

  • DVI-I: SD-TV, ED-TV, HD-TV and Computer formats
  • SDI: SD-TV & HD-TV – YUV/10bits/4:2:2, or 3G-SDI
  • Automatic synchronization detection
Outputs Computer Digital and Analog:

  • RGBHV, RGBS or RGsB and DVI
  • Resolution up to 1600x1200 / 60 Hz, 1920x1200 / 60 Hz or 2048x1080 / 60 Hz
  • Vertical frequency 50, 60, 72 or 75 Hz depending on Output format
  • FpxMax = 165 MHz

HD-TV:

  • RGsB, RGBS or YUV, DVI
  • 720p, 1080i, 1035i / 50 or 60 Hz - 1080p / 24, 25, 30, 50 or 60 Hz - 1080psF / 24, 25 or 30 Hz
Operation Standards SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, and SMPTE 424M
Audio Stereo In/Out Input:

  • Nine audio stereo inputs + 1 Auxiliary + 2 from embedded SDI
  • AUX and input #7 Balanced
  • Vi = +15 dB
  • Zi = 20 kOhms (Unbalanced) / 40 kOhms (Balanced)
  • Adjustable Level per input

Outputs:

  • Two independent outputs
  • Balanced/Unbalanced
  • Vo = +15 dBu / 300 Ohms (Unbalanced)
  • Vo = +21 dBu / 600 Ohms (Balanced)
User Controls Front Panel:

  • Standby On/Off
  • Analog and Digital inputs direct access
  • Effect and function control selection (Logo, freeze, preset)
  • W1 to W4 Layer selection for Quadravision mode
  • Large Graphic VFD screen with control knobs and buttons for easy and fast access to menus and adjustments
Connectors Rear Panel


Input #1 to #5 Connectors:

  • HD15-F: (Analog SD/ED/HD-TV and Computer)

Input #6 to #7 and DVI-I 1 to DVI-I 2 Connectors:

  • DVI-I Female: (Analog SD/ED/HD-TV and Computer)

Input SD/HD-SDI

  • SDI 1 & SDI 2: BNC-F

Audio:

  • 3.5 mm Stereo jack: inputs #1 to #4
  • 10-pin MCO connectors: 2 for Inputs and 1 for Outputs

DB9: Dual RS232 for remote control

RJ45: Ethernet connection

AC main connector with On/Off switch

Output Connectors Main and Preview Output Connectors


Each output is fitted with:

  • DVI-I Female: (Digital and Analog) RGB or YUV
  • HD15 Female: RGB or YUV
Video Out DB9-F: NTSC/PAL, S-Video, SD/HD-RGB/YUV
BNC-F: SD/HD-SDI (With Audio Embedded)
HD Formats: 720p@50/59.95 & 60 Hz, 1035i@59.94/60 Hz, 1080i@50/59.94/60 Hz, 1080p@23.97/24/25/29.97/30/50 & 60 Hz, 1080psF@25 or 30 Hz
Power Supply Internal, universal, automatic, 100-240 V; 50/60 Hz; 140 W (UL, CSA, GS, CE)
Dimensions (DxWxH) 2U, 19"
13 x 19 x 3.15" (330 x 480 x 80 mm)
Weight 11 lbs (5 kg)
Packaging Info
Package Weight 21.0 lb
