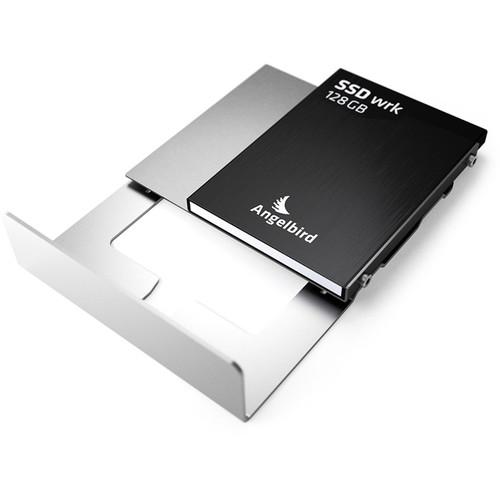

The 128GB 2.5" SSD wrk for Mac Pro from Angelbird comes mounted on a special bracket, which allows you to easily install this SSD inside your Mac Pro desktop. To install it, open up your Mac Pro, insert it into an empty drive bay and plug it in. This drive offers a sustained read of data up to 563 MB/s, sustained write up to 149 MB/s, and features a 67,500 IOPS rating. The Silicon Motion 2246EN controller supports the fast read and writes this drive has, by providing up to 6 Gb/s transfer rates to your Mac Pro via the SATA III interface.
This drive is built using MLC NAND flash memory technology and supports TRIM, which saves your data faster and prolongs the life of the drive by using the storage cells less. In addition, this drive has a special designed power circuit for protecting it from overloading and static shocks. It also features an Uninterruptible Power Supply for additional protection. With the 128GB of storage capacity offered, you will have ample space to store all your photos, videos, apps, and more with this drive.
If you own a Angelbird internal drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Angelbird 128GB 2.5" SSD wrk for Mac Pro SSDWRKMP128 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Angelbird 128GB 2.5" SSD wrk for Mac Pro SSDWRKMP128:
Specifications
Capacity
128 GB
Form Factor
2.5" 0.3" / 7.0 mm
Interface
SATA III 6 Gb/s, 3 Gb/s, and 1.5 Gb/s supported SATA 3.1 Compliant
Controller
Silicon Motion 2246EN
Over Provisioning
~7%
Flash
MLC NAND Flash
Material
Aluminum
Sustained Read Speed
Up to 563 MB/s
Sustained Write Speed
Up to 149 MB/s
IOPS
Up to 67,500
Access Time
~ 0.1 ms
Acoustic
Noise (idle): 0.0 db Noise (load): 0.0db Vibration: 0 Hz
MTBF
> 2,000,000 hour
Data Reliability
Built-in EDC / ECC function
Data Retention
10 years at 77°F / 25°C
ECC
66 bits per 1,024 bytes
Certifications
RoHS 6/6, FCC, CE
DC Input Voltage
5 V ± 5%
Power Usage (Idle)
0.25 W
Power Usage (Max)
1.97 W
Shock (operating)
2000 G
Vibration (operating)
20 G
Temperature
Operating: 32 to 158°F / 0 to 70°C Storage: -40 to 185°F / -40 to 85°C
