User manual Antelope Isochrone 10M Rubidium Atomic Clock 10M

Operating instructions and pdf manual for use - Antelope Isochrone 10M Rubidium Atomic Clock 10M User manual, User manual Antelope Isochrone 10M Rubidium Atomic Clock 10M, Antelope, Isochrone, 10M, Rubidium, Atomic, Clock, 10M, Video


User manual for Antelope Isochrone 10M Rubidium Atomic Clock 10M

Antelope  Isochrone 10M Rubidium Atomic Clock 10M
  • Manufacturer: Antelope
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - WordClock & Syncronization
  • Safety instructions
  • Startup and operation of the wordclock & syncronization
  • Tips for setting up your Antelope
  • Settings and expert assistance
  • Contact Antelope service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Antelope Isochrone 10M Rubidium Atomic Clock 10M, which address similar problems with connecting and setting up WordClock & Syncronization Antelope.



User manual for the Antelope Isochrone 10M Rubidium Atomic Clock 10M

The user manual for the Antelope Isochrone 10M Rubidium Atomic Clock 10M provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - WordClock & Syncronization.

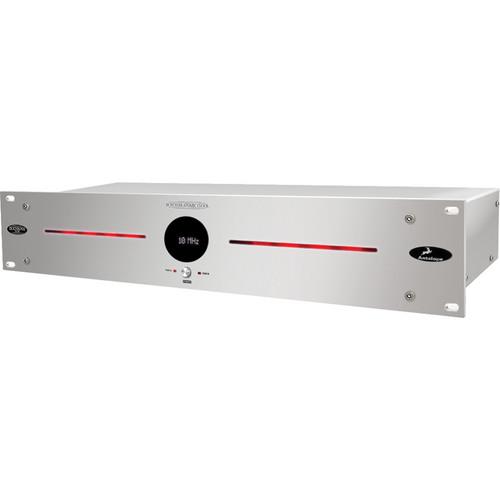

The Antelope Audio Isochrone 10M Rubidium Atomic Clock is a laboratory-grade atomic master clock for the Isochrone audio master clocks such as the OCX, OCX-V, and Trinity, audio/video equipment, and for other uses for which high clocking precision is required. In audio, the device nearly eliminates jitter by providing your gear with a clocking reference accurate to 0.03 parts per billion. This is 100,000 times more accurate than the quartz crystal oscillators found in most clocks. As a result, staging, transparency, imaging, separation, and depth help render the warmth and fullness typically associated with analog sound.

The 10M also includes a Swiss-made high precision sub-miniature Rubidium oscillator. Rubidium is a very soft and highly reactive element forming alloys even with gold, but it is best known for its capacity to produce extremely stable sinusoidal frequencies. In this device, it generates a frequency of 10 MHz, hence the name “10M”. You can use your Isochone 10M with any device that supports 10 MHz (BNC) input clock. The 10M can clock up to 8 devices simultaneously. Furthermore, it has dual redundant power supply (100 to 240 VAC and 15 VDC), which improves reliability and eliminates downtime in case of power failure.
If you own a Antelope wordclock & syncronization and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Antelope Isochrone 10M Rubidium Atomic Clock 10M in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Antelope Isochrone 10M Rubidium Atomic Clock 10M:
Design Atomic Type: Rubidium Ultra-Stable Resonance-Controlled Master Oscillator
Frequency 10 MHz
Frequency Accuracy Better than 0.03 PPB
Stability Long-Term: Better than 0.02 PPB
Typical: 0.05 PPB per month (measured after 6 months of continuous operation)
First Year < 2 PPB

Short-Term : Standard 0.03 PPB per second
0.01 PPB per 10 seconds
0.003 PPB per 100 seconds
Phase Noise at 10 MHz: Standard
-140 dBc per Hz at 10 kHz
Warm-Up Time 8 to 10 minutes (depends on ambient temperature)
Power Supply Type AC and DC, Dual Redundant
Power Supply Input Range 100 to 240 VAC 50/60 Hz
15 VDC
Power Consumption 40 W during the warm-up
17 W at standard operation (after the warm-up)
Inrush Current Maximum 50 A at 264 VAC
Clock Atomic Output: 8 x BNC Sinusoidal, 10 MHz, 75 Ω, 1 Vpp typical (unload)
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 185ºF (-20 to 85ºC)
Humidity Maximum 80%
Dimensions (W x H x D) 17.0 x 3.20 x 8.00" (434 x 81 x 205 mm)
Weight 12.9 lb (5.70 kg)
The user manual for the Antelope Isochrone 10M Rubidium Atomic Clock 10M can be downloaded in .pdf format if it did not come with your new wordclock & syncronization, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Antelope users keep a unique electronic library for Antelope wordclock & syncronizations, where you can use our link to download the user manual for the Antelope Isochrone 10M Rubidium Atomic Clock 10M.

The user manual lists all of the functions of the Antelope Isochrone 10M Rubidium Atomic Clock 10M, all the basic and advanced features and tells you how to use the wordclock & syncronization. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Antelope service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Antelope Isochrone 10M Rubidium Atomic Clock 10M. User manuals are also available on the Antelope website under Pro Audio - Computer Audio - WordClock & Syncronization.
