User manual AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU

Operating instructions and pdf manual for use - AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU User manual, User manual AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU, AOC, e1659Fwu, 16, Widescreen, USB, 3.0, Powered, LED, E1659


User manual for AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
AOC e1659Fwu 16
  • Manufacturer: AOC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your AOC
  • Settings and expert assistance
  • Contact AOC service
  • Troubleshooting
  • Warranty information
  • Price: 98 USD
We recommend checking out our discussion threads on the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU, which address similar problems with connecting and setting up Computer Monitors AOC.



User manual for the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU

The user manual for the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

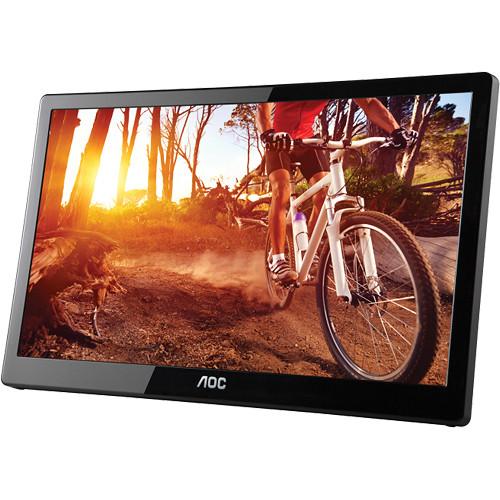

The e1659Fwu 16" Widescreen USB 3.0 Powered LED Backlit LCD Monitor from AOC is a bus-powered, portable monitor complete with a micro USB 3.0 port. The monitor comes equipped with a built-in stand allowing for easy viewing in both portrait and landscape modes. The display is also VESA compatible making it easy to mount the monitor to the wall.

With a 15.6" diagonal viewable display you can see all of your documents, movies, pictures, and more with enhanced clarity as this portable monitor features a 1366 x 768 optimal resolution. Along with an enhanced resolution, you also benefit from a 500:1 static contrast ratio, 8 ms response time, and a brightness rating of 200 cd/m². Once configured you can view the display from a variety of perspectives as it supports 90° horizontal and 50° vertical viewing angles.
If you own a AOC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AOC e1659Fwu 16Download user manual for AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU
(PDF file, 1.14 MB)
Additional parameters of the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU:
LCD Type TFT active matrix LCD
Display Size 16" widescreen
(15.6" diagonal viewable area)
Pixel Pitch 0.252 x 0.252 mm
Display Area 13.55 x 7.62" / 34.42 x 19.35 cm
Brightness 200 cd/m² (typical)
Contrast Ratio 500:1 (static)
Response Time 8 ms
Viewing Angles Horizontal: 90° (CR>10)
Vertical: 50° (CR>10)
Scanning Frequency Horizontal: 48 KHz
Vertical: 60 Hz
Optimal Resolution 1366 x 768 @ 60 Hz
Supported Resolutions 640 x 480 @ 60Hz for extended mode
800 x 600 @ 60Hz for extended mode
1024 x 768 @ 60Hz for extended mode
1366 x 768 @ 60Hz for extended mode
Color Depth 262K
Input Signal 1 x micro USB 3.0
Input Connector 1 x micro USB 3.0
User Control None
Adjustability Tilt: 15~30°, auto pivot
VESA Compatibility 75 x 75 mm
OSD Languages 14 languages including English, French, and Spanish
Power Source PC USB 5 V
Power Consumption 8 W (typical)
Standby: 1 W
Regulations cCSAus, cTUVus, CE, FCC, RoHS, Energy Star, Windows 8
Dimensions (WxHxD) With Stand: 14.76 x 9.21 x 0.91" / 37.50 x 23.40 x 2.30 cm
Without Stand: 14.80 x 9.21 x 0.90" / 37.59 x 23.39 x 2.29 cm
Weight 2.4 lb / 1.1 kg
Packaging Info
Package Weight 4.1 lb
Box Dimensions (LxWxH) 17.5 x 11.6 x 3.3"
The user manual for the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AOC users keep a unique electronic library for AOC computer monitorss, where you can use our link to download the user manual for the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU.

The user manual lists all of the functions of the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AOC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AOC e1659Fwu 16" Widescreen USB 3.0 Powered LED E1659FWU. User manuals are also available on the AOC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
