User manual for the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V
The user manual for the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

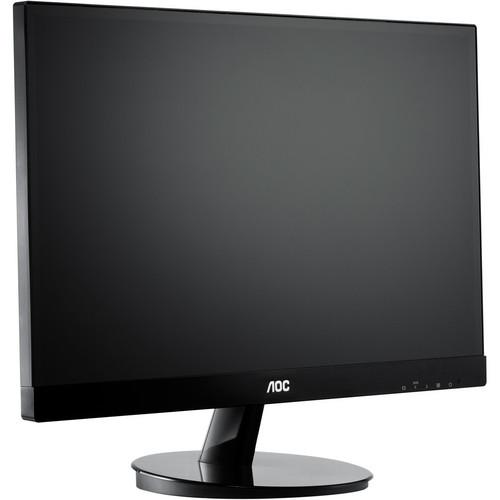

The black I2369V 23" Class IPS Panel Widescreen Monitor from AOC is an ultra-slim monitor with a 2mm ultra-narrow bezel for a borderless appearance that is ideally suited for use in dual-monitor or multiple-monitor setups. This sleek display features an IPS (In-Plane Switching) panel, a superior type of screen that offers consistent image appearance, higher definition, better color accuracy and greater light transmission from all viewing positions. The i2369V features VGA and DVI-D with HDCP connectivity and offers 1920 x 1080 full HD resolution. Additionally, the non-reflective matte anti-glare coating does not leave smudges or fingerprints on the screen.
|
If you own a AOC computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V:
| Cabinet Color | Glossy black bezel, base; hairline texture on bottom back cover | | Type | TFT Active Matrix LCD, LED backlight, IPS panel | | Viewable Size | Diagonal: 23" (584 mm) | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m2 | | Contrast Ratio | 50,000,000:1 | | Viewing Angle | Horizontal: 178° (CR > 10)
Vertical: 178° (CR > 10) | | Scanning Frequency | Horizontal: 30 K ~ 83 KHz,
Vertical: 50 ~ 75 Hz | | Pixel Pitch (HxV) | 0.65 x 0.65 mm | | Display Area (HxV) | 20.4 x 11.3" (509.2 x 286.4 mm) | | Response Time | 5 ms | | Pixel Frequency | 170 MHz | | Maximum Resolution | 1920 × 1080 at 60 Hz | | Recommended Resolution | 1920 × 1080 at 60 Hz | | Supported Resolution | 640 × 480 at 60 Hz/72 Hz/75 Hz
720 × 400 at 60 Hz/70 Hz
800 × 600 at 56 Hz/60 Hz/72 Hz/75 Hz
832 × 624 at 75 Hz
1024 × 768 at 60 Hz/70 Hz/75 Hz
1280 × 720 at 60 Hz
1280 × 720 at 60 Hz
1280 × 1024 at 60 Hz/75 Hz
1440 x 900 at 60Hz
1680 x 1050 at 60Hz
1920 x 1080 at 60Hz | | Color Support | 16.7 M | | Signal Input | Analog: 0.7 V p-p (standard)
75 Ω (positive)
Digital: DVI-D with HDCP | | Connectors | Analog RGB Signal: 15-pin D-Sub male
Digital Signal: 24-pin DVI | | VESA Mount | 75 x 75 mm | | Plug-and-Play | DDC/2B, DDC/CI | | User Controls | Left/Clear Vision, Right/Image Ratio, Source/Auto/Exit, Menu/Enter, Power | | OSD Languages | 16 languages including English, French and Spanish | | Regulations | FCC, cCSAus, CE, TUV/S, EPA Energy Star | | Power | Source: Universal 100 ~ 240 VAC, 50/60 Hz | | Power Consumption | On: 28 W
Standby: < 0.5 W | | Dimensions (WxHxD) | 21 x 15.7 x 8.0" (531.4 x 398 x 204 mm) | | Weight | 8.4 lb (3.8 Kg) | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 23.5 x 18.0 x 5.15" | |
The user manual for the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AOC users keep a unique electronic library
for AOC computer monitorss,
where you can use our link to download the user manual for the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V.
The user manual lists all of the functions of the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AOC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AOC I2369V 23" Class IPS Panel Widescreen Monitor I2369V. User manuals are also
available on the AOC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
