User manual AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE

Operating instructions and pdf manual for use - AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE User manual, User manual AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE, AOC, Q2778VQE, 27, Widescreen, LED, Backlit, Quad, HD, Q2778


User manual for AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE

AOC Q2778VQE 27
  • Manufacturer: AOC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your AOC
  • Settings and expert assistance
  • Contact AOC service
  • Troubleshooting
  • Warranty information
  • Price: 288 USD
We recommend checking out our discussion threads on the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE, which address similar problems with connecting and setting up Computer Monitors AOC.



User manual for the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE

The user manual for the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

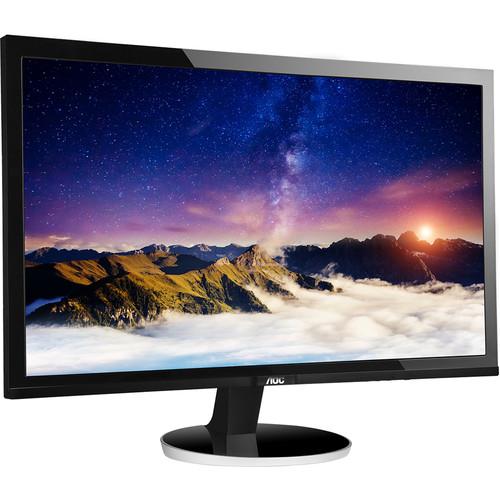

The reduced bezel of the Q2778VQE 27" Widescreen LED Backlit Quad HD Monitor from AOC allows you to focus more on the 2560 x 1440 Quad HD display. With a QHD resolution you benefit from a picture four times more detailed than that of a 720p display. Accompanying the enhanced resolution is a 1 ms response time to virtually eliminate ghosting and blur when gaming or watching video. Configuration is simple as the Q2778VQE is equipped with VGA, DVI-D, HDMI, and DisplayPort connectors allowing you to plug this monitor into a variety of computer configurations. You can also take advantage of a built-in headphone jack for a complete multimedia experience.
If you own a AOC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AOC Q2778VQE 27Download user manual for AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE
(PDF file, 5.28 MB)
Additional parameters of the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE:
Specifications
Panel TFT Color LCD
Viewable Image Size 27.0" / 68.5 cm
Aspect Ratio 16:9
Brightness 350 cd/m²
Contrast Ratio 20,000,000:1
Response Time 1 ms
Pixel Pitch 0.2331 mm (H) x 0.2331 mm (V)
Video R, G, B analog interface
Separate Sync H/V TTL
Display Colors 16.7M colors
Pixel Clock Frequency 205 MHz (VGA) / 300 MHz (DVI/HDMI/DP)
Horizontal Scan Range 30 kHz - 83 kHz (VGA) / 30 kHz - 99 kHz (DVI/HDMI/DP)
Horizontal Scan Size (Maximum) 596.74 mm
Vertical Scan Range 50 kHz - 76 kHz
Vertical Scan Size (Maximum) 335.66 mm
Optimal Preset Resolution 1920 x 1080 @ 60 Hz (VGA)
2560 x 1440 @ 60 Hz (DVI/HDMI/DP)
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15-pin, DVI-D Dual link, HDMI, DP
Input Video Signal Analog: 0.7 Vp-p(standard), 75 ohms, Positive, DVI-D Dual link, HDMI, DP
Power Source 100-240 VDC, 50/60 Hz
Power Consumption Typical
Brightness=90, Contrast=50: 45 W
Brightness=100, Contrast=100: 52 W
Power Saving: <0.5 W
Off Timer 0~24 h
Signal Cable Type Detachable
Tilt Adjustment -4 to 21°
Temperature Operating
32 to 104°F / 0 to 40°C
Non-Operating
-13 to 131°F / -25 to 55°C
Humidity Operating
10 to 85% (non-condensing)
Non-Operating
5 to 93% (non-condensing)
Altitude Operating
0 to 12,000 ft / 0 to 3,658 m
Non-Operating
0 to 40,000 ft / 0 to 12,192 m
Dimensions 18.5 x 25.2 x 9.0" / 470.7 x 640.3 x 229.1 mm
Weight 10.4 lb / 4.7 kg
Packaging Info
Package Weight 15.6 lb
Box Dimensions (LxWxH) 29.0 x 22.0 x 9.0"
The user manual for the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AOC users keep a unique electronic library for AOC computer monitorss, where you can use our link to download the user manual for the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE.

The user manual lists all of the functions of the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AOC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AOC Q2778VQE 27" Widescreen LED Backlit Quad HD Q2778VQE. User manuals are also available on the AOC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
