User manual for the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432
The user manual for the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

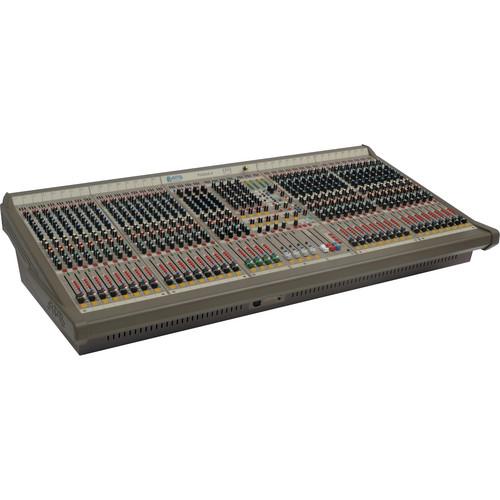

The APB-DynaSonics ProDesk-4 32 Input FOH Mixing Console delivers professional grade FOH (Front Of House) sound reinforcement mixing with intuitive control and flexible routing for today's stereo and surround mixing applications. The ProDesk-4 is designed to handle the gamut of mixing applications in concert sound, live theater applications, houses of worship, touring performances and more. The mixer's uncompromising audio quality starts with its modular input section, minimum phase-shift circuitry, expressive EQ and integrated mic preamplifiers.
|
If you own a APB DynaSonics sound reinforcement mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432:
Frequency Response | +0/-0.5dB 20Hz - 20kHz Ref 1kHz (Any input to any output) | Noise | Mic EIN Less than -128dBu (150 ohm source, 60dB gain) Bus Noise: ‹-85dBu 20Hz - 20kHz 32 Channels routed with faders down, Master fader at unity. ‹-95dBu with Master fader down | THD | ‹0.02% Mic Input to Main Outputs (Left/Right/Center/Mono ) | Crosstalk | at 1kHz: ‹-90dB Channel to Channel ‹-90dB Channel to Mix ‹-90dB Mix to Mix ‹-90dB Fader Attenuation | Phase Shift | ‹+/- 15 degrees @ 20Hz - 20kHz | Max Input Signal | +31dBu (with Pad) mic pre-amp input +21dBu all other inputs | Nominal Output | +4dBu | Max Output | Capable of driving 600 ohm or greater Balanced Mains (Left/Right/Center/Mono), aux outputs 1 through 6, matrix outputs 1 through 4 +28dBu into 2k ohm or higher - all other outputs +21dBu impedance balanced | Connections | Mic Inputs: 4k ohm balanced Max Voltage Gain: Mic In to Main Out 95dB Line Inputs: ›10k ohm balanced Mix / Aux Outputs: 100 ohm balanced Monitor / Direct Outputs: 100 ohm ground compensated Headphone Output: To drive 8 ohm or greater - 1/4" and 1/8" connectors Insert Sends: 100 ohm unbalanced Insert returns: 10k ohm unbalanced USB Digital output: Stereo 16-Bit | Metering | Master Metering Four - 16-segment LED meters - Modes: Peak, Average, or Simultaneous Peak / Average Master Outputs (4) - Left / Right / Center / Mono Four - 8 Segment LED meters - Group Outputs (4) Solo Metering and Solo ON LED - Shares Center / Mono master meters Mono Input Channel Metering 6-Segment LED with multi-point clip warning | EQ Section | Low Cut Filter = 12dB/oct @ 20Hz - 400Hz Low Frequency EQ = +/- 15dB @ 80Hz Shelving Low Mid EQ = +/- 15dB @ 80Hz - 2kHz @ 1 octave BW High Mid EQ = +/- 15dB @ 400Hz - 8kHz @ 1 octave BW High Frequency EQ = +/- 15dB @12kHz Shelving | General | Channel Access: Insert Point: Post Low-Cut Filter / Pre-EQ Direct Out: Post Pre-Amp / Pre Low-Cut filter (default) | Dimensions (WxHxD) | With side panels and maximum height at rear: 46.92 x 8.987 x 23.324" (119 x 22.82 x 59.24cm) | Weight | 115 lb (52.16kg) | Package Weight | 138.0 lb | Box Dimensions (LxWxH) | 55.0 x 31.0 x 16.0" | |
The user manual for the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432 can be downloaded in .pdf
format if it did not come with your new sound reinforcement mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other APB DynaSonics users keep a unique electronic library
for APB DynaSonics sound reinforcement mixerss,
where you can use our link to download the user manual for the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432.
The user manual lists all of the functions of the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432,
all the basic and advanced features and tells you how to use the sound reinforcement mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from APB DynaSonics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the APB DynaSonics ProDesk-4 32 Input FOH Mixing Console PRODESK-432. User manuals are also
available on the APB DynaSonics website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
