User manual APC Back-UPS 350 (120V) BK350

Operating instructions and pdf manual for use - APC Back-UPS 350 (120V) BK350 User manual, User manual APC Back-UPS 350 (120V) BK350, APC, Back-UPS, 350, 120V, BK350, Video


User manual for APC Back-UPS 350 (120V) BK350

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
APC  Back-UPS 350 (120V) BK350
  • Manufacturer: APC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Power - UPS Backup
  • Safety instructions
  • Startup and operation of the ups backup
  • Tips for setting up your APC
  • Settings and expert assistance
  • Contact APC service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the APC Back-UPS 350 (120V) BK350, which address similar problems with connecting and setting up UPS Backup APC.



User manual for the APC Back-UPS 350 (120V) BK350

The user manual for the APC Back-UPS 350 (120V) BK350 provides necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

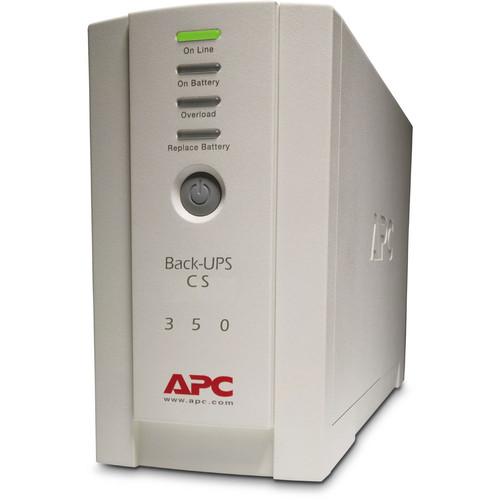

The APC Back-UPS 350 provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe via serial or USB connection, and built-in phone/fax/modem (DSL-compatible) connections protect systems from surges traveling on data lines. Providing power and protection for up to 6 devices, the Back-UPS 350 provides over 4 minutes of battery backup for loads of up to 210 watts. A hot-swappable, user-replaceable battery system makes servicing the Back-UPS 350 hassle-free, and the unit delivers battery powered AC. APC offers guaranteed protection from surges and spikes with their lifetime, $100,000 Equipment Protection Policy.
If you own a APC ups backup and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC Back-UPS 350 (120V) BK350 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for APC  Back-UPS 350 (120V) BK350Download user manual for APC Back-UPS 350 (120V) BK350
(PDF file, 0.13 MB)
Additional parameters of the APC Back-UPS 350 (120V) BK350:
Input Nominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 6 feet (1.83 meters)
Input voltage range for main operations: 98 - 140V
Output Output Power Capacity: 210 Watts / 350 VA
Max Configurable Power: 210 Watts / 350 VA
Nominal Output Voltage: 120V
Topology: Standby
Waveform Type: Stepped approximation to a sinewave
Output Connections: 3 x NEMA 5-15R (Battery Backup) 3 x NEMA 5-15R (Surge Protection)
Surge Energy Rating 1020 joules
Battery Type: Maintenance-free sealed lead-acid battery with leakproof suspended electrolyte
Replacement Battery Cartridge: RBC2
Typical Backup Runtime At Half Load: 18.1 minutes (105 watts)
At Full Load: 4.7 minutes (210 watts)
Audible Alarm Alarm when on battery, distinctive low-battery alarm, overload continuous tone alarm
Certifications FCC Part 68,TUV
Compatibility Mac OS X
Windows 7, Windows Home Server, Windows Vista, Windows XP
Environmental Requirements Operating
Temperature: 32-104F (0-40C)
Humidity: 0-95%
Altitude: 0-10,000 ft

Storage
Temperature: 5-113F (-15-45C)
Humidity: 0-95% non-condensing
Altitude: 0-50,000 ft
Dimensions (WxHxD) 3.6 x 6.5 x 11.2" (9.14 x 16.51 x 28.45 cm)
Weight 12.5 lbs (5.68 kg)
Equipment Protection Lifetime: $100,000
Conformance Regulatory Approvals FCC Part 68,TUV
Equipment protection policy
Lifetime : $100000
Environmental Compliance RoHS,REACH: Contains No SVHCs
Packaging Info
Package Weight 13.5 lb
Box Dimensions (LxWxH) 14.2 x 9.2 x 7.1"
The user manual for the APC Back-UPS 350 (120V) BK350 can be downloaded in .pdf format if it did not come with your new ups backup, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC ups backups, where you can use our link to download the user manual for the APC Back-UPS 350 (120V) BK350.

The user manual lists all of the functions of the APC Back-UPS 350 (120V) BK350, all the basic and advanced features and tells you how to use the ups backup. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC Back-UPS 350 (120V) BK350. User manuals are also available on the APC website under Computers & Solutions - Power - UPS Backup.
