User manual for the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145

The user manual for the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145 provides necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

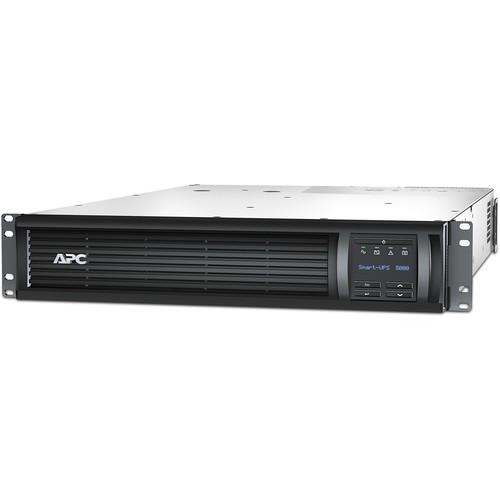

The black Smart-UPS 3000VA LCD 2U Rackmount with 12' Cord from APC provides power to your important computer components in the event of an electrical outage. With sine wave output it eliminates humming and heat generated, when powering tube lights and fans. The UPS's Boost and Trim Automatic Voltage Regulation (AVR) feature eliminates voltage fluctuations preventing AV signal degradation. Its LED indicators provide easy to read status of the unit and utility power conditions. With a predictive replace battery date, this UPS provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Its USB connectivity provides management of the UPS via a USB port.
If you own a APC ups backup and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145:
Output
Output Power Capacity 2700 W / 3000 VA
Maximum Configurable Power 2700 W / 3000 VA
Nominal Output Voltage 120 V
Waveform Type Sine wave
Output Connections 6 x NEMA 5-15R
2 x NEMA 5-20R
Input
Nominal Input Voltage 120 V
Input Frequency 50/60 Hz +/- 3 Hz (auto-sensing)
Input Connections NEMA L5-30P
Input Voltage Range for Main Operations: 82 - 144 V
Adjustable Range for Mains Operation: 75 - 154 V
Cord 12.0' (3.6 m)
Batteries and Runtime
Battery Type Maintenance-free sealed lead-acid battery with suspended electrolyte: leak-proof
Typical Recharge Time 3 hours
Replacement Battery RBC43
RBC Quantity 1
Efficiency 97.5% at 25% load
97.6% at 50% load
97.1% at 75% load
96.5% at 100% load
Communications & Management
Interface Ports USB
SmartSlot Interface Quantity 1 (available)
Control Panel LED status display with on line, on battery, replace battery, and overload indicators, Multi-function LCD status and control console
Audible Alarm On battery alarm
Distinctive low battery alarm
Overload continuous tone alarm
Surge Protection and Filtering
Surge Energy Rating 459 Joules
General
Rack Height 2U
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: 5 to 113°F (-15 to 45°C)
Relative Humidity Operating: 0 to 95%
Storage: 0 to 95%
Elevation Operating: 0 to 10000' (0 to 3000 m)
Storage: 0 to 50000' (0 to 15000 m)
Audible Noise At 3.3' (1.0 m) from Surface of Unit: 55.00 dBA
Online Thermal Dissipation 348.00 BTU/h
Conformance Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778
Compliance: RoHS, REACH (contains no SVHCs), PEP, EOLI
Equipment Protection $150,000 Lifetime
Dimensions (W x H x D) 18.9 x 3.4 x 26.9" (48.0 x 8.6 x 68.3 cm)
Weight 97.4 lb (44.3 kg)
Packaging Info
Package Weight 113.74 lb
Box Dimensions (LxWxH) 38.0 x 24.0 x 9.0"
The user manual for the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145 can be downloaded in .pdf format if it did not come with your new ups backup, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC ups backups, where you can use our link to download the user manual for the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145.

The user manual lists all of the functions of the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145, all the basic and advanced features and tells you how to use the ups backup. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' SMT3000R2X145. User manuals are also available on the APC website under Computers & Solutions - Power - UPS Backup.
