User manual for the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U
The user manual for the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

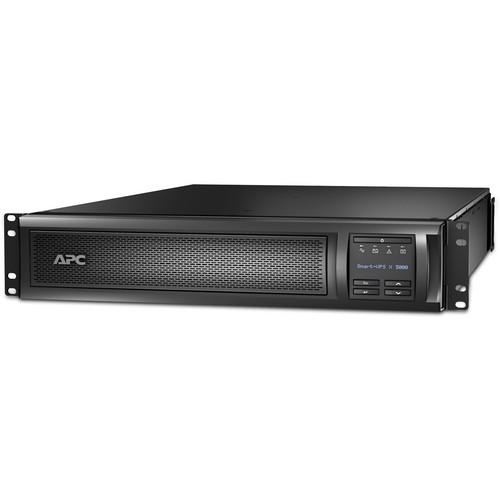

The APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V provides a continuous supply of battery power for connected devices in the event of an AC power loss. It also safeguards equipment from surges, spikes, lightning, and electrical disturbances. An on-board LCD display, available in multiple languages, gives you a comprehensive and precise readout on critical system functionality. A unique feature of this UPS is green mode which, by bypassing unused electrical components in good power conditions, saves energy costs while reducing the impact on the environment.
This UPS incorporates a notification process which will let you know the month and year that the battery is recommended for replacement so you can plan ahead of time. The system will also notify you if it detects a problem with the battery so you can take the proper measures before it fails completely. Thanks to hot-swap support you can replace the battery on the fly without interrupting the UPS' surge protection functionality.
This UPS features a USB connection that enables configuration and control from a PC. It also has a Smart-Slot for integrating the UPS into a network for remote accessibility. There's also an Automatic Voltage Regulator (AVR) which ensures clean and uninterrupted AC power by correcting low and high voltage conditions without using the battery.
This UPS features an intelligent battery management that prolongs battery life by using a charging method that takes into account the battery's age, capacity, temperature, and other factors. An automatic self-test function periodically checks the efficiency of the battery and provides notification when the battery is nearing the end of its usefulness. If the battery requires replacement it can be done easily without the need for tools. The system will also notify you if the battery is disconnected. An LED indicator lets you see at a glance power and battery status. The UPS also features an automatic restart function which will automatically power up devices after AC is restored.
|
If you own a APC ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U:
| Output | Output Power Capacity: 2700 Watts / 3000VA
Max Configurable Power: 2700 Watts / 3000VA
Efficiency at full Load: 98%
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Waveform Type: Sine wave
Output Connections: (3) NEMA 5-15R / (3) NEMA 5-20R / (1) NEMA L5-30R | | Input | Nominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA L5-30P
Cord Length: 8' (2.4 m)
Transfer Time: 2-4 ms | | Battery | Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge time: 3 hour(s)
Replacement Battery: APCRBC117
RBC Quantity: 1
Runtime: 120 minutes at 250 watt load / 6 minutes at 2700 watt load
Extended Run Options: APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V | | Communication | Interface Port(s): SmartSlot
Available SmartSlot Interface Quantity: 1
Control Panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Emergency Power Off (EPO): Yes | | Surge Protection | Surge Energy Rating: 540 Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 | | Dimensions (HxWxD) | 3.4 x 17 x 26.3" (85 x 432 x 667mm) - 2U rack height | | Weight | 84.6 lbs (38.5kg) | | Environmental | Operating Environment: 32 - 104°F (0 - 40°C)
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-9843' (0-3000 m)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-49212' (0-15000 m)
Audible Noise at 3.3' (1 m) from surface of unit: 55 dBA
Online Thermal Dissipation: 276 BTU/hr | | Conformance | Regulatory Approvals: BSMI, CSA, FCC Part 15 Class A, UL 1778,VCCI
Equipment Protection Policy: Lifetime : $150000 | | Compliance | RoHS 7b Exemption,REACH: Contains No SVHCs | | Topology | Line Interactive | | Package Weight | 104.0 lb | | Box Dimensions (LxWxH) | 33.0 x 23.5 x 9.5" | |
The user manual for the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U can be downloaded in .pdf
format if it did not come with your new ups backup, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other APC users keep a unique electronic library
for APC ups backups,
where you can use our link to download the user manual for the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U.
The user manual lists all of the functions of the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U,
all the basic and advanced features and tells you how to use the ups backup.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from APC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000RMLV2U. User manuals are also
available on the APC website under Computers & Solutions - Power - UPS Backup.
