User manual for the Aphex Channel - Master Preamp and Input Processor CHANNEL
The user manual for the Aphex Channel - Master Preamp and Input Processor CHANNEL provides
necessary instructions for the proper use of the product Pro Audio - Recording - Channel Strips.

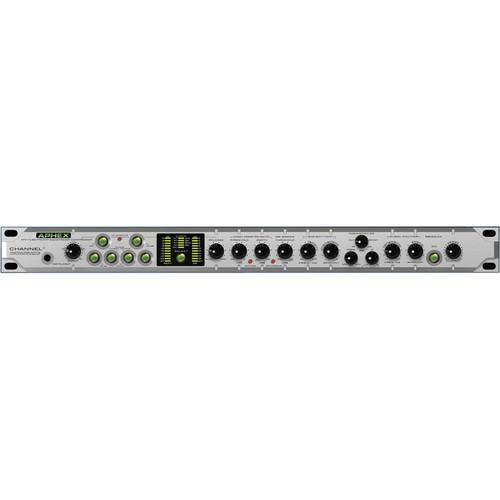

The Aphex Channel is a fully featured, single-channel microphone preamp and channel strip that offers high-quality sound and a wide variety of signal processing. The 1U unit is a re-imagined version of the company's 230 preamp, and is designed for professional studio, stage, and broadcast applications. It sports an array of I/O including XLR mic and 1/4" instrument inputs; XLR and 1/4" outputs; AES/EBU, S/PDIF, and TOSLink digital outputs; and Wordclock in and out. Balanced 1/4" insert send-and-return jacks allow for patching in external processors.
The preamp is Aphex's patented Reflected Plate Amplifier (RPA) type, designed to provide ultra-wide bandwidth and maximum gain and headroom. It features a transformerless design, and contains a second-stage 12AT7/ECC81 Dual Triode tube.
The Channel is also equipped with six built-in processors including several patented Aphex effects. You get the Aural Exciter, for dialing in additional presence and clarity to the signal; Big Bottom, which provides deeper and more resonant bass; the EasyRider Class A compressor, featuring automatic adjustment of attack and release parameters based on the characteristics of the input signal; and the Logic Assisted Gate, which helps eliminate false triggers, clicks, and chattering. In addition, there's a fully parametric EQ band for adjusting the midrange frequencies between Big Bottom and the Aural Exciter, and a de-esser.
|
If you own a Aphex channel strips and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Aphex Channel - Master Preamp and Input Processor CHANNEL in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Aphex Channel - Master Preamp and Input Processor CHANNEL:
| Number of Channels | Single | | Mic Input | Connector: XLR-3F
Preamp Type: Transformerless, NPN active balanced, tube second stage
Input Impedance: Mic: 2kΩ nominal
Maximum Input Level: +25 dBu
CMRR (Common Mode Rejection Ratio): >70 dB @ 60 Hz
Nominal Preamp Gain: 20 to 65 dB
Phantom Power: +48 VDC (switchable)
Pad: 20 dB
EIN (Equivalent Input Noise): -127 dBu (input shorted)
Tube Type: 12AT7/ECC81 Dual Triode | | Instrument Input | 1 x 1/4" TS phone
Impedance: 10mΩ nominal | | Outputs | 1 x XLR-3M (balanced/unbalanced)
1 x 1/4" TRS phone (unbalanced)
Output Impedance Balanced: XLR 66Ω
Output Impedance Unbalanced: 33 ohms (XLR); 600Ω (TRS)
Nominal Level: XLR +4 dBu; TRS -10 dBV
Maximum Output Level: +25 dBu Unloaded; TRS +11 dBV | | Compressor | Attack/Release: Program dependent, user-variable release baseline
Ratio: 4:1
Threshold: Fixed
Knee: Medium Hard | | Gate | Attack: 0.1 ms
Hold/Release: 300 ms/400 ms
Threshold: Variable -50 to +20 dB
Depth: Variable, 1 to 58 dB | | De-Esser | Attack: 0.1 ms
Release: 100 ms
Threshold: Variable -20 to +20 dB
Ratio: 5:1
Active Band: 4 kHz to 20 kHz Linkwitz-Riley 24 db/octave crossover | | Insert | Send: 1 x 1/4" TRS phone (balanced)
Return: 1 x 1/4" TRS phone (balanced)
Nominal Operating Level: 0 dBu
Point of Insertion: Between dynamics processing and equalizers | | Big Bottom | Frequency: 50 Hz to 280 Hz
Tune: Off to +12 dB | | Parametric Equalizer | Frequency Tune: 240 Hz to 8 kHz
Peak/Dip: ±12dB
Q Range:0.5 to 5 | | Aural Exciter | Frequency Tune: 500 Hz to 5 kHz
Mix: Off to +12 dB | | Frequency Response | 18 Hz to 24 kHz ±1 dB (flat) | | Digital Audio | Internal Sample Rates: 44.1, 48, 88.2, 96 kHz
External Sample Rates: Automatically syncs to any word clock between 32 and 96 kHz
Resolution: 24-bit
Word Clock Input: 1 x BNC, High Z, Captures
Word Clock Output: 1 x BNC, 75Ω, 5Vp-p
Dynamic Range: Digital dynamic range greater than analog front end
Noise Dither: Dithered by analog preamp noise floor. Equivalent to 16-bit digital audio dither
Level Equivalency: -20 dBFS Digital = +4 dBu Analog | | Power Requirements | 90-250 VAC 50-60 Hz 12 W | | Dimensions and Weight | Dimensions (WxDxH): 19 x 8.25 x 1.75" (48 x 21 x 4.5 cm)
Depth Behind Front Panel: 7.5" (19.05 mm) Weight: 6 lb (2.7 kg) Shipping Weight: 9 lbs (4.1 kg) | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 22.6 x 10.9 x 4.7" | |
The user manual for the Aphex Channel - Master Preamp and Input Processor CHANNEL can be downloaded in .pdf
format if it did not come with your new channel strips, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Aphex users keep a unique electronic library
for Aphex channel stripss,
where you can use our link to download the user manual for the Aphex Channel - Master Preamp and Input Processor CHANNEL.
The user manual lists all of the functions of the Aphex Channel - Master Preamp and Input Processor CHANNEL,
all the basic and advanced features and tells you how to use the channel strips.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Aphex service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Aphex Channel - Master Preamp and Input Processor CHANNEL. User manuals are also
available on the Aphex website under Pro Audio - Recording - Channel Strips.
