User manual for the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER

The user manual for the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Enhancers.

The Two-Channel Aphex Aural Exciter and Optical Big Bottom Effects Processor is a 1U 19" rack mountable post-processing effect designed to enhance details in your mix and add deep powerful low-end without unnecessary EQ boosting.

The device can be used in a wide variety of applications such as mixing in a recording studio, enhancing elements for live sound, adding clarity and intelligibility to installed sound setups, adding excitement to a DJ mix or karaoke session, and improving detail in audio for webcasting and Internet broadcasting.

The Aural Exciter processing circuit restores and recreates harmonics in the signal to enhance the differences in voicing and sonic details of a mix. Restoring the harmonics improves the clarity, presence, and intelligibility of the music. The device uses a Transient Discriminate Harmonics Generator to restore the harmonics over a wide range of signal inputs and program material.

The Big Bottom processing circuit provides a more powerful bass sound with increased density and sustain without boosting the peak output. Unlike bass-boost EQs or subharmonic generators that can increase the overload distortion of the signal, the Big Bottom circuit contours the bass response between 50 and 200 Hz to improve the perception of low frequencies.

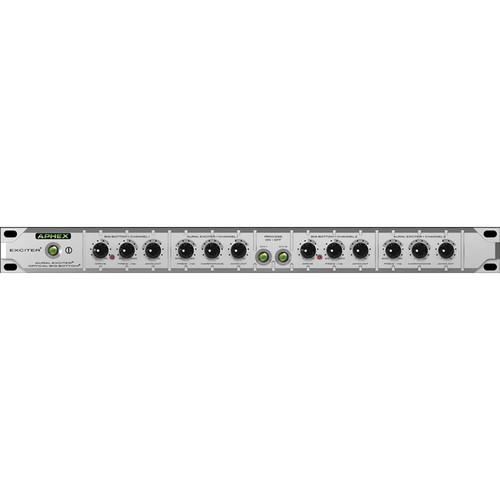

The front panel of the device features a power button, and process on and off buttons for channels 1 and 2. Both channels feature Drive, Freq-Hz selector (from 600 to 5,000 Hz), and Amount knob controls for the Aural Exciter circuit. Both channels 1 and 2 also feature Drive, Freq-Hz selector (from 50 to 200 Hz), and Amount knob controls for the Optical Big Bottom circuit.

The back panel of the device features 3-pin XLR female inputs and 1/4" inputs for channels 1 and 2. For outputs, channels 1 and 2 have both 3-pin XLR male and 1/4" output jacks. A switch allows you to change the operating level of channels 1 and channel 2 between +4 dBu and -10 dBV.
If you own a Aphex enhancers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITERDownload user manual for Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER
(PDF file, 0.55 MB)
Additional parameters of the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER:
Specifications
Input
Connector +4 dBu: 2 x 3-pin XLR female
2 x 1/4" phone jacks

-10 dBV: 2 x 3-pin XLR female
2 x 1/4" phone jacks
Type Transformerless, active balanced
Impedance +4 dBu: 40,000Ω balanced
20,000Ω unbalanced

-10 dBV: 40,000Ω balanced
20,000Ω unbalanced
Nominal Level +4 dBu

-10 dBV (-7.8 dBu)
Maximum Level +4 dBu: +27 dBu

-10 dBV: +12.5 dBV (+14.8 dBu)
CMRR +4 dBu: >40 dB

-10 dBV: >40 dB
Output
Connector +4 dBu: 2 x 3-pin XLR male
2 x 1/4" phone jacks

-10 dBV: 2 x 3-pin XLR male
2 x 1/4" phone jacks
Type Active balanced
Impedance +4 dBu: 112Ω balanced
56Ω unbalanced

-10 dBV: 112Ω balanced
56Ω unbalanced
Nominal Level +4 dBu

-10 dBV (-7.8 dBu)
Maximum Level +4 dBu: +27 dBu unloaded, +25dBu into 600Ω

-10 dBV: +12.5 dBV (+14.8 dBu)
Audio
Frequency Response +0.5 dB: 10 to 38,000 Hz
Dynamic Range 120 dB
Hum and Noise -93 dBu, unweighted 22 to 22,000 Hz
Crosstalk 10 to 22,000 Hz at -79 dB
THD 10 to 22,000 Hz at maximum output within 0.0003%
IMD 10 to 22,000 Hz at 0 max output within 0.0007%
Voltage Rating 100 to 240 V
Power Rating 12 W
Dimensions (W x H x D) 19 x 1.75 x 8.25" (482.6 x 445 x 209.6 mm)
Depth Behind front panel: 7.5" (190.5 mm)
Weight Rack mounted: 6.0 lb (2.7 kg)
Packaging Info
Package Weight 7.8 lb
Box Dimensions (LxWxH) 22.6 x 11.0 x 4.6"
The user manual for the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER can be downloaded in .pdf format if it did not come with your new enhancers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aphex users keep a unique electronic library for Aphex enhancerss, where you can use our link to download the user manual for the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER.

The user manual lists all of the functions of the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER, all the basic and advanced features and tells you how to use the enhancers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aphex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aphex Two-Channel Aural Exciter and Optical Big Bottom EXCITER. User manuals are also available on the Aphex website under Pro Audio - Live Sound - Enhancers.
