User manual for the Apogee Electronics Ensemble 30 x 34 ENSEMBLE THUNDERBOLT

The user manual for the Apogee Electronics Ensemble 30 x 34 ENSEMBLE THUNDERBOLT provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

Combining design elements from other Apogee products, the Ensemble Thunderbolt Audio Interface builds upon the company's reputation for high-gain preamplifier design and improves upon their transparent analog-to-digital and digital-to-analog conversion with the addition of an ultra-low latency 1.1 ms (96 kHz/32 buffer) 32-bit playback Thunderbolt signal path.

For inputs, the 1U rackmountable interface features eight microphone preamps with up to 75 dB of available gain using the company's Advanced Stepped Gain Circuitry - four rear panel XLR-3F connectors and four rear panel ¼" TRS/XLR-3F combo connectors. The preamps include line level Input channels 1 and 2 also included 1/4" Send and return loops.

The inputs include FET-based Soft-Limiting which can be enabled in the Apogee Maestro software and prevent digital clipping by instantaneously rounding off transient peaks before hitting the analog-to-digital converter. This allows several more decibels of apparent level to be recorded while also subtly proving an analog-tape-like warmth to the sound. Inputs can be selected using the front panel's grid of soft LED illuminated buttons. Pressing and holding the input select buttons will adjust parameters such as input type, +48v phantom power, Soft Limit, grouping, polarity invert, and hi-pass filtering.

The front panel features two Guitar I/O channels with class-A JFET inputs in a "bootstrapping" circuit design to reproduce the feel of vintage tubeamplifiers and preserve the tone and high frequency response of connected instruments by providing an ultra-high impedance load. Beneath the front panel guitar inputs are a pair of dual mode re-amp outputs for connecting to external effect processors such as stomp boxes or guitar amplifiers.

The dual mode switching allows you to easily record your direct guitar signal while also listening through an amplifier. You can then play the recorded guitar signal back through the amplifier to adjust tonality and microphone placement.

A built-in microphone capsule within the interface can be used for archiving your session, recording a "crushed room" sound when tracking drums, or for talkback when tracking musicians. Rear panel Word Clock IN and OUT connectors enable syncing other digital audio gear to the interface's high quality master clock.

For outputs the interface features 16 rear panel analog outputs in the form of two balanced 1/4" TRS monitor outputs and eight balanced line outputs on a D-Sub 25-pin connector. The front panel features two PurePower headphone outputs with separate volume controls for monitoring mixes. Monitoring can be configured between the two 1/4" outputs, one of three stereo speaker sets, or a 5.1 surround system.

The speaker and headphone levels are controlled with the dedicated knobs on the unit's front panel OLED display or with your Mac's volume controls. Four configurable buttons labeled A, B, C, and D can be assigned using a software drop-down menu to functions such as muting outputs, dimming outputs, engaging talkback, engaging a speaker set, or clearing meters.

With the addition of the unit's rear panel S/PDIF I/O and dual ADAT I/O connectors, the interface is capable of a total 30 inputs and 34 outputs. The interface also features optional direct hardware monitoring through Apogee's Maestro with only 0.6ms of latency (at 96 kHz with a 32 sample buffer).

The extraordinarily round trip latency of the converter is made possible by a proprietary Thunderbolt driver that was built from the ground up for Mac OS X Mavericks. Even in sessions that require higher buffer settings for DSP requirements, the ultra low latency of the interface prevents the compromise between power and speed.

The driver uses a 32-bit signal path from the output of the DAW into the unit's ESS Sabre32 32-bit Hyperstream DAC with Time Domain Jitter eliminator for low distortion audio with significant headroom and dynamic range. The interface also employs a Direct Memory Access (DMA) engine to more efficiently read and write data directly to Mac memory independently of the CPU.

Directly reading and writing a 32-bit signal from memory increases the driver's efficiency, lowers latency, provides a higher resolution signal, and frees up more CPU power for plug-ins. Apogee-designed power regulators are used throughout the interface's mic pre, A/D, and D/A circuitry for ultra-low noise operation.

The interface's dual rear-panel Intel Thunderbolt ports allow you to connect multiple high bandwidth peripherals to your Mac such as hard drive arrays, video capture devices, and Thunderbolt monitors with up to 4k resolution from a single port. The interface is designed in California and assembled in the U.S.A.

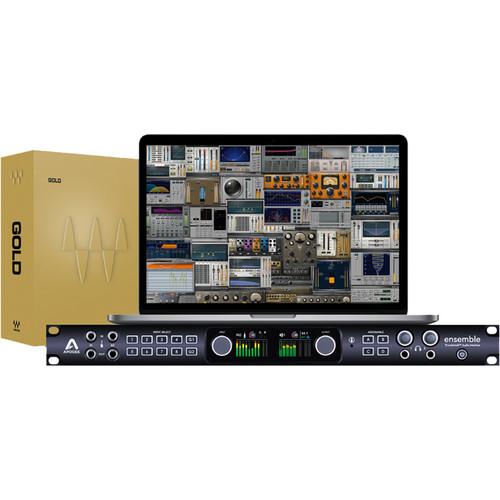

The interface comes with the Waves Gold Plugin Bundle which consists of 35 plug-ins that bring a wealth of mixing and mastering tools to your studio.
If you own a Apogee Electronics audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Apogee Electronics Ensemble 30 x 34 ENSEMBLE THUNDERBOLT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Apogee Electronics Ensemble 30 x 34 ENSEMBLE THUNDERBOLT:
Specifications
    System Requirements Computer: Thunderbolt-equipped Mac (iMac, Macbook Pro, Macbook Air, Mac Pro
    Memory: 2 GB RAM Minimum, 4 GB recommended
    OS: 10.9.3 or greater
    Connection: Any available Thunderbolt port on a Mac
    Analog Inputs 4x Combination mic/line/instrument inputs
    2x 1/4" balanced analog inserts
    4x XLR mic/line inputs
    2x 1/4" hi-z guitar/instrument inputs with Class-A JFET input stage
    Digital Inputs Optical In: Supports ADAT, SMUX & S/PDIF
    ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
    Coax In: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
    Word clock input on BNC connector
    Built-In Microphone Mono omnidirectional condenser capsule
    Mic Preamps 8x Mic Preamps
    Gain: Up to 75 dB and advanced stepped gain circuit design
    Selectable 48V phantom power, hi-pass filter, Soft Limit and polarity invert
    EIN: 129 dB (unweighted) @ 60 dB, 150 ohm input
    Max Input Level: +20 dBu
    Input Impedance: 3 kOhm
    Hi-Z Input Max Input Level: 14 dBu
    Input Impedance: >2 MOhm
    Insert Balanced Max Level: 20 dBu
    Guitar Input Re-Amp Out (Impedance Balanced): Max Level: 14 dBu
    Analog Outputs 2x 1/4" balanced monitor outputs
    8x balanced outputs on 1 DSUB 25-pin connector
    2x independent 1/4" stereo headphone outputs
    2x 1/4" dual-mode guitar/instrument outputs
    Digital Outputs Optical Out: Supports ADAT, SMUX & S/PDIF
    ADAT: 16 channels 44.1-48 kHz on 2 Toslink connectors
    SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
    S/PDIF: 4 channels, up to 96 kHz on 2 Toslink connectors
    Coax Out: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector
    Word clock Output on BNC connector
    Connections 2x Thunderbolt 2 ports
    Digital Audio Resolution 24-bit 192 kHz (max)
    A/D Conversion Max Input Level: (+4 dBu ref): +20 dBu
    Max Input Level: (-10 dBV ref): +6 dBv
    Input Impedance: 5 kOhm
    Frequency Response @ 44.1 kHz sample rate 10 - 20 kHz: +/- 0.2 dB
    Relative THD + N: -110 dB
    Dynamic Range: 119 dB (A-weighted)
    D/A Conversion Max Output Level: (+4 dBu ref): +20 dBu
    Max Output Level: (-10 dBV ref): +6 dBv
    Line Output Impedance: 90 Ohm
    Frequency Response @44.1 kHz sample rate 10-20 kHz: +/- 0.05 dB
    Relative THD + N: -114 dB
    Dynamic Range: 123 dB (A-weighted)

    Headphone Max Output Level: 19 dBu
    Headphone Relative THD + N into 600 Ohm: -109 dB
    Headphone Dynamic Range: 120 dB (A-weighted)
    Dimensions (W x D x H) 19.000 x 12.125 x 1.730" (48.260 x 30.798 x 4.394 cm)
    Weight 11.15 lb (5.058 kg)
    Packaging Info
    Package Weight 15.2 lb
    Box Dimensions (LxWxH) 22.3 x 16.8 x 7.2"
