User manual Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512
Operating instructions and pdf manual for use - Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512 User manual, User manual Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512, Apricorn, 512GB, Aegis, Padlock, Encrypted, USB,
User manual for Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512
We recommend checking out our discussion threads on the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512,
which address similar problems with connecting and setting up External Drives Apricorn.
User manual for the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512
The user manual for the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512 provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - External Drives.

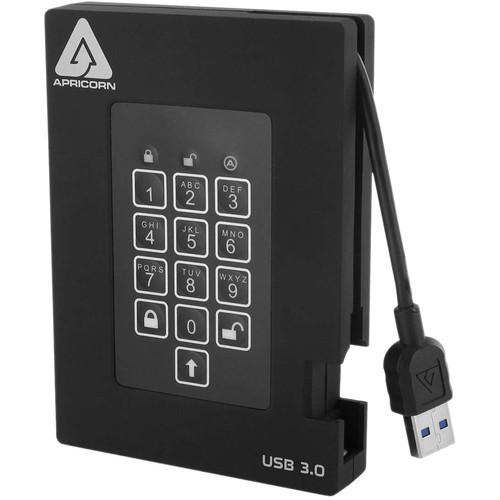

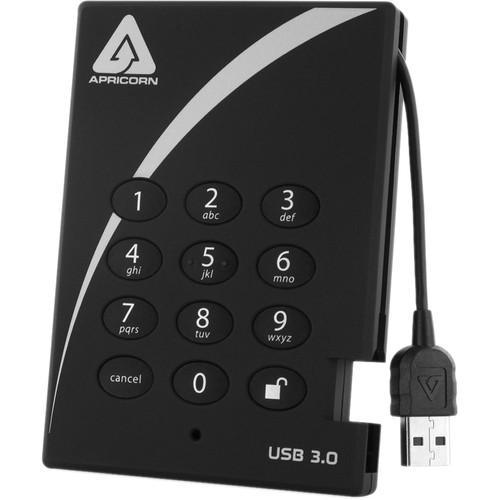

The 512GB Aegis Padlock Encrypted USB 3.0 Solid State Drive with PIN Access from Apricorn helps to provide advanced security measures within a compact form factor. Designed with a 512GB capacity that utilizes solid state technology and a USB 3.0 connection that allows data transfer rates up to 160 MB/s, this drive features military-grade FIPS PUB 197 encryption and 256-bit AES-XTS hardware encryption. Its keypad allows the drive to be accessed using a unique PIN, while the drive is further protected using drive reset and auto-lock features, as well as Brute Force Self-Destruct, Variable Timing Circuit (VTC) technology, and a wear resistant keypad. This drive is further protected from physical attacks using a tough epoxy coating, while a wear resistant keypad helps hide key usage from potential hackers.
This drive operates using USB bus power and is compatible with most operating systems, including Windows, Mac, and Linux. While it is USB 3.0 compatible, it is also compatible with USB 2.0 and 1.1. The Aegis Padlock is protected by a limited 3-year warranty and includes an integrated USB 3.0 cable, a travel pouch, and a Y-auxiliary USB 3.0 power cable. The Y-auxiliary cable helps to provide power by utilizing two USB ports when one port is not sufficient.
If you own a Apricorn external drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512:
Specifications
Capacity
512 GB
Data Transfer Rate
USB 3.0 - up to 160 MB/s read speed and 145 MB/s write speed
To achieve these data transfer speeds, your computer's internal drive must be solid state. In the case of your computer having a standard hard drive, the speed will be limited by your internal HDD
Power Supply
Bus Powered
Buffer Size
8 MB
Interface
USB 3.0
Average Seek Time
12 ms
Shock (Operating)
1,500 G / 0.5 ms
Approvals
FCC & CE
System Requirements
Compatible with most operating systems, including Windows, Mac, and Linux
Requires a USB port. For maximum speeds, use a USB 3.0 port. Also backwards compatible with USB 2.0 and 1.1
Dimensions
0.75 x 3.30 x 4.70" / 19.05 x 83.82 x 119.38 mm
Weight
6.2 oz / 175.8 g
The user manual for the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512 can be downloaded in .pdf
format if it did not come with your new external drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Apricorn users keep a unique electronic library
for Apricorn external drivess,
where you can use our link to download the user manual for the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512.
The user manual lists all of the functions of the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512,
all the basic and advanced features and tells you how to use the external drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Apricorn service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Apricorn 512GB Aegis Padlock Encrypted USB 3.0 A25-3PL256-S512. User manuals are also
available on the Apricorn website under Computers & Solutions - Drives & Storage - External Drives.
