User manual for the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF
The user manual for the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF provides
necessary instructions for the proper use of the product Photography - Underwater Photography - Still Cameras & Housings.

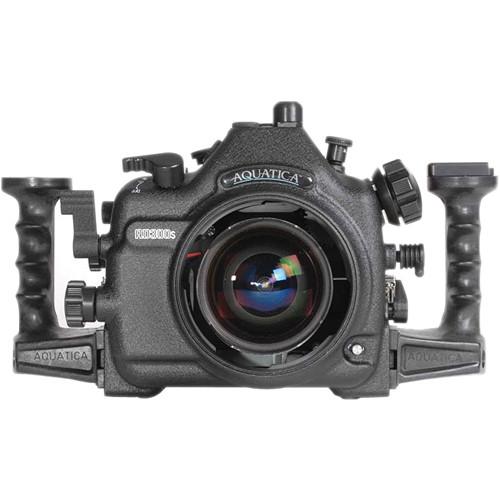

The AD300s Underwater Housing from Aquatica is a waterproof case enabling you to shoot beneath the surface with your Nikon D300s DSLR camera. It has a depth rating of 295', which is upgradeable to 426'. Mechanical controls provide easy access to virtually every single camera function, and dual ergonomic grip handles afford optimal handling and comfort. For convenience, vital functions can be accessed while keeping your hands on the grips.
The housing is made of aluminum, which has been anodized to military specifications to ensure superior corrosion resistance and then covered in a layer of weather and wear-resistant paint for even greater durability. The D300S ships without a required lens port, though various interchangeable bayonet-mount ports are available for wide-angle, macro, and zoom lenses. For full compatibility, see Port Chart and System Chart.

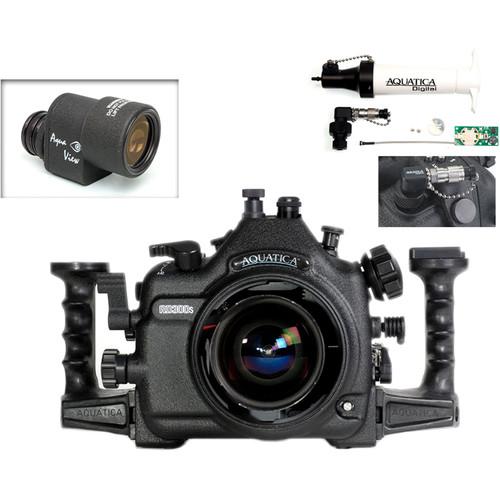

The housing has one optical and one Nikonos connector for the attachment of optional external strobes via fiber-optic cables and sync cords. The standard eyepiece offers a full view of the camera's optical viewfinder, and the included coated Aqua View Finder offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment.
If you own a Aquatica still cameras & housings and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF:
| Depth Rating || 295' / 90 m, upgradeable to 426' / 130 m |
| Control Type || Mechanical |
| Controls || Provide access to virtually every single camera function: |
shutter release, sub-command dial, power switch/illuminator, flash mode/exposure compensation/pop-up flash, focus/zoom control, focus mode selector, exposure mode selector, format button, reset, image quality/size, white balance, ISO, metering pattern selector, multi-selector center button, AE/AF lock and AF-on, main command dial, AF-area mode selector, info activation button, live view, OK, zoom magnifier, thumbnail/playback zoom, protect button, menu, playback, delete
| Construction || Made of anodized aluminum |
Treated with weather/wear-resistant paint
2x sacrificial zinc anodes on bottom to protect against corrosion
| Lens Port || Required and sold separately |
Various interchangeable, bayonet-mount dome and flat ports available for wide-angle, macro and zoom lenses
4.0" / 10.2 cm, 6.0" / 15.2 cm, 8.0" / 20.3 cm and 9.25" / 23.5 cm dome ports available
See port chart linked in overview
Select third-party ports may be used with Aquatica adapter (not included)
| Buoyancy || May vary with choice of lens port |
| External Strobe Connector || 1x optical and 1x Nikonos strobe connector |
| Viewfinder || Standard, coated optical viewfinder |
Coated, straight (180°) Aqua View Finder: 100% coverage, internal dioptric adjustment (included)
| Moisture Alarm || Optional alarm with audible signal and LED warning light |
| Mounting || 2x 1/4"-20 mounting holes on each grip for Technical Lighting Control / TLC base brackets or base balls, or other bases for strobe or video lighting arms |
1x 1/4"-20 mounting hole on top
3x accessory mounting holes on bottom
| Dimensions || With grips: 14 x 8.0 x 6.0" / 35.6 x 20.25 x 15.25 cm |
Without grips: 9.5 x 8.0 x 6.0" / 24.1 x 20.25 x 15.25 cm
| Weight || 7.3 lb / 3.3 kg |
The user manual for the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF can be downloaded in .pdf
format if it did not come with your new still cameras & housings, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Aquatica users keep a unique electronic library
for Aquatica still cameras & housingss,
where you can use our link to download the user manual for the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF.
The user manual lists all of the functions of the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF,
all the basic and advanced features and tells you how to use the still cameras & housings.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Aquatica service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Aquatica AD300s Underwater Housing for Nikon D300s 20064-HYB-VF. User manuals are also
available on the Aquatica website under Photography - Underwater Photography - Still Cameras & Housings.
