User manual for Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT

Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT
  • Manufacturer: Aquatica
  • Basic description and contents of package
  • Product classification: Photography - Underwater Photography - Still Cameras & Housings
  • Safety instructions
  • Startup and operation of the still cameras & housings
  • Tips for setting up your Aquatica
  • Settings and expert assistance
  • Contact Aquatica service
  • Troubleshooting
  • Warranty information
Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT
Click to enlarge image

We recommend checking out our discussion threads on the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT, which address similar problems with connecting and setting up Still Cameras & Housings Aquatica.



User manual for the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT

The user manual for the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT provides necessary instructions for the proper use of the product Photography - Underwater Photography - Still Cameras & Housings.

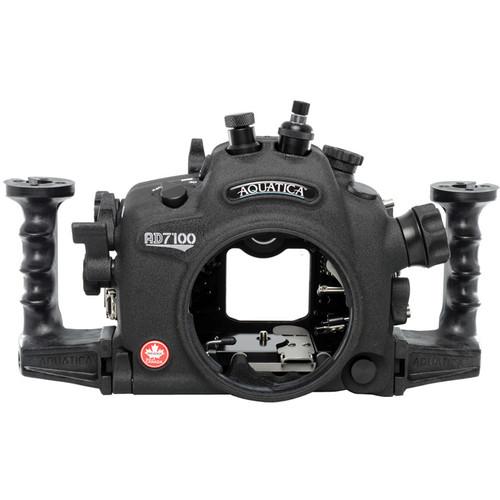

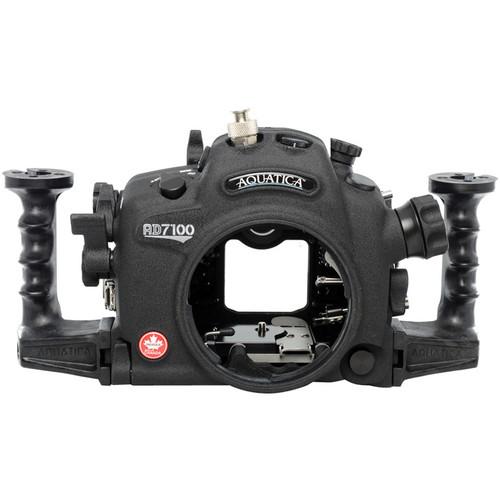

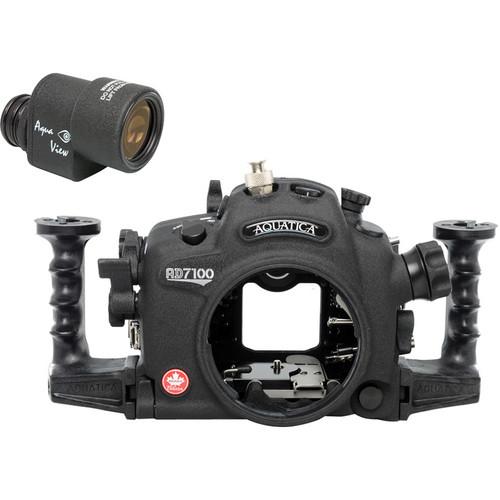

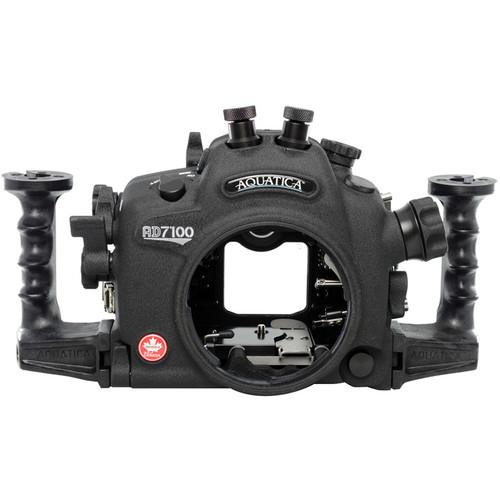

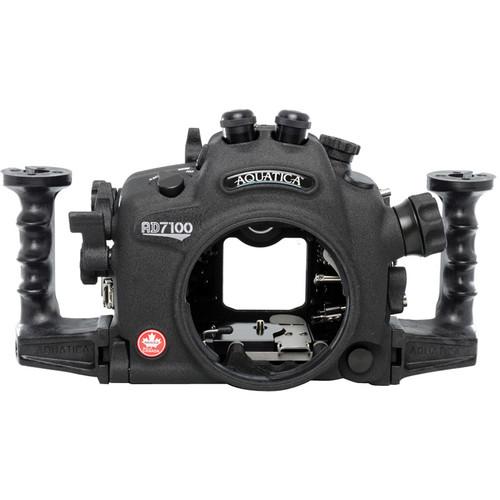

The AD7100 Underwater Housing from Aquatica is a waterproof case enabling you to shoot beneath the surface with your Nikon D7100 DSLR camera. It has a depth rating of 295', which is upgradeable to 426'. Mechanical controls provide easy access to virtually all camera functions, and dual ergonomic hand grips afford optimal handling and comfort. The standard, supplied Galileo-type eyepiece is a coated OVF offering a full view of the camera's viewfinder, and the optional coated Aqua View Finder offers an enlarged, enhanced view with 100% coverage, corner-to-corner sharpness, and dioptric adjustment..

The housing is made of aircraft-grade aluminum and stainless steel alloys, and precision-built using advanced, 5-axis, computer-assisted machines. Laser-cutting tools help achieve precise shaping. Anodizing the aluminum to North American military specifications ensures superior corrosion resistance. For further protection against the elements, the housing features corrosion-resistant zinc anodes and a tough, baked-on powder coating.

The AD7100 ships without a required lens port, though an array of interchangeable ports are available for wide-angle, macro and zoom lenses. For full compatibility, see Port Chart. The housing has an Ikelite TTL/manual connector for the attachment of optional external strobes via sync cords. These strobes can be connected to optional support arms, such as Aquatica's Technical Lighting Control arms, which can be conveniently mounted on the housing's grip handles. The housing body has an extra mounting point on top for a focus/video light or other accessory, and three additional mounting points underneath for various brackets or a tripod.
If you own a Aquatica still cameras & housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT:
Specifications
Depth Rating 295' (90 m), upgradeable to 426' (130 m)
Control Type Mechanical
Controls Provide access to virtually all camera functions: shutter release, movie record button, sub-command dial, main command dial, mode dial, power switch/illuminator lever, internal flash lowering lever, internal flash up/ flash mode & compensation button, metering, exposure compensation, release mode access knob, focus control, zoom control, lens release knob, AF mode selection, AF/M focus mode selection, AE-L/AF-L & AF-ON, Fn (Function) toggle lever, Fn (Function) button, multi-selector center / (OK), multi-selector button array, port release mechanism lever, live view mode, info, i button, rear LCD window, quality/size & zoom in button, white balance/protect/help, ISO/zoom out/reset, playback, menu, delete/format, release mode unlock
Construction Aircraft-grade, anodized aluminum and stainless steel alloys
Sacrificial zinc anodes
Locking latches with safety tab (one per side)
Lens Port Required and available separately
4-point bayonet type port mount
Interchangeable dome and flat ports accommodate various lenses from 4.5mm fisheye to 200mm macro
Buoyancy May vary with choice of lens port
External Strobe Connector Ikelite TTL/manual connector for attaching strobes via sync cords
Manual exposure control is available
Housing is ready to accept an optional third party TTL converter, which will enable TTL exposure
Viewfinder Standard, coated optical viewfinder
Optional coated Aqua View Finder:
Coverage: 100%
Rear viewing area: 1.5" (3.8 cm)
8 elements, 5 groups
Dioptric adjustment

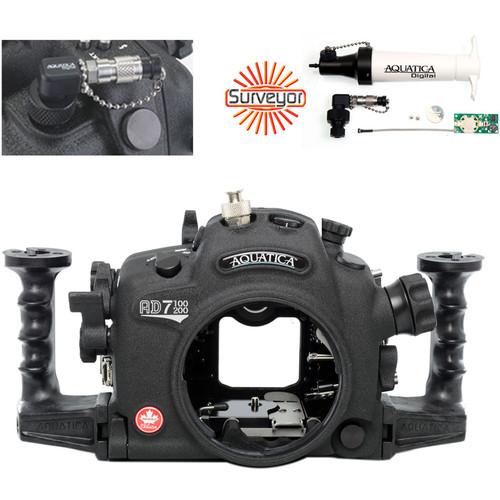

Moisture Alarm Optional
Mounting 4x 0.5" accessory holes
2x 1/4"-20 mounting holes on grips
1/4"-20 top accessory mounting hole
3x 1/4"-20 bottom mounting holes
16mm accessory access point
Camera mounting screw
Quick-release tray
Dimensions 13.6 x 7.1 x 6.0" (34.5 x 18 x 15.2 cm)
Weight 6.1 lb (2.75 kg)
The user manual for the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT can be downloaded in .pdf format if it did not come with your new still cameras & housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aquatica users keep a unique electronic library for Aquatica still cameras & housingss, where you can use our link to download the user manual for the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT.

The user manual lists all of the functions of the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT, all the basic and advanced features and tells you how to use the still cameras & housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aquatica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aquatica AD7100 Underwater Housing for Nikon D7100 20073-KT. User manuals are also available on the Aquatica website under Photography - Underwater Photography - Still Cameras & Housings.
