User manual Aquatica Water Wizard Housing 15500

Operating instructions and pdf manual for use - Aquatica Water Wizard Housing 15500 User manual, User manual Aquatica Water Wizard Housing 15500, Aquatica, Water, Wizard, Housing, 15500, Video


User manual for Aquatica Water Wizard Housing 15500

Aquatica  Water Wizard Housing 15500
  • Manufacturer: Aquatica
  • Basic description and contents of package
  • Product classification: Photography - Underwater Photography - Lighting Accessories
  • Safety instructions
  • Startup and operation of the lighting accessories
  • Tips for setting up your Aquatica
  • Settings and expert assistance
  • Contact Aquatica service
  • Troubleshooting
  • Warranty information
  • Price: 275 USD
We recommend checking out our discussion threads on the Aquatica Water Wizard Housing 15500, which address similar problems with connecting and setting up Lighting Accessories Aquatica.



User manual for the Aquatica Water Wizard Housing 15500

The user manual for the Aquatica Water Wizard Housing 15500 provides necessary instructions for the proper use of the product Photography - Underwater Photography - Lighting Accessories.

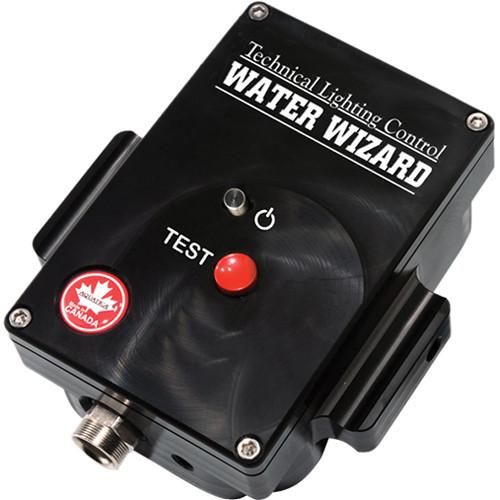

Synchronize your lighting above, on, and under the water by encasing your Pocket Wizard Plus III Radio Transceiver in the Water Wizard from Aquatica's Technical Lighting Control series. This waterproof housing protects your transceiver from harsh elements, allowing you to safely link and trigger multiple underwater strobes and top-side studio flashes. The Water Wizard features an Ikelite bulkhead connector, which interfaces with your camera housing or lighting units via user-supplied, commercially available sync and extension cords. This setup is compatible with any DSLR housing equipped with Nikonos or Ikelite-type strobe connectors.

This housing has a depth rating of more than 150', but since radio wave signals transmit poorly underwater, the Water Wizard is designed for surface use. When secured in the housing and floating on the surface, the transceiver can transmit or receive signals underwater from connected camera housings or lights over the distance of a 15' sync cord or above water up to 325' within a clear line of sight.

In shallow water, the device can be attached to a tripod or other support using 1/4”-20 threaded mounting holes located at the sides and bottom of the unit. In deeper water, winglet extensions on each side can accommodate Aquatica's optional buoyancy floats to keep the housing vertical on the water's surface, thus improving transmission.

Additionally, the Water Wizard can function as a remote camera trigger. To do this, you'll need Aquatica's optional remote control bulkhead (# 18738) and an internal remote cord compatible with your camera (# 19310 for a Nikon 10-pin remote socket, # 19311 for a Canon 3-pin remote socket), which connects to your camera's remote control terminal. Once this is set up, you'll be able to trigger the camera from a remote location.

Built for durability with stainless steel and PVC plastic parts, the Water Wizard is suitable for use in sports and activities such as outdoor photography, underwater adventure, extreme boating, surf photography, as well as research and industrial applications involving adverse weather or conditions that require lighting to be operated in the field without risk to equipment.
If you own a Aquatica lighting accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aquatica Water Wizard Housing 15500 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Aquatica  Water Wizard Housing 15500Download user manual for Aquatica Water Wizard Housing 15500
(PDF file, 1.32 MB)
Additional parameters of the Aquatica Water Wizard Housing 15500:
Waterproofing Waterproof to 150' / Designed for surface use
Control Type Electronic
Material of Construction Stainless steel, PVC plastic and electrostatically applied polyester powder coating
Buoyancy Neutral
External Strobe Connector Ikelite-type bulkhead connector
Sync and extension cords sold separately
Moisture Alarm None
Mounting 1/4”-20 threaded tripod mounting points on 3 sides
Optional buoyancy floats for deep water use
Dimensions 2.15 x 5.25 x 3.5" / 5.46 x 13.3 x 8.9 cm
Weight 1.10 lb / 500 g
Packaging Info
Package Weight 1.85 lb
Box Dimensions (LxWxH) 8.7 x 8.4 x 3.1"
The user manual for the Aquatica Water Wizard Housing 15500 can be downloaded in .pdf format if it did not come with your new lighting accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aquatica users keep a unique electronic library for Aquatica lighting accessoriess, where you can use our link to download the user manual for the Aquatica Water Wizard Housing 15500.

The user manual lists all of the functions of the Aquatica Water Wizard Housing 15500, all the basic and advanced features and tells you how to use the lighting accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aquatica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aquatica Water Wizard Housing 15500. User manuals are also available on the Aquatica website under Photography - Underwater Photography - Lighting Accessories.
