User manual Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB

Operating instructions and pdf manual for use - Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB User manual, User manual Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB, Areca, 16TB, Thunderbolt, ARC-5026, RAID, Storage, ARC-5


User manual for Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB

Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB
  • Manufacturer: Areca
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your Areca
  • Settings and expert assistance
  • Contact Areca service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB, which address similar problems with connecting and setting up Hard Drive Arrays Areca.



User manual for the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB

The user manual for the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

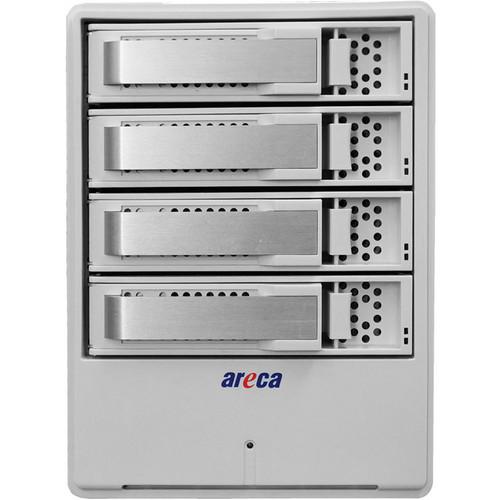

The 16TB Thunderbolt ARC-5026 RAID Storage from Areca features a large 16TB storage capacity made possible through the use of 4 x 4TB hard drives. These drives can be formatted in a variety of RAID configurations including RAID 0, 1, 3, 5, 6, and 10 along with Single Disk and JBOD. The versatile RAID configuration options ensure you can setup your storage array to provide extensive data backup or ultra fast data transfer and data backup speeds.

With both Thunderbolt and USB 3.0 interfaces, you benefit from enhanced performance and improved flexibility. Thunderbolt connectivity lets you move data between high-resolution displays and high-performance data devices through a single, compact port. A single cable attached to one of the ports provides 2 channels each capable of achieving data transfer rates of up to 10 Gb/s. Additionally, the integrated USB 3.0 port is also capable of enhanced data transfer rates of up to 5 Gb/s.
If you own a Areca hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB:
Capacity 16 TB
4 x 4 TB hard drives
Processor ARM-based storage I/O processor
RAM 1 GB on-board SDRAM with ECC protection
Cache Write-through or write-back cache support
SATA Ports 4 x internal SATA 6 Gb/s
RAID Levels RAID 0, 1, 10(1E), 3, 5, 6, single disk or JBOD
Drive Support Up to 4 x 6 Gb/s SATA/SSD
Host Connection 2 x Thunderbolt ports
1 x USB 3.0 port
Software Driver Mac OS X 10.6.x / 10.7.x / 10.8.x
Windows 7 / Windows 8
Operating Temperature 41 to 95°F / 5 to 35°C
Operating Humidity 10 to 85% non-condensing
Cooling Fan 1 x 7200 rpm / 0.135 A brushless fan
Power Supply 135 W / 100-240 V AC / +19 V / 7.1 A
System Requirements Computer with Thunderbolt/USB 3.0 connector
Mac OS X 10.6.8 or higher
Windows 7, Windows 8
Thunderbolt cable
Dimensions (WxHxD) 4.84 x 6.51 x 9.11" / 123.00 x 165.60 x 232.00 mm
Weight 8.0 lb / 3.6 kg (without disk)
Packaging Info
Package Weight 16.75 lb
Box Dimensions (LxWxH) 11.732 x 9.764 x 7.48"
The user manual for the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Areca users keep a unique electronic library for Areca hard drive arrayss, where you can use our link to download the user manual for the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB.

The user manual lists all of the functions of the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Areca service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Areca 16TB Thunderbolt ARC-5026 RAID Storage ARC-5026-16TB. User manuals are also available on the Areca website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
