User manual for the Arecont Vision AV5115DNV1 5 MP Compact H.264 IP AV5115DNV1
The user manual for the Arecont Vision AV5115DNV1 5 MP Compact H.264 IP AV5115DNV1 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

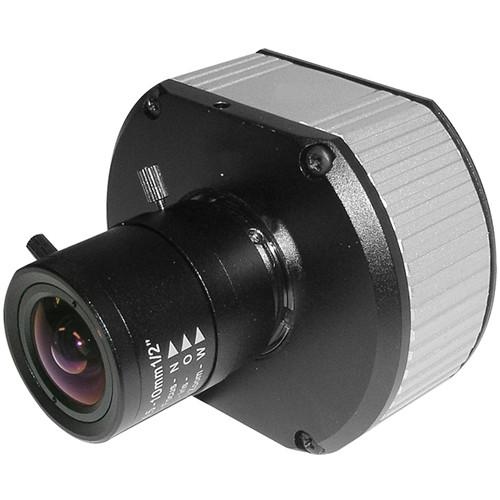

The Arecont Vision AV5115DNV1 5 MP Compact H.264 IP MegaVideo Day & Night Camera features a 1/2.5" 5 MP CMOS image sensor and records high-definition color videos at a resolution of up to 2592 x 1944. It is a true day and night camera that captures crisp and clear images in a minimum illumination of up to 0 lux thanks to the removable ICR (IR Cut Filter). It supports dual streaming in H.264 and MJPEG formats. It also features binning mode of data transfer for faster transmission rate.
If you own a Arecont Vision wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Arecont Vision AV5115DNV1 5 MP Compact H.264 IP AV5115DNV1 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Color: 0.3 lux @ f/1.4 non-binned mode 0.15 lux @ f/1.4 binned mode Day & Night: 0 lux, IR sensitive
Dynamic Range
70.1 dB
S/N Ratio
45 dB
Resolution
Full Field of View 2592 x 1944 @ 5 MP 1296 x 972 @ 1/4 resolution Cropped Field of View Flexible Cropping: Crop to 2 pixels in H.264 and 1 pixel in JPEG 1280 x 720 at HDTV-720p, 640 x 480 at VGA, 352 x 288 at CIF, 320 x 240 at SIF
Data Transmission
Video Frame Rate In Non-Binned Mode: Up to 14 fps @ 2592 x 1944 Up to 16 fps @ 2560 x 1600 Up to 21 fps @ 2048 x 1536 Up to 31 fps @ 1600 x 1200 Up to 29 fps @ 1920 x 1080 Up to 41 fps @ 1280 x 1024 In Binned Mode: Up to 34 fps @ 1286 x 972 Up to 41 fps @ 1280 x 800 Up to 46 fps @ 1024 x 768 Up to 64 fps @ 800 x 600, 860 x 540, and 640 x 512
Compression
H.264 (MPEG4, Part 10) / Motion JPEG 21 levels of quality
Protocol
RTSP, RTP/TCP, RTP/UDP, HTTP, and TFTP
Network Interface
100Base-T Ethernet
Streaming Capability
Multi-streaming: 8 non-identical streams
Electrical
General purpose opto-coupled input and output PoE (Power over Ethernet): 802.3af for camera Auxiliary Power: 12 to 48 VDC, 24 VAC Power Consumption: 5.59 W maximum
Compliance
Compliance: Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3 RoHS, REACH CE mark, UL listed
Compliance
PSIA and ONVIF conformant
Environmental
Operating Temperature: 23 to 122°F (-5 to 50˚C) Stable Image Temperature: 32 to 122°F (0 to 50˚C) Storage Temperature: -4 to 140°F (-20 to 60˚C) Humidity: 0 to 90% (non-condensing)
Dimensions (W x H x D)
3 x 2.5 x 1.25" (76 x 63.5 x 31.7 mm) without lens
