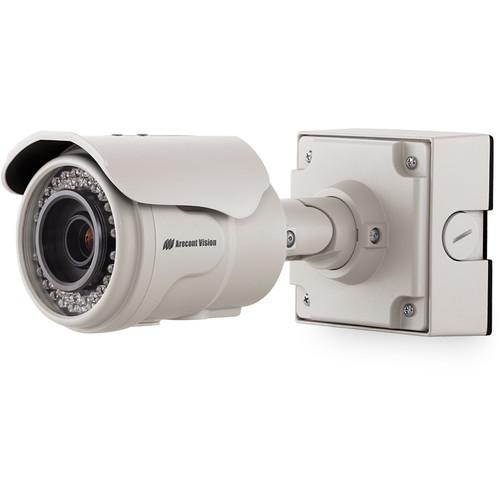

Click to enlarge image
We recommend checking out our discussion threads on the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR,
which address similar problems with connecting and setting up Wired IP Cameras Arecont Vision.
User manual for the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR
The user manual for the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

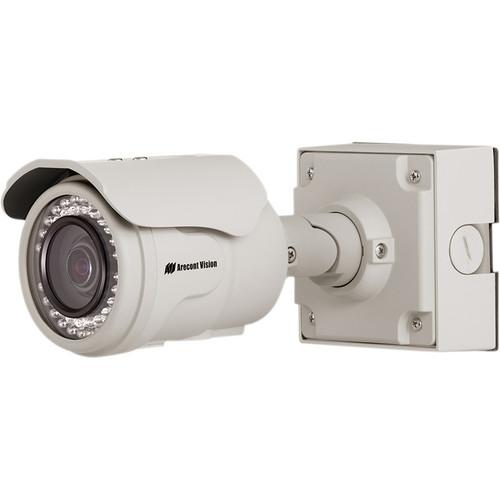

The MegaView 2 Series 10MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera with 4.7 to 9mm P-Iris Lens from Arecont Vision is capable of capturing images up to 3648 x 2752 at 7 fps and 1920 x 1080 at 25 fps with MegaVideo processing technology. It offers H.264 and MJPEG dual compression support with simultaneous streaming for reduced bandwidth and storage requirements while delivering full frame rates and resolution without sacrificing image quality. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, allowing lower bandwidth and storage relative to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others.
If you own a Arecont Vision wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR:
Specifications
Image Sensor
10 MP CMOS
Optical Format
1/2.3"
Pixel Pitch
1.67 μm
Minimum Illumination
Color (Day Mode): 0.42 lux Color Binning (Day Mode): 0.21 lux B/W (Night Mode): 0 lux, IR sensitive
Resolution
Full FOV: 3648 H x 2752 V 1/4 Resolution: 1824 H x 1376 V
Dynamic Range
57.2 dB
SNR
40 dB maximum
Frame Rates
At Maximum Resolution: 7fps (3648 x 2752) Cropped: 12 fps (2592 x 1944), 18 fps (2048 x 1536), 25 fps (1920 x 1080), & 37 fps (1280 x 1024) Binning Mode: 29 fps (1920 x 1080), 26 fps (1824 x 1376), 43 fps (1296 x 972), & 54 fps (1024 x 768)
Lens
Motorized 4.7 to 9 mm, 1/2.3", F1.5, RZ, RF, P-iris H-FOV: 37 to 78.8°
Compression Type
H.264 (MPEG-4, Part 10) / Motion JPEG 21 levels of quality
Protocols
RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
Network Interface
100Base-T Ethernet Network Interface
Multi-Streaming
8 non-identical streams
Compliance
Industry Standard: PSIA Conformant Listings: UL (CB) FCC Compliance: 47 CFR 15 Class A Environmental: RoHS, REACH, WEEE Markings: (CE) EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3, EN60950-1 Mechanical: IP66 (EN60529)
IR Illuminator
48 x 850 nm LEDs IR Angle: 50° (no external power required)
The user manual for the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Arecont Vision users keep a unique electronic library
for Arecont Vision wired ip camerass,
where you can use our link to download the user manual for the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR.
The user manual lists all of the functions of the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Arecont Vision service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Arecont Vision MegaView 2 Series 10MP Indoor/Outdoor AV10225PMIR. User manuals are also
available on the Arecont Vision website under Surveillance - Surveillance Video - Wired IP Cameras.
