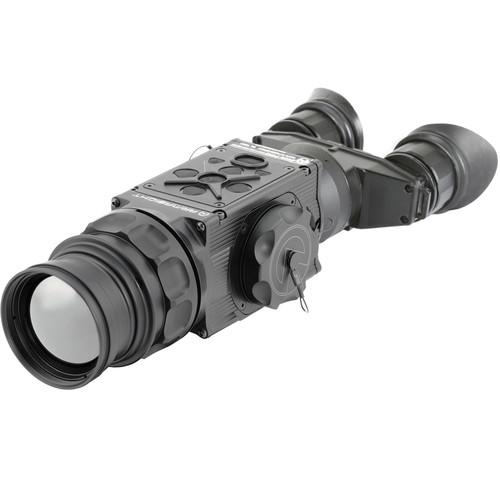

Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41
Click to enlarge image

We recommend checking out our discussion threads on the Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41, which address similar problems with connecting and setting up Thermal Scopes Armasight.



User manual for the Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41

The user manual for the Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Thermal Scopes.

See through smoke, fog, and dust, day or night, with the Helios 336 4-16x42 Thermal Bi-Ocular from Armasight. Its FLIR Tau 2 uncooled microbolometer detects long-wave infrared and allows you to see heat emanating from humans, animals, jet or combustion engines. It also offers visibility in total darkness through fog, smoke, foliage, and dust. The sensor has resolution of 336x256, 17µm pixel size, and refresh rate of 60 Hz. The optical system features a 50mm f/1.4 germanium lens with 3.3x magnification with the default NTSC format and digital zoom of up to 4x. To help you with aiming and fast target acquisition, this device offers a multi-color digital reticle.

The built-in AMOLED SVGA 060 video display features 800x600-pixel resolution and allows several viewing palettes: White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the 9-pin connector cable for updating the device software and to relay videos. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms. This imager also features Bluetooth compatibility, a wireless remote control, digital compass, digital inclinometer, and a battery status indicator.

To withstand rigors of the battlefield, this device can operate in extreme temperatures and has a durable waterproof and fog-resistant aluminum housing. In addition to handheld operation, you can mount it on Picatinny or Weaver-style rails via the included mount.
If you own a Armasight thermal scopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Armasight Helios Pro 336 4-16x50 Thermal TAT176BN5HPRO41:
Specifications
Array Configuration 336x256 FLIR Tau 2
Spectral Range 7-14 µm
Pixel Size 17 µm
Resolution 0.34 mrad
Refresh Rate 60 Hz
Magnification NTSC: 3.3x
PAL: 4x
Digital zoom: 1x, 2x, 4x
Angle of View 6.5 x 5°
Lens System 50mm, f/1.4
Minimum Focus Distance 16.4' / 5 m
Eye Relief 16 mm
Exit Pupil 14 mm
Display 800x600 AMOLED SVGA 060
Diopter Adjustment ±5
Battery / Runtime 4 x CR-123A Lithium Batteries / Runtime: 7 h maximum
4 x AA Lithium Batteries / Runtime: 7 h maximum
External Power Supply: 6 V, 600 mAh
Operating Temperature -59 to 134°F (-51 to 57°C)
Storage Temperature -70 to 185°F (-57 to 85°C)
Weatherproofing Waterproof and fog-resistant
Dimensions 9.5 x 4 x 2.4" (241 x 102 x 60 mm)
Weight 37 oz (1.05 kg)
