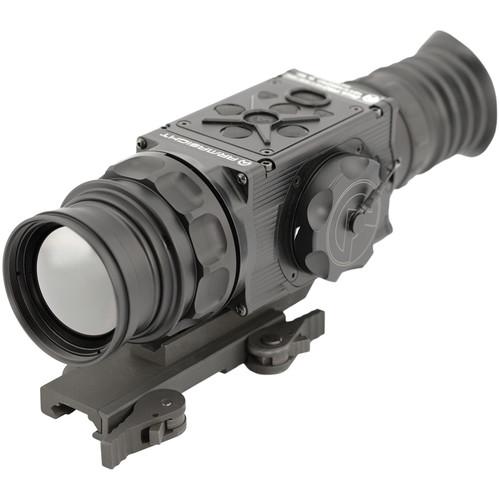

Equipped with an uncooled 640x512 FLIR Tau 2 VOx microbolometer, the Zeus Pro 640 2-16x50 Thermal Imaging Weapon Sight from Armasight allows users to detect targets emitting invisible to the naked eye long wavelength infrared light during day or night. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust.
You can view thermal profiles of your targets on a built-in AMOLED SVGA 060 color display or relay videos through a VGA video output port for viewing on an external monitor or for recording. The user-friendly menu allows you to choose between image filtering options and image processing functions that provide different color modes: White Hot, Black Hot, Rainbow, and Various Colors. Additionally, the included remote control allows for a wireless operation.

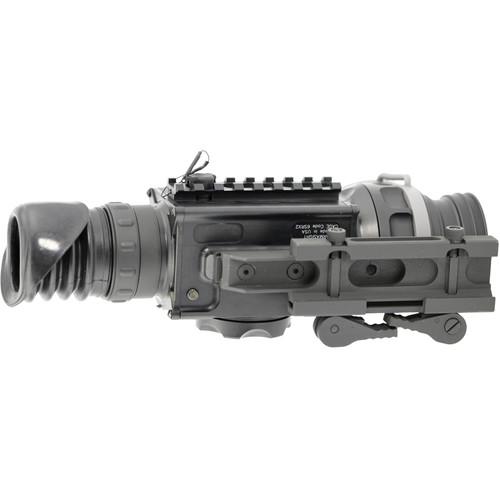

The aluminum alloy housing is durable, waterproof, and submersible to 66' for two hours. To provide a sure operation, all adjustment rings are knurled. The sight has a quick-release Picatinny mount and can also accommodate additional accessories on a short Picatinny rail located on the right side. Other construction details include a tethered protective objective lens cap, long eye relief, and a rubber winged eye guard.
If you own a Armasight thermal scopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Armasight Zeus Pro 640 2-16x50 Thermal Imaging TAT163WN5ZPRO21 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Armasight Zeus Pro 640 2-16x50 Thermal Imaging TAT163WN5ZPRO21:
Specifications
Array Configuration
640x512 FLIR Tau 2 VOx detector
Pixel Size
17 µm
Refresh Rate
30 Hz
Magnification
2-16x
Lens System
50mm, f/1.4
Minimum Focus Distance
16.4' (5 m)
Display
800x600 AMOLED SVGA 060 color display
Power Source
4 x CR-123A (3V) batteries 4 x AA (1.5) batteries
Runtime
7 hr
Operating Temperature
-59 to 134°F (-51 to 57°C)
Storage Temperature
-70 to 185°F (-57 to 85°C)
Weatherproofing
Waterproof, submersible to 66' (20 m) for 2 hr max
Dimensions
7.5 x 3 x 3" (197 x 76 x 76 mm)
Weight
33.5 oz (950 g)
