User manual Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR

Operating instructions and pdf manual for use - Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR User manual, User manual Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR, Arri, L7-DT, 7, Daylight, LED, Fresnel, with, Active, L1.3


User manual for Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR

Arri L7-DT 7
  • Manufacturer: Arri
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your Arri
  • Settings and expert assistance
  • Contact Arri service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR, which address similar problems with connecting and setting up LED Lights Arri.



User manual for the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR

The user manual for the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

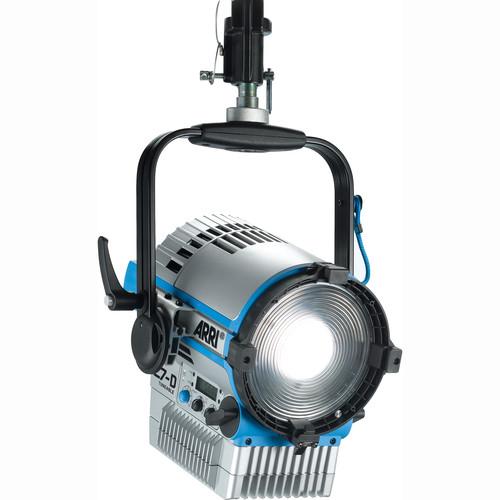

ARRI continues to refine its L-Series with the L7-DT 7" Daylight LED Fresnel with Active Cooling. The key characteristic of any Fresnel is flood to spot capability and the L7-DT offers an impressive beam angle adjustment of 15-50°.
If you own a Arri led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Arri L7-DT 7Download user manual for Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR
(PDF file, 0.79 MB)
Additional parameters of the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR:
Light Source LED
Type 6.88" (175 mm) Fresnel
Beam Angle 15 - 50° (Half peak angle)
Rating 1,000 W
Power Consumption 180 V Nominal, 220 W maximum
Color Range 5,000K - 6,500K Continuously variable correlated color temperature
Full minus green to full plus green adjustment

Tolerance: +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal)
Estimated lifetime color shift: < 200K
Lamp Life 50,000 hours
CRI 92
Dimming Range 100 - 0%
Operating Voltage 90-250 VAC, 50/60 Hz
IP Rating IP20
Cooling Active, fan stays on while in use
Operating Temperature -4 to 113°F (-20 to +45°C)
Control 5-Pin DMX in and through, on-board controller
Mini-USB: DMX setup, fixture status and firmware upgrade through PC software
Remote Device Management (RDM): DMX setup, hour counter and standard RDM commands
Power Connections Bare ends
Tilt +/- 90°
Mount Pole operated with 1 1/8" (28 mm) Junior pin
Certification and Compliance CE, GS, FCC, cNRTL, CB, ISO9001:2000
Finish Black
Dimensions Full flood position w/ yoke w/o Junior pin: 17.6 x 13.9 x 13.8" (448 x 352 x 351 mm)
Full spot position w / yoke, w/o Junior pin: 17.6 x 13.9 x 18" (448 x 352 x 456 mm)
Lens diameter: 6.88" (175 mm)
Accessory size: 7.7" (196 mm)
Weight 21.6 lb (9.8 kg)
The user manual for the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Arri users keep a unique electronic library for Arri led lightss, where you can use our link to download the user manual for the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR.

The user manual lists all of the functions of the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Arri service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Arri L7-DT 7" Daylight LED Fresnel with Active L1.31535DR. User manuals are also available on the Arri website under Lighting & Studio - Continuous Lighting - LED Lights.
