User manual for the Arri L7-TT 7" Tungsten LED Fresnel with Active L1.31530TC
The user manual for the Arri L7-TT 7" Tungsten LED Fresnel with Active L1.31530TC provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

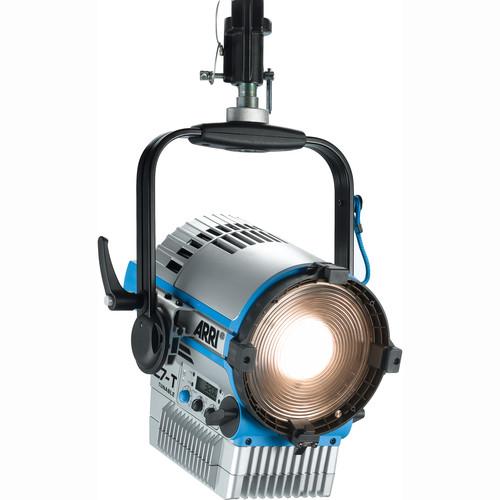

ARRI continues to refine its L-Series with the L7-TT 7" Tungsten LED Fresnel with Active Cooling. The key characteristic of any Fresnel is flood to spot capability and the L7-TT offers an impressive beam angle adjustment of 15-50°.
If you own a Arri led lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Arri L7-TT 7" Tungsten LED Fresnel with Active L1.31530TC in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Arri L7-TT 7" Tungsten LED Fresnel with Active L1.31530TC:
Specifications
Light Source
LED
Type
6.88" (175 mm) Fresnel
Beam Angle
15 - 50° (Half peak angle)
Rating
1,000W
Power Consumption
160V Nominal, 220W maximum
Color Range
2,600K - 3,600K Continuously variable correlated color temperature Full minus green to full plus green adjustment
Tolerance: +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal) Estimated lifetime color shift: < 200 K
Lamp Life
50,000 Hours
CRI
94
Dimming Range
100 - 0%
Operating Voltage
90-250VAC, 50/60Hz
IP Rating
IP20
Cooling
Active, fan stays on when in use
Operating Temperature
-4 to 113°F (-20 to +45°C)
Control
5-Pin DMX in and through, on-board controller Mini-USB: DMX setup, fixture status and firmware upgrade through PC software Remote Device Management (RDM): DMX setup, hour counter and standard RDM commands
Power Connections
Bare ends
Tilt
+/- 90°
Mount
Hanging with 1 1/8" (28 mm) Junior pin
Certification and Compliance
CE, GS, FCC, cNRTL, CB, ISO9001:2000
Finish
Silver/Blue
Dimensions
Full flood position w/ yoke w/o Junior pin: 16.6 x 14.7 x 13.7" (423 x 374 x 349 mm) Full spot position w / yoke, w/o Junior pin: 16.6 x 14.7 x 17.8" (423 x 374 x 454 mm) Lens diameter: 6.88" (175 mm) Accessory size: 7.7" (196 mm)
Weight
18 lb (8.2 kg)
