User manual ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT

Operating instructions and pdf manual for use - ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT User manual, User manual ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT, ART, DUALZDirect, Professional, Dual-Channel,


User manual for ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT

ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT
  • Manufacturer: ART
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Direct Boxes
  • Safety instructions
  • Startup and operation of the direct boxes
  • Tips for setting up your ART
  • Settings and expert assistance
  • Contact ART service
  • Troubleshooting
  • Warranty information
  • Price: 40 USD
We recommend checking out our discussion threads on the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT, which address similar problems with connecting and setting up Direct Boxes ART.



User manual for the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT

The user manual for the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT provides necessary instructions for the proper use of the product Pro Audio - Recording - Direct Boxes.

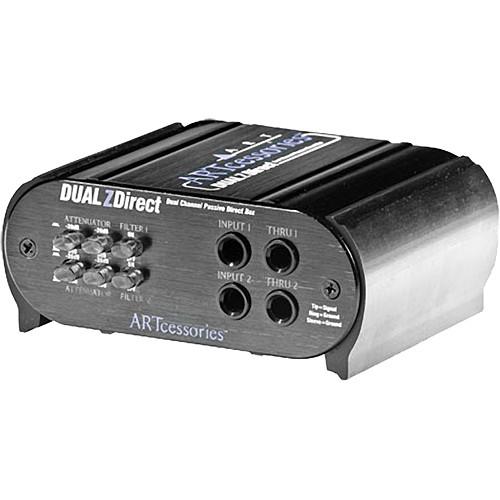

The DUALZDirect is a professional, two-channel, passive direct box that converts instrument, line, and speaker-level sources, via transformer, into signals compatible with balanced, low-impedance devices such as mixers and audio interfaces.

Both channels are totally independent and have identical features. These include attenuator switches that pad the inputs by -20 or -40 dB, and ground-lift switches that fully isolate each input from the chassis and the output to help eliminate hum and ground-loop noise.

You also get phase invert switches, 1/4" pass-through jacks, and switchable low-pass filters. The latter attenuate -3 dB at 30 kHz, and are designed to reduce radio-frequency interference (RFI) and digital computer noise. Combine all that functionality with a solid, black-anodized aluminum case, and you've got a handy and road-worthy direct box.
If you own a ART direct boxes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECTDownload user manual for ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT
(PDF file, 0.05 MB)
Additional parameters of the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT:
Type Passive, Dual
Input Connections 2 x 1/4" TRS phone (unbalanced); 50kΩ
Output Connectors 2 x XLR male; 600Ω
2 x 1/4" TRS phone (pass through)
Frequency Response 10 Hz - 50 kHz, ± 0.5 dB @ +4 dBu
THD 0.01% typical @ 1 kHz, +18 dBu / <.05% @ 100 Hz, +18 dBu
Channel Separation > 80 dB (typical)
Controls 2 x Low-Pass Filter (switchable); -3 dB @ 30 kHz
2 x Input Attenuation (switchable); (0, -20, -40 dB)
2 x Phase Invert (switchable)
2 x Ground Lift (switchable)
Dimensions (WxDxH) 4.6 x 3.9 x 1.85" (117 x 99 x 47 mm)
Weight 0.88 lbs (0.40 kg)
Packaging Info
Package Weight 1.15 lb
Box Dimensions (LxWxH) 13.1 x 6.5 x 2.2"
The user manual for the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT can be downloaded in .pdf format if it did not come with your new direct boxes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ART users keep a unique electronic library for ART direct boxess, where you can use our link to download the user manual for the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT.

The user manual lists all of the functions of the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT, all the basic and advanced features and tells you how to use the direct boxes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ART service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ART DUALZDirect - Professional Dual-Channel Passive DUALZDIRECT. User manuals are also available on the ART website under Pro Audio - Recording - Direct Boxes.
