User manual ART SMS226 - Speaker Management System SMS226

Operating instructions and pdf manual for use - ART SMS226 - Speaker Management System SMS226 User manual, User manual ART SMS226 - Speaker Management System SMS226, ART, SMS226, Speaker, Management, System, SMS226, Video


User manual for ART SMS226 - Speaker Management System SMS226

ART  SMS226 - Speaker Management System SMS226
  • Manufacturer: ART
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - System Processors
  • Safety instructions
  • Startup and operation of the system processors
  • Tips for setting up your ART
  • Settings and expert assistance
  • Contact ART service
  • Troubleshooting
  • Warranty information
  • Price: 459 USD
We recommend checking out our discussion threads on the ART SMS226 - Speaker Management System SMS226, which address similar problems with connecting and setting up System Processors ART.



User manual for the ART SMS226 - Speaker Management System SMS226

The user manual for the ART SMS226 - Speaker Management System SMS226 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - System Processors.

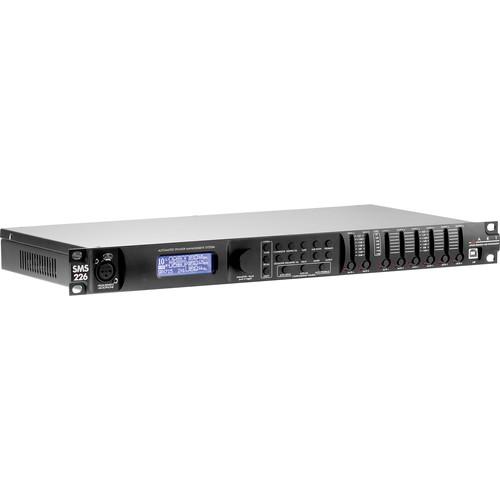

The ART SMS226 - Speaker Management System is a 1RU signal processor optimized for operation in a wide range of live sound reinforcement applications. The unit features two XLR balanced audio inputs and six XLR balanced outputs that allow the device to be configured as a 2x2, 2x2 +sub, 2x3, 1x4, 1x5, or 1x6 PA management system. An additional front panel XLR microphone input enables the direct connection of a measurement microphone.

Stereo processing blocks include 1/3 octave graphic EQ, RMS compressor, noise gate, phase, feedback suppression and a sub-harmonic generator with up to 500 ms delay for low frequency reinforcement. Mono processing blocks include crossover filters, delay, parametric EQ, limiter, level and phase control.

The Graphic EQ can be quickly configured using the Auto-EQ function and the included measurement microphone. The front panel user interface includes a graphic LCD and an array of mute switches located under LED meters for each input and output channel. A USB connector allows the user to control all functions remotely, perform software updates, and set presets. PC software and driver discs are included.
If you own a ART system processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ART SMS226 - Speaker Management System SMS226 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ART SMS226 - Speaker Management System SMS226:
Specifications
    Input 2x XLR-3F balanced line input
    1x XLR-3F reference microphone input
    Output 6x XLR-3M balanced outputs (3 stereo pairs)
    USB 2.0
    Max Input +20 dBu
    Max Output +2 dBu balanced
    Frequency Response 10 to 20,000 Hz
    Dynamic Range >115 dB
    THD <0.005% (typical)
    Crossover Slope Butterworth, Bessel and Linkwitz-Reily, 6 to 24 dB per octave
    Power Requirements 90 to 250 VAC, 50 to 60 Hz, 800 mA
    Dimensions (H x W x D) 1.75 x 19.0 x 9.00" (4.45 x 48.26 x 22.86 cm)
    Weight 6.30 lb (2.86 kg)
    Packaging Info
    Package Weight 7.95 lb
    Box Dimensions (LxWxH) 20.9 x 11.9 x 3.7"
    The user manual for the ART SMS226 - Speaker Management System SMS226 can be downloaded in .pdf format if it did not come with your new system processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ART users keep a unique electronic library for ART system processorss, where you can use our link to download the user manual for the ART SMS226 - Speaker Management System SMS226.

    The user manual lists all of the functions of the ART SMS226 - Speaker Management System SMS226, all the basic and advanced features and tells you how to use the system processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ART service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ART SMS226 - Speaker Management System SMS226. User manuals are also available on the ART website under Pro Audio - Installation Sound - System Processors.
