User manual for the Arturia AudioFuse 14x14 Audio Interface (Silver) 810101_S

The user manual for the Arturia AudioFuse 14x14 Audio Interface (Silver) 810101_S provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

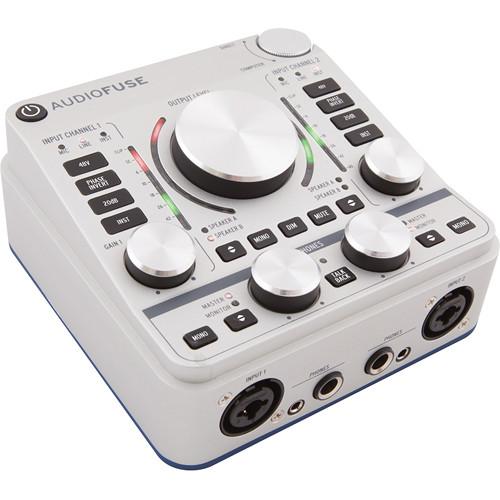

The silver AudioFuse from Arturia is a 14 x 14 audio interface created for the discerning professional who requires the sound of a high-end analog console with the flexibility of a solid mobile interface. The AudioFuse was designed from the ground up utilizing DiscretePRO microphone preamps, which rely on a discrete component topology to achieve studio-quality performance. A temperature-compensated oscillator controls the reference clock to ensure jitter free analog-to-digital conversion and provide remarkable transparency at sampling rates up to 192 kHz. There are no menus to dive through as every function is a single layer with dedicated knob and button controls.

Inputs 1 and 2 feature combo XLR/TRS 1/4" connectors for mic pres, line inputs, and instrument inputs. Inputs 3 and 4 share a set of stereo 1/4" connectors with a stereo RCA RIAA phono preamp with ground for connecting a turntable. Speaker output A and B offer two sets of stereo 1/4" outputs for connecting two sets of monitors, while the two dedicated headphone outputs feature independent volume control and offer both 1/4" and 1/8" jacks. The digital ADAT lightpipe ports add an additional eight channels of input and output, while two coaxial connectors offer S/PDIF and wordclock I/O.

Connect any hardware MIDI device with the included MIDI cable adapters, or use the USB hub to connect controllers and other devices. The dedicated micro-USB port offers connections to your computer, tablet, or phone. The AudioFuse offers 3 ms round trip latency into and out of your computer, while the direct monitoring function allows for the blending of a recorded track with the direct signal for true zero latency performance. The built-in talkback microphone allows communication from the control room to musicians in a remote studio. The output control section controls output level with VU meters, audio mix selection, mono mode, output dimming, mute, and speaker A/B selection.
If you own a Arturia audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arturia AudioFuse 14x14 Audio Interface (Silver) 810101_S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Arturia AudioFuse 14x14 Audio Interface (Silver) 810101_S:
Specifications
    Connections Analog
    Inputs 1/2 (Mic/Line/Instrument): 2 x Combo XLR/TRS 1/4" / 6.35 mm
    Inputs 3/4 (Phono/Line): 2 x RCA + ground, 2 x TRS 1/4" / 6.35 mm
    Inserts 1/2 (Send and Return) 2 x TRS 1/4" / 6.35 mm
    Speaker Output A/B: 4 x TRS 1/4" / 6.35 mm
    Headphones: 2 x TRS 1/4" / 6.35 mm, 2 x TRS 1/8" / 3.5 mm

    Digital
    Wordclock / S/PDIF
    In/Out: 2 x coaxial
    ADAT I/O: 2 x ADAT optical
    Line / Instrument Inputs Line Input Impedance: 20 kOhm (symmetric), 10 kOhms (asymmetric)
    Instrument Input Impedance: 1.1 Mohms (asymmetric)
    Instrument Maximum Input Level: +10 dBu
    Frequency Response: 20 Hz to 20 kHz ±0.05 dB
    Line Inputs Gain Switch 0 dB
    THD+N @ -10 dB Gain: (TBA, work in progress)
    Dynamic Range @ -10 dB Gain, Insert Output Level: +18 dBu (127.5 dB A-weighted)
    THD+N @ 10dB Gain: (TBA, work in progress)
    Dynamic Range @ 10 dB Gain, Insert Output Level: +18 dBu (115 dB A-weighted)
    Maximum Input Level: >+24 dBu

    Gain Switch +20 dB
    THD+N @ 10 dB Gain: (TBA, work in progress)
    Dynamic Range @ 10 dB Gain, Insert Output Level: +18 dBu (106 dB A-weighted)
    THD+N @ 30 dB Gain: (TBA, work in progress)
    Dynamic Range @ 30 dB Gain, Insert Output Level: +18 dBu (106 dB A-weighted)
    Maximum Input Level: +8 dBu
    Microphone Preamplifier Input Impedance: 4 kOhms
    Signal-to-Noise Ratio (EIN): >129 dB, unweighted, (>131 dB A-weighted)
    Frequency Response: 20 Hz to 20 kHz ±0.05dB
    Gain Range: 18 dB to 72 dB
    THD+N (Unweighted): (TBA, work in progress)
    Dynamic Range Insert Output Level: +18 dBu (113 dB A-weighted)
    Line Output Output Impedance: (TBA, work in progress)
    Maximum Output Level: >+24 dBu
    Dynamic Range: 118 dB A-weighted
    THD+N: (TBA, work in progress)
    Inserts Output Impedance: (TBA, work in progress)
    Input Impedance: 10 kOhms (asymmetric)
    Maximum Output Level: +18 dBu
    Nominal Input Level: +14 dBu
    Enclosure Aluminum chassis
    Leather-covered top
    Compatibility USB interface with PC, Mac, iOS, Android & Linux compatibility
    Dimensions (L x W x H) 5.0 x 5.0 x 2.6" / 12.6 x 12.6 x 6.7 cm
    Weight 1.8 lb / 0.8 kg
