User manual Arturia MicroBrute Analog Synthesizer 540101

Operating instructions and pdf manual for use - Arturia MicroBrute Analog Synthesizer 540101 User manual, User manual Arturia MicroBrute Analog Synthesizer 540101, Arturia, MicroBrute, Analog, Synthesizer, 540101, Video


User manual for Arturia MicroBrute Analog Synthesizer 540101

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

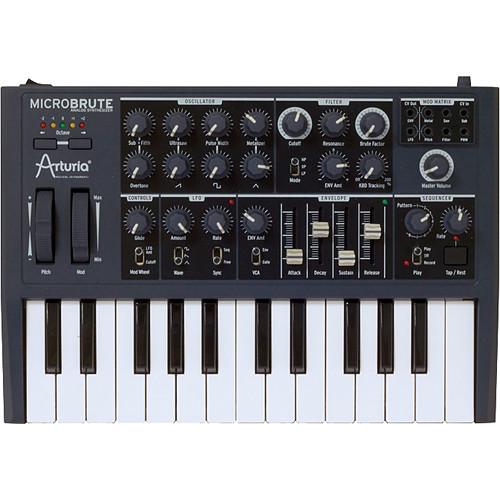

Arturia  MicroBrute Analog Synthesizer 540101
  • Manufacturer: Arturia
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Arturia
  • Settings and expert assistance
  • Contact Arturia service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD
We recommend checking out our discussion threads on the Arturia MicroBrute Analog Synthesizer 540101, which address similar problems with connecting and setting up Synthesizer Keyboards Arturia.



User manual for the Arturia MicroBrute Analog Synthesizer 540101

The user manual for the Arturia MicroBrute Analog Synthesizer 540101 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

The MicroBrute is a monophonic synthesizer keyboard from Arturia that features a 25-note mini keyboard and an all analog signal path. It also features a compact design and a multi-wave analog oscillator with mixable waveforms.

The MicroBrute's single analog oscillator, is capable of generating sawtooth, square and triangle wave shapes simultaneously and allows you to blend them together to create complex waveforms. It also allows you to add a -1 octave sub square wave into your sound, plus it features an "overtone" control for adding harmonics.

The synth also features a low-frequency oscillator (LFO) with switchable square, saw and sine waveforms and an adjustable rate. Its destination is set to modulate the pitch of the oscillator by default and it has a depth control for adjusting the amount of modulation.

The MicroBrute also has a built-in 64-step sequencer that allows you to input notes one at a time to create rhythmic patterns. It has an internal memory capable of storing up to different 8 patterns and the sequences can be backed up to your computer using the included editor software.
If you own a Arturia synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arturia MicroBrute Analog Synthesizer 540101 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Arturia  MicroBrute Analog Synthesizer 540101Download user manual for Arturia MicroBrute Analog Synthesizer 540101
(PDF file, 16.24 MB)
Additional parameters of the Arturia MicroBrute Analog Synthesizer 540101:
Keyboard 25-note minikey
Synthesizer Type Analog monophonic synthesizer
Polyphony Monophonic
Filter Steiner-Parker 2-pole multi-mode filter (low pass, band pass, high pass)
Brute factor control
Oscillator Type Analog voltage controlled oscillator
Oscillator Mixer Overtone sub/5th generator, sawtooth, square, triangle, audio in (on rear panel)
Oscillation Mode Pulse width modulation, Ultrasaw, Metalizer
LFO LFO with 3 waveforms (sine, sawtooth, square), clock syncable to arpeggiator (arpeg, or free)
Envelope Control ADSR envelope generator
Keyboard Tracking Yes, on VCF cutoff
Mod Wheel Yes, assignable to cutoff, or LFO amount
Pitch Wheel Yes, with selectable bend range via software
Octave Selector Yes, from -2 to +2 octaves
Analog Audio Input 1/4" analog audio input
Analog Audio Output 1/4" audio output
1/8" headphone output
CV In/Out Controls CV in jacks: pitch, filter, sub-harmonics, pulse width, metalizer, saw animator
CV out jacks: pitch, envelope, LFO
MIDI MIDI in with 5-pin DIN connector
USB MIDI in/out
Sequencer 8 memories
Up to 64 steps per memory
Tap tempo
Rate control
Step divisions (via software)
Trigger modes (via software)
MIDI Sync Yes
Construction Steel bottom panel
Power 12V DC 1A power supply
Dimensions 12.8 x 8.7 x 2.4" (325 x 221 x 60 mm)
Weight 3.86 (1.75 kg)
Packaging Info
Package Weight 5.75 lb
Box Dimensions (LxWxH) 16.5 x 10.1 x 3.2"
The user manual for the Arturia MicroBrute Analog Synthesizer 540101 can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Arturia users keep a unique electronic library for Arturia synthesizer keyboardss, where you can use our link to download the user manual for the Arturia MicroBrute Analog Synthesizer 540101.

The user manual lists all of the functions of the Arturia MicroBrute Analog Synthesizer 540101, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Arturia service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Arturia MicroBrute Analog Synthesizer 540101. User manuals are also available on the Arturia website under Pro Audio - Musical Instruments - Synthesizer Keyboards.
