User manual Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP

Operating instructions and pdf manual for use - Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP User manual, User manual Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP, Astatic, 2220VPW, Boundary, Microphone, White, 2220VPW, DS


User manual for Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP

Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP
  • Manufacturer: Astatic
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Boundary
  • Safety instructions
  • Startup and operation of the boundary
  • Tips for setting up your Astatic
  • Settings and expert assistance
  • Contact Astatic service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD

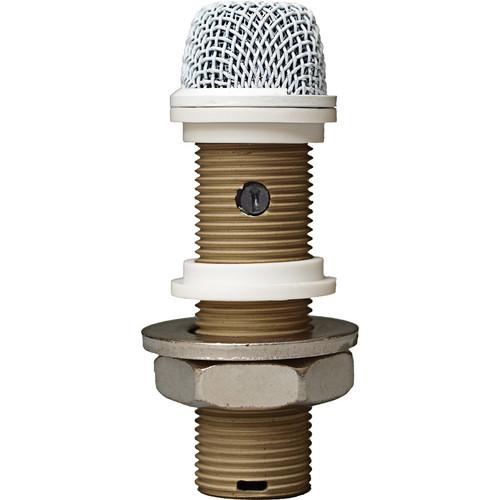

Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP
Click to enlarge image

We recommend checking out our discussion threads on the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP, which address similar problems with connecting and setting up Boundary Astatic.



User manual for the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP

The user manual for the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Boundary.

The 2220VPW Boundary Microphone from Astatic features a miniature button-microphone profile and a host of flexible features suited for professional conferencing, broadcasts, speeches, sermons and more. The 2220VPW features a wide frequency response and continuously variable polar pattern that allows users to set precise pick up patterns for any given scenario. The microphone is also impervious to noise caused by Radio Frequency (RF) interference from PDAs, cell phones, WiFi and more.
If you own a Astatic boundary and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP:
Specifications
    Transducer Condenser
    Polar Pattern Cardioid, Figure 8, Hypercardioid, Omnidirectional, Supercardioid, (Continuously Variable)
    Frequency Range 90 Hz to 17 kHz
    Equivalent Noise Level 18 dB A-Weighted
    Maximum SPL 120 dB SPL 1%
    Impedance 120 ohms
    Sensitivity 25 mV/PA
    Power Requirements 12 V, 24 V, 48 V
    Output Connectors 3-pin XLR
    Operating Current Consumption 4 mA
    General
    Length 3.35" (85 mm)
    Diameter 1.10" (28 mm)
    Packaging Info
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 11.0 x 10.0 x 3.0"
    The user manual for the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP can be downloaded in .pdf format if it did not come with your new boundary, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Astatic users keep a unique electronic library for Astatic boundarys, where you can use our link to download the user manual for the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP.

    The user manual lists all of the functions of the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP, all the basic and advanced features and tells you how to use the boundary. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Astatic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Astatic 2220VPW Boundary Microphone (White) 2220VPW - DSP. User manuals are also available on the Astatic website under Pro Audio - Installation Sound - Boundary.
