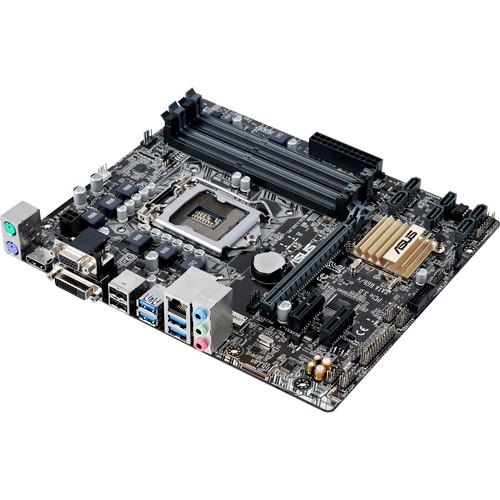

The B150M-A D3 Motherboard from ASUS is designed to fit in cases that support a Micro ATX form factor. The 9.2 x 7.9" B150M-A D3 supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA1151 socket, as well as the Intel B150 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (64 and 32-bit).
The Micro ATX form factor of the B150M-A D3 has 4 x DIMM slots that can support up to 64GB of non-ECC unbuffered DDR3 RAM, as well as Extreme Memory Profile (XMP) memory modules. The supported memory speeds are DDR3 1866 (OC), 1600, and 1333 MHz memory modules. The B150M-A D3 has a total of 6 x SATA III 6 Gb/s ports, 1 x PCIe 3.0/2.0 x16 slot (running at x16), 2 x PCIe 3.0/2.0 x1 slots, 6 x USB 3.0/2.0 ports (4 ports on the back panel), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 at mid-board), and 2 x PS/2 ports. Using the Realtek ALC887 codec, it can support 8-channel HD audio.
The B150M-A D3 has integrated Intel HD graphics support with 1 x HDMI port, 1 x DVI-D port, and 1 x VGA port. It can use up to 1,024MB of shared memory and also simultaneously supports three displays. Its HDMI port can support maximum resolutions of 4096 x 2160 @ 24 Hz and 2560 x 1600 @ 60 Hz, while both its DVI-D and VGA port can support a maximum resolution of 1920 x 1200 @ 60 Hz.
The B150M-A D3 has also been designed with electrostatic discharge (ESD) guards, LAN guard, overvoltage protection, DRAM overcurrent protection, DIGI+ VRM, a stainless-steel backplate, device compatibility for over 1,000 devices, UEFI BIOS, over 7,000 hours of testing, Fan Xpert 2+, AI Suite 3, and more. This motherboard is protected by a limited 3-year warranty and includes an I/O shield and 2 x SATA III 6 Gb/s cables.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS B150M-A D3 Motherboard B150M-A D3 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS B150M-A D3 Motherboard B150M-A D3:
Specifications
CPU
- Intel Socket 1151 for 6th Generation Core i7, i5, i3, Pentium, and Celeron processors - Supports Intel 14 nm CPU - Supports Intel Turbo Boost Technology 2.0
Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/RGB ports - Supports HDMI with a max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with a max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with a max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1,024 MB Supports up to 3 displays simultaneously
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 3.0/2.0 x1
Storage
Intel B150 chipset: 6 x SATA III 6 Gb/s ports
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller ASUS LAN Guard
Audio
Realtek ALC887 8-Channel High Definition Audio Codec (use a chassis with HD audio module in the front panel to support an 8-channel audio output) - Supports: Jack-detection, Front Panel Jack-retasking Audio Features: - LED-illuminated Design: Brighten up your build with the illuminated audio trace path - Audio Shielding: Helps ensure analog/digital separation and reduced multi-lateral interference - Dedicated Audio PCB Layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Japanese-made Audio Capacitors: Provide warm, natural, and immersive sound with strong clarity and fidelity
USB Ports
Intel B150 chipset: 6 x USB 3.0/2.0 ports (4 at the back panel) 6 x USB 2.0/1.1 ports (2 at the back panel, black, 4 at mid-board)
Features
ASUS 5x Protection II: - ASUS LANGuard - Up to 2.5x higher surge tolerance - ASUS Overvoltage Protection - Circuit-protecting power design - ASUS DIGI+ VRM - 6 Phase digital power design - ASUS DRAM Overcurrent Protection - Helps prevent damage from short circuits - ASUS Stainless-Steel Back I/O - 3x corrosion-resistance for improved durability
ASUS EPU: - EPU
ASUS Features: - AI Suite 3 - Ai Charger - Anti-Surge - ESD Guards - USB 3.0 Boost - Mobo Connect - PC Cleaner
ASUS Quiet Thermal Solution: - Fanless Design Heat-sink solution - ASUS Fan Xpert 2+
ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode - Push Notice
ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM
Media Streamer
Operating System Support
Windows 10 (64-bit), 8.1 (64-bit), and 7 (32 and 64-bit)
Back I/O Ports
1 x PS/2 keyboard port (purple) 1 x PS/2 mouse port (green) 1 x HDMI 1 x DVI-D 1 x VGA (D-Sub) 1 x LAN (RJ-45) port 4 x USB 3.0 Type-A (blue) 2 x USB 2.0 3 x Audio jacks
Internal I/O Ports
1 x USB 3.0 connector support an additional 2 x USB 3.0 ports 2 x USB 2.0 connectors support an additional 2 x USB 2.0 ports 1 x TPM header 1 x LPT header 1 x COM port connector 6 x SATA III 6 Gb/s connectors 1 x CPU Fan connector (1 x 4-pin) 2 x Chassis Fan connectors (2 x 4-pin) 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x Front panel audio connector (AAFP) 1 x System panel 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
