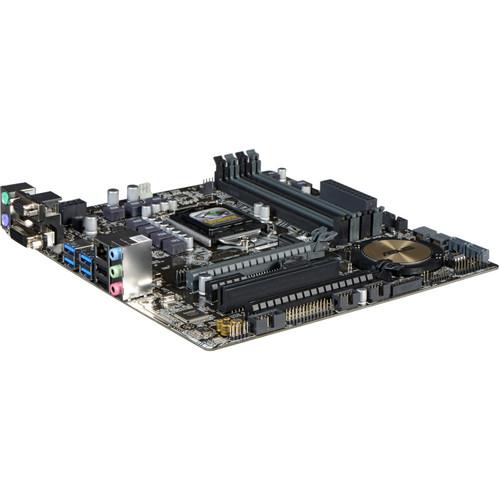

The H170M-E D3 Motherboard from ASUS is designed to fit in cases that support a uATX form factor. The 9.6 x 8.8" H170M-E D3 supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA1151 socket, as well as the Intel H170 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (64 and 32-bit).
The uATX form factor of the H170M-E D3 has 4 x DIMM slots that can support up to 64GB of non-ECC unbuffered DDR3 RAM, as well as Extreme Memory Profile (XMP) memory modules. The supported memory speeds are DDR3 1866 (OC), 1600, and 1333 MHz memory modules. The H170M-E D3 has a total of 4 x SATA III 6 Gb/s ports, 1 x M.2 Socket 3, 1 x PCIe 3.0/2.0 x1 slot (running at x16), 1 x PCIe 3.0/2.0 x1 slot (running at x4), 1 x PCIe 3.0/2.0 x1 slot, 1 x PCI slot, 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports at mid-board), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 at mid-board), and 2 x PS/2 ports. Using the Realtek ALC887-VD2 codec, it can support 8-channel HD audio.
The H170M-E D3 has integrated Intel HD graphics support with 1 x HDMI port, 1 x DVI-D port, and 1 x VGA port. It can use up to 1,024MB of shared memory and also supports Intel InTru 3D, Intel Quick Sync Video, Intel Clear Video HD, and Intel Insider. Its HDMI port can support maximum resolutions of 4096 x 2160 @ 24 Hz and 2560 x 1600 @ 60 Hz, while both its DVI-D and VGA port can support a maximum resolution of 1920 x 1200 @ 60 Hz. It also has multi-GPU support for AMD 2-Way CrossFireX technology and can simultaneously support three displays.
The H170M-E D3 has also been designed with electrostatic discharge (ESD) guards, LAN guard, overvoltage protection, DRAM overcurrent protection, DIGI+ VRM, a stainless-steel backplate, device compatibility for over 1,000 devices, UEFI BIOS, over 7,000 hours of testing, Fan Xpert 2+, AI Suite 3, RAID 0, 1, 5, and 10, and more. This motherboard is protected by a limited 3-year warranty and includes an I/O shield, 2 x SATA III 6 Gb/s cables, and an M.2 screw package.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS H170M-E D3 Motherboard H170M-E D3 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS H170M-E D3 Motherboard H170M-E D3:
Specifications
CPU
- Intel Socket 1151 for 6th Generation Core i7, i5, i3, Pentium, and Celeron processors - Supports Intel 14 nm CPU - Supports Intel Turbo Boost Technology 2.0
Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/RGB ports - Supports HDMI with a max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with a max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with a max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1,024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, and Insider Supports up to 3 displays simultaneously
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x1 (x16 mode, gray) 1 x PCIe 3.0/2.0 x1 (max at x4 mode, black) 1 x PCIe 3.0/2.0 x1 1 x PCI
Storage
Intel H170 chipset: 4 x SATA III 6 Gb/s ports, gray 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIe mode) Supports RAID 0, 1, 5, 10 Supports Intel Smart Response Technology
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller
Audio
Realtek ALC887-VD2 8-Channel High Definition Audio Codec - Supports: Jack-detection, Front Panel Jack-retasking Audio Features: - Audio Shielding: Helps ensure analog/digital separation and reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Japanese-made audio capacitors: Provide warm, natural, and immersive sound with strong clarity and fidelity
USB Ports
Intel H170 chipset: 8 x USB 3.0/2.0 ports (4 at the back panel, blue, 4 at mid-board) 6 x USB 2.0/1.1 ports (2 at the back panel, black, 4 at mid-board)
Features
ASUS EPU: - EPU
ASUS Features: - AI Suite 3 - Ai Charger - Anti-Surge - Low EMI Solution - USB 3.0 Boost - Mobo Connect - PC Cleaner
ASUS Quiet Thermal Solution: - Fanless Design Heat-sink solution - ASUS Fan Xpert 2+
ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice
ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM
Media Streamer
Operating System Support
Windows 10 (64-bit), 8.1 (64-bit), and 7 (32 and 64-bit)
Back I/O Ports
1 x PS/2 keyboard port (purple) 1 x PS/2 mouse port (green) 1 x HDMI 1 x DVI-D 1 x VGA (D-Sub) 1 x LAN (RJ-45) port 4 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jacks
Internal I/O Ports
2 x USB 3.0 connectors support an additional 4 x USB 3.0 ports (19-pin, blue) 2 x USB 2.0 connectors support an additional 4 x USB 2.0 ports 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (supports both SATA & PCIe SSDs) 1 x TPM header 1 x LPT header 4 x SATA III 6 Gb/s connectors 1 x CPU Fan connector (1 x 4-pin) 2 x Chassis Fan connectors (2 x 4-pin) 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12 V Power connector 1 x Front panel audio connector (AAFP) 1 x System panel 1 x Clear CMOS jumper 1 x 14-1 pin TPM connector
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
