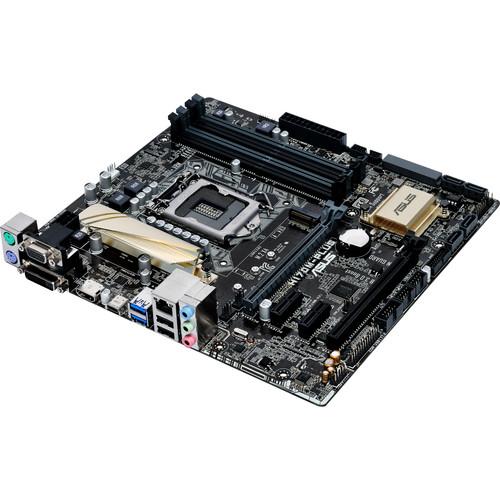

The H170M-PLUS/CSM Motherboard from ASUS is designed to fit in cases that support a Micro ATX form factor. The 9.60 x 8.95" H170M-PLUS/CSM supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA1151 socket, as well as the Intel H170 Express chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (64 and 32-bit).
The Micro ATX form factor of the H170M-PLUS/CSM has 4 x DIMM slots that can support up to 64GB of non-ECC unbuffered DDR4 2133 MHz RAM, as well as dual channel memory architecture and Extreme Memory Profile (XMP) memory modules. The H170M-PLUS/CSM has a total of 6 x SATA III 6 Gb/s ports, 1 x SATA Express port, 1 x M.2 Socket 3, 1 x PCIe 3.0/2.0 x16 slot (running at x16), 1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode), 2 x PCIe 3.0/2.0 x1 slots, 1 x 5 Gb/s USB Type-C port (3A power output supported), 6 x USB 3.0/2.0 ports (4 ports mid-board, 2 x Type-A ports at the back panel), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 at mid-board), and 2 x PS/2 ports. Using the Realtek ALC887 codec, it can support 8-channel HD audio.
The H170M-PLUS/CSM has integrated Intel HD graphics support with 1 x HDMI port, 1 x DVI-D port, and 1 x VGA port. It can use up to 512MB of shared memory and also simultaneously supports three displays. Its HDMI port can support maximum resolutions of 4096 x 2160 @ 24 Hz and 2560 x 1600 @ 60 Hz, while both its DVI-D and VGA port can support a maximum resolution of 1920 x 1200 @ 60 Hz. It also supports AMD CrossFireX Technology.
The H170M-PLUS/CSM has also been designed with electrostatic discharge (ESD) guards, LAN guard, overvoltage protection, DRAM overcurrent protection, DIGI+ VRM, a stainless-steel backplate, UEFI BIOS, Fan Xpert 2+, AI Suite 3, RAID 0, 1, 5, and 10, and more. This motherboard is protected by a limited 3-year warranty and includes an I/O shield, an M.2 screw package, and 2 x SATA III 6 Gb/s cables.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS H170M-PLUS/CSM Motherboard H170M-PLUS/CSM in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS H170M-PLUS/CSM Motherboard H170M-PLUS/CSM:
Specifications
CPU
- Intel Socket LGA1151 for 6th Generation Core i7, i5, i3, Pentium, and Celeron processors - Supports Intel 14 nm CPU - Supports Intel Turbo Boost Technology 2.0
Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/RGB ports - Supports HDMI with a max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with a max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with a max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB Supports Intel InTru 3D, Intel Quick Sync Video, Intel Clear Video HD Technology, and Intel Insider Supports up to 3 displays simultaneously
Expansion Slots
1 x PCI Express 3.0/2.0 x16 slot (at x16) 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices) 2 x PCI Express 3.0/2.0 x1 slots
Storage
Intel H170 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 14 support - 1 x SATA Express port (compatible with 2 x SATA III 6 Gb/s ports) - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) - 6 x SATA III 6 Gb/s ports (gray, 2 x from SATA Express) - Supports Intel Smart Response Technology (this functionality depends on the installed CPU)
LAN
Intel I219-V Gigabit LAN - Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Audio
Realtek ALC887 8-Channel High Definition Audio Codec - Supports jack-detection and front panel jack-retasking - Audio Shielding: Helps ensure analog/digital separation and reduced multi-lateral interference - Dedicated Audio PCB Layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Japanese-made Audio Capacitors: Provides warm, natural, and immersive sound with strong clarity and fidelity
USB Ports
Intel H170 Express Chipset - supports ASUS USB 3.0 Boost - 6 x USB 3.0/2.0 ports (4 ports at mid-board; 2 ports at the back panel, blue, Type A) - 1 x USB 5 Gb/s Type C port (supports 3 A power output) - 6 x USB 2.0/1.1 ports (4 ports mid-board; 2 ports at the back panel)
Features
ASUS 5x Protection II: - ASUS LANGuard - Up to 2.5x higher surge tolerance - ASUS Overvoltage Protection - Circuit-protecting power design - ASUS DIGI+ VRM - 4+2+1 Phase digital power design - ASUS DRAM Overcurrent Protection - Helps prevent damage from short circuits - ASUS Stainless-Steel Back I/O - Up to 3x corrosion-resistance for improved durability
M.2 Onboard - Up to 32 Gb/s data transfer speeds
ASUS Fan Xpert 2+ - Cooling and quietness
ASUS EPU: - EPU
PC Cleaner - A user-friendly method to eliminate unnecessary files
UEFI BIOS - Advanced options with a fast response time
USB 3.0 Boost - Features fast USB 3.0 transmission speeds
Audio Features - Realistic audio
Media Streamer - Pipe music or movies from your PC to a Smart TV - The Media Streamer app is available for portable smartphones and tablets. It supports iOS 7 and Android 4.0 systems
ASUS Features: - Ai Charger - AI Suite 3 - ASUS Disk Unlocker featuring 3TB + HDD support - Anti Surge
ASUS Quiet Thermal Solution: - Fanless Design Heat-sink solution - ASUS Fan Xpert 2+
ASUS EZ DIY: - Push Notice: Monitor your PC' status with smart devices in real time - ASUS UEFI BIOS EZ Mode: Features a user-friendly graphical interface, the ASUS O.C. Tuner, ASUS CrashFree BIOS 3, and ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM
Other Features: Supports Intel SBA
ASUS Quiet Thermal Solution
Quiet Thermal Design: - ASUS Fan Xpert 2+ - Fanless Design: PCH Heat-sink & MOS Heat-sink solution
Back I/O Ports
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI 1 x DVI-D 1 x VGA (D-Sub) 1 x LAN (RJ-45) port 2 x USB 3.0/2.0 Type-A ports (blue) 1 x USB 5 Gb/s Type-C port 2 x USB 2.0/1.1 3-Jack 8-Channel Audio I/O ports
Internal I/O Ports
2 x USB 3.0/2.0 connectors support an additional 4 USB ports (19-pin) 2 x USB 2.0/1.1 connectors support an additional 4 USB ports 6 x SATA III 6 Gb/s connectors 1 x SATA Express connector (compatible with 2 x SATA III 6 Gb/s ports 1 x M.2 Socket 3 1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control* 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector 1 x System panel connector** 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12 V Power connector 1 x COM header 1 x LPT connector 1 x TPM connector 1 x Clear CMOS jumper
* The CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically ** The chassis intrusion header is built into the system's panel connector and is only supported on the H170M-PLUS
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Operating System Support
Windows 10 (64-bit), 8.1 (64-bit), and 7 (32 and 64-bit)
Form Factor
Micro ATX Form Factor 9.60 x 8.95" / 24.38 x 22.73 cm
