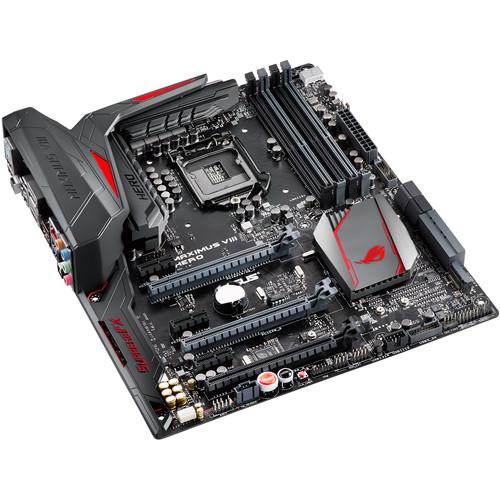

The Maximus VIII Hero ATX Motherboard from ASUS comes with an LGA1151 socket and an Intel Z170 chipset to support 6th-generation Intel processors. It has four DIMM slots that allow you to install up to 64GB of DDR4 RAM. ASUS also provides you with the tools that overclock these RAM modules up to 3800 MHz and load up your favorite apps to them for quicker access. To fully utilize SSDs above 500 MB/s, it offers an M.2 and two SATA Express connectors that run on the PCI Express lanes. Furthermore, you can use integrated Intel HD graphics and the motherboard's DisplayPort and HDMI ports for visuals or install up to three optional dedicated graphics cards.

This Republic of Gamers motherboard gives you features to enhance your components. You can tweak the delivery of power to the processor and increase its base clock frequency up to 400 MHz. To keep your system stable, ASUS offers Fan Expert 3 that provides onboard thermal sensors and utility software to manage your cooling fans and water cooling solutions efficiently. Additionally, KeyBot II upgrades your keyboard by recording macros to the keyboard's F1 to F10 keys.

The Maximus VIII Hero motherboard comes outfitted with three PCI Express 3.0 x16 and three PCI Express x1 slots. It comes built with ROG SupremeFX 2015 that offers immersive sounds through five audio jacks to complete the multimedia experience. Networking is supported by an Intel I219V Gigabit controller. To quickly transfer data to external drives, it comes with 10 Gb/s USB 3.1 type-A and type-C ports. It also has four SATA III 6 Gb/s, two USB 3.0, four USB 2.0 ports along with a single PS/2 keyboard/mouse combo port.
If you own a ASUS motherboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ASUS Maximus VIII Hero ATX Motherboard MAXIMUS VIII HERO in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS Maximus VIII Hero ATX Motherboard MAXIMUS VIII HERO:
Specifications
Processor Supported Intel Socket 1151 for 6th Generation Core i7, Core i5, Core i3, Pentium, Celeron processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset Intel Z170
Form Factor ATX
Memory 64 GB max
4 x DIMM DDR4 3800(O.C.), 3733(O.C.), 3600(O.C.), 3500(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000 (O.C.), 2800(O.C.), 2666(O.C.), 2400(O.C.), 2133(O.C.) MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphics Integrated Intel HD Graphics supported
Supports HDMI with max. resolution of 4096 x 2160 @ 24 Hz
Supports DisplayPort 1.2 with max. resolution of 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Multi-GPU Support Supports NVIDIA Quad-GPU SLI technology
Supports AMD 3-Way CrossFireX technology
Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, black)
3 x PCIe 3.0/2.0 x1
Storage Intel Z170 chipset
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supported (both SATA & PCIE mode)
2 x SATA Express ports
6 x SATA 6 Gb/s ports, gray, 4 ports from two SATA Express
Supports Raid 0, 1, 5, 10
Intel Rapid Storage Technology supported
Supports Intel Smart Response Technology

ASMedia ASM1061 controller
2 x SATA 6 Gb/s ports, black
LAN Intel I219V Gigabit LAN controller, GameFirst technology
Intel LAN dual interconnect between the integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
Audio ROG SupremeFX 2015 8-Channel high definition audio CODEC
- Supports jack-detection, multi-streaming, front panel jack-retasking
- SupremeFX Shielding technology
- ESS ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2 Vrms audio OP AMP
USB Intel Z170 chipset
6 x USB 3.0 (2 x USB ports at back panel, blue, 4 x headers at mid-board)
8 x USB 2.0 (4 x USB ports at back panel, black, 4 x headers at mid-board)

ASMedia USB 3.1 controller
1 x USB 3.1 port at back panel (black, type-C)
1 x USB 3.1 port at back panel (red, type-A)
Supported Features OC Design - ASUS PRO Clock Technology
- Full BCLK range for overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Tuning key consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Exclusive Features:
- MemOK
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache
Audio
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
Start Button
Reset Button
LN2 Mode
Extreme Engine Digi+:
- MicroFine Alloy Chokes
- NexFET Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features:
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Operating Systems Supported Windows 10 64-bit
Windows 8.1 64-bit
Windows 7 32/64-bit
Back I/O Ports 1 x PS/2 keyboard/mouse combo port
1 x DisplayPort
1 x HDMI
1 x LAN (RJ-45)
1 x USB 3.1 (black) type-C
1 x USB 3.1 (red) type-A
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jacks
1 x USB BIOS Flashback button
Internal I/O Ports 1 x AAFP connector
2 x USB 3.0 connectors support additional 4 x USB 3.0 ports
2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
2 x SATA Express connectors, gray, compatible with 4 x SATA 6 Gb/s ports
1 x M.2 Socket 3 with M key design, type 2242/2260/2280/22110 storage devices supported (Supports both SATA & PCIE SSD)
4 x SATA 6 Gb/s connectors
1 x CPU fan connector (4-pin)
1 x CPU OPT fan connector (4-pin)
4 x Chassis fan connectors (4-pin)
1 x Thunderbolt header
1 x 24-pin EATX power connector
1 x 8-pin ATX 12 V power connector
1 x System panel (Q-connector)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x MemOK button
1 x Thermal sensor connector
1 x Power-on button
1 x Reset button
1 x Clear CMOS button
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper
1 x ROG extension (ROG_EXT) header
1 x 14-1 pin TPM connector
BIOS 128 Mb Flash ROM
UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Dimensions 12.0 x 9.6" / 30.5 x 24.4 cm
Packaging Info
Package Weight 4.65 lb
Box Dimensions (LxWxH) 13.15 x 11.26 x 3.071"
