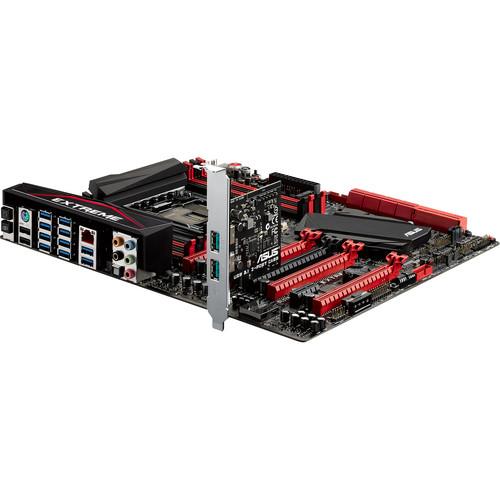

The ASUS Rampage V Extreme/U3.1 Extended ATX Motherboard features an LGA2011 v3 socket that supports 40-lane Broadwell processors and supports DDR4 RAM technologies, which require less power and deliver faster speeds. Along with the motherboard, ASUS includes a USB expansion card with two USB 3.1 type A ports that are twice as fast as USB 3.0. In addition, an ASUS OC panel lets you easily monitor your computer's status as well as optimize its performance without messing with the BIOS, operating system, or software utilities. This panel can be installed inside a 5.25" bay to offer some overclocking abilities or used externally to provide extreme setting adjustments.
The Rampage V Extreme motherboard features eight DIMM slots that can hold a total of 64GB of DDR4 RAM chips. It also has eight SATA 6 Gb/s connectors for internal hard drives along with two SATA Express interfaces and an M.2 slot to support the fast transfer speeds of SSDs. For PCIe expansion, there are four PCIe 3.0/2.0 x16 slots, one PCIe 2.0 x16 slot (x4 mode), and one PCIe 2.0 x1 slot. By featuring four PCIe x16 slots, you can link up to four dedicated graphics cards utilizing SLI/CrossFireX technologies. Additionally, it is outfitted with a 3T3R 802.11ac Wi-Fi that provides reliable connectivity with optimal transfer speeds.
This motherboard is equipped with ten USB 3.0 ports, two USB 2.0 ports, one PS/2 keyboard/mouse combo port, five audio jacks, one optical S/PDIF digital audio out port, and one clear CMOS button. Moreover, it features Digi+ IV, SupremeFX, multiple thermal sensors, and other technologies to enhance your system.
