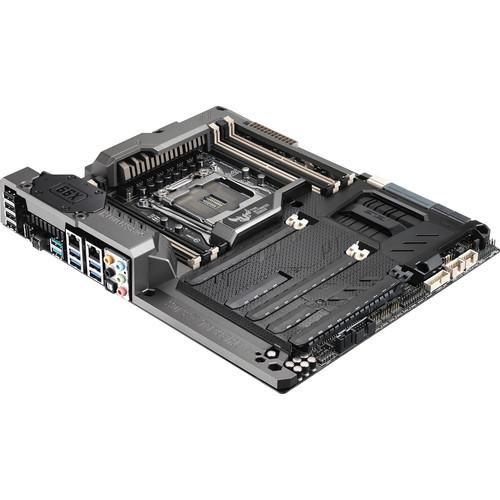

The SABERTOOTH TUF X99 USB 3.1 Motherboard from ASUS is designed to fit in standard sized ATX cases. The 12.0 x 9.6" SABERTOOTH TUF X99 supports Intel Core i7 processors, the LGA2011-v3 socket, and the Intel X99 chipset. It has been designed to deliver power and speed to Internet browsing, extreme gaming, CAD software, and more. It also features a strengthened backplate and a flexible cooling system for increased stability. This motherboard is compatible with 32 and 64-bit editions of Windows 8.1, 8, and 7 operating systems. It also supports USB 3.1 which can achieve data transfer rates of up to 10 Gb/s.
The ATX form factor of the SABERTOOTH TUF X99 can support 64GB of RAM and comes with 8 x DIMM slots that can each hold 8GB of 288-pin DDR4 2400/2133 MHz non-ECC, unbuffered memory. The SABERTOOTH TUF X99 also has a total of 8 x SATA III 6 Gb/s ports, 1 x SATA Express connector, 1 x M.2 connector that only supports PCIe SSDs, 2 x USB 3.1/3.0/2.0 ports, 8 x USB 3.0 ports, 8 x USB 2.0/1.1 ports, 5 x audio jacks, 1 x S/PDIF out, and 2 x Gigabit LAN ports. To provide data redundancy, RAID 0, 1, 5, and 10 modes are supported and PCIe expansion is dependent on whether a 40 or 28-lane CPU is installed. When a 40-lane CPU is installed, users will have access to three PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) lanes. When a 28-lane CPU is installed, users will have access to three PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x4), one PCIe 2.0 x4 (x2 mode), and one PCIe 2.0 x1 lanes. While this motherboard does not have any video out ports, it does have multi-GPU support for NVIDIA Quad-GPU SLI technology, NVIDIA 3-Way SLI technology, AMD Quad-GPU CrossFireX technology, and AMD 3-Way CrossFireX technology.
The SABERTOOTH TUF X99 is designed to be a complete solution provider. To this end, it undergoes server-stability tests of over 7,000 hours and compatibility checks with over 1,000 devices. To help it achieve these standards, this motherboard is built with Thermal Armor and a flow valve to help optimize airflow and boost heat dissipation, as well as Thermal Radar 2, which is customized fan tuning to help tweak system cooling. TUF ICe is a microchip that helps deliver precise temperature monitoring and fan controls, and the TUF Fortifier helps improve rigidity and cooling behind the board, to help ensure that the motherboard won't collapse under heavy components. The TUF Fortifier also includes a thermal pad to help direct heat away from the VRM and other components.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS SABERTOOTH TUF X99 USB 3.1 Motherboard SABERTOOTH X99 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS SABERTOOTH TUF X99 USB 3.1 Motherboard SABERTOOTH X99:
Specifications
CPU
Intel Socket LGA 2011-v3 Core i7 Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0, depending on the CPU type
Chipset
Intel X99
Memory
8 x DIMM Max. 64 GB of DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
40-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
28-Lane CPU 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) 1 x PCIe 2.0 x4 (x2 mode) 1 x PCIe 2.0 x1
Storage
Intel Core i7 Processors 1 x M.2 Socket 3, gray with M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIE SSDs only)
Intel X99 Chipset 1 x SATA Express port compatible with 2 x SATA III 6.0 Gb/s ports 8 x SATA 6Gb/s ports Supports RAID 0, 1, 5, and 10 Supports Intel Smart Response Technology and Intel Rapid Recovery Technology
LAN
Intel I218V, 1 x Gigabit LAN Controller Realtek 8111GR, 1 x Gigabit LAN Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance ASUS Turbo LAN Utility
Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
Audio Features - Absolute Pitch 192 kHz/ 24-bit True BD Lossless Sound - Optical S/PDIF out port at back panel - BD Audio Layer Content Protection - Audio Shielding: Helps ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Helps provides the highest-quality sound for headphones and speakers - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Top notch audio sensation delivers according to the audio configuration - Separate layers for the left and right track, helping to ensure both channels deliver equal sound quality
USB Ports
Intel X99 chipset 8 x USB 3.0 ports (4 at the back panel, 4 at mid-board) 8 x USB 2.0/1.1 ports (4 at the back panel, 4 at mid-board)
ASMedia USB 3.1 controller 2 x USB 3.1/3.0/2.0 ports (2 at back panel, teal blue)
Special Features
TUF Features TUF ENGINE! Power Design - 8 +2 Digital Phase Power Design - TUF Components (Choke, Cap., & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility
Safe & Stable! Guardian Angel "We Got Your Back!" Shape Force - TUF Fortifier - Dust Defenders with connector covers and back I/O dust filter - TUF ESD Guards 2
Operating System Support
Windows 8.1, 8, and 7 (32 & 64-bit)
Back I/O Ports
2 x LAN (RJ-45) ports 2 x USB 3.1 ports (teal blue) 4 x USB 3.0 ports (blue) 4 x USB 2.0 ports 1 x Optical S/PDIF out 5 x Audio jacks 1 x USB BIOS Flashback Button
Internal I/O Ports
1 x AAFP connector 2 x USB 3.0 connectors support and additional 4 USB 3.0 ports (19-pin) 2 x USB 2.0 connectors support an additional 4 USB 2.0 ports 1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports 1 x TPM header 1 x COM port connector 1 x CPU Fan connector (1 x 4-pin) 1 x CPU OPT Fan connector (1 x 4-pin) 1 x CPU fan with PWM control 4 x Chassis Fan connectors (4 x 4-pin) 5 x Assistant Fan connectors (5 x 4-pin) 1 x S/PDIF out header 1 x Thunderbolt header 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x 4-pin ATX 12V Power connector 1 x System panel (Q-Connector) 1 x Chassis Intrusion connector 1 x MemOK! button 3 x Thermal sensor connectors 1 x Clear CMOS jumper
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
