User manual ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H

Operating instructions and pdf manual for use - ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H User manual, User manual ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H, ASUS, VE228H, 21.5, Widescreen, LED, Backlit, LCD, Mon


User manual for ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
ASUS VE228H 21.5
  • Manufacturer: ASUS
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ASUS
  • Settings and expert assistance
  • Contact ASUS service
  • Troubleshooting
  • Warranty information
  • Price: 109 USD
We recommend checking out our discussion threads on the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H, which address similar problems with connecting and setting up Computer Monitors ASUS.



User manual for the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H

The user manual for the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

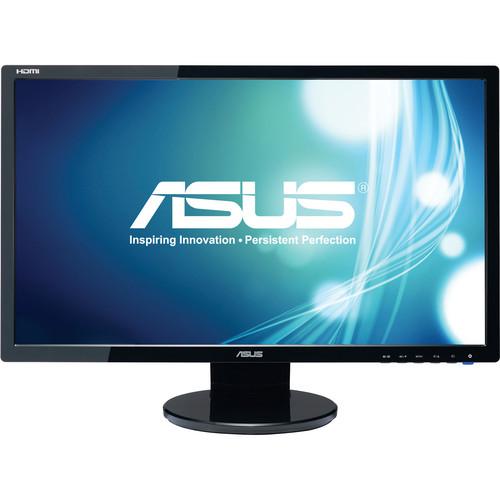

The VE228H 21.5" LCD Widescreen Computer Display from ASUS is a desktop computer monitor with a 16:9 aspect ratio. The display features a modern design, highlighted by a glossy black frame and smooth desktop stand. Built-in stereo speakers provide audio output.

The display features a native resolution of 1920 x 1080. It also boasts an amazing 10,000,000:1 dynamic contrast ratio, 250cd/m² brightness rating, 5ms response time, support for 16.7 million colors, and 170°/160° viewing angles. It can connect to a computer via VGA, DVI-D, or HDMI.
If you own a ASUS computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H:
Specifications
    Panel/Display
    Type LCD
    Viewable Size 21.5"
    Brightness 250cd/m²
    Contrast Ratio 10,000,000:1 (Dynamic)
    Viewing Angle 170° horizontal, 160° vertical
    Pixel Dot Pitch 0.248mm
    Response Time 5ms
    Panel Life Not Specified by Manufacturer
    Colors Supported 16.7 million
    68% NTSC
    Signal
    Internal Interface Analog/Digital
    Frequency Horizontal: 30-83kHz
    Vertical: 50-76Hz
    Sync Type Not Specified by Manufacturer
    Resolution 1920 x 1080
    Input/Output Connectors
    Analog 1x VGA
    Digital 1x DVI-D (HDCP)
    1x HDMI (1.3)
    Audio Input 1x 1/8" (3.5mm)
    Headphone Jack 1x 1/8" (3.5mm)
    Hub Ports None
    Speakers 2x 1W Stereo RMS
    Mount VESA (100 x 100mm)
    Controls
    Buttons SPLENDID Video Preset Mode Selection, Auto Adjustment, Brightness Adjustment, Volume Adjustment, Input Selection, Power
    On-Screen Display Yes
    Auto Configuration Yes
    Touch Screen No
    Tilt/Swivel Range Tilt: -5-20°
    Swivel: None
    Pivot: None Height: None
    Security Kensington Lock Slot
    Compliant Standards Energy Star 5.0, CEL, UL/cUL, CB, CE, EuP, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, PSB, J-MOSS, WEEE, Windows Vista & Windows 7 WHQL
    System Requirements Computer with VGA, DVI-D, or HDMI output
    Power Requirements AC: 100-240VAC
    Consumption: <30W (Typical), <1W (Power Saving Mode)
    Environmental Requirements None
    Dimensions (WxHxD) 20.2 x 15.2 x 7.9" (51.3 x 38.6 x 20.1cm)
    Weight 9 lb (4.1kg)
    Packaging Info
    Package Weight 11.8 lb
    Box Dimensions (LxWxH) 22.5 x 18.7 x 5.9"
    The user manual for the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ASUS users keep a unique electronic library for ASUS computer monitorss, where you can use our link to download the user manual for the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H.

    The user manual lists all of the functions of the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ASUS service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VE228H. User manuals are also available on the ASUS website under Computers & Solutions - Monitors & Displays - Computer Monitors.
